Is the Grooved end, carbon steel, CNG type compatible with both rubber and plastic industrial hoses and installable with straps, clamps, or CNFL crimping sleeves?

Yes. The Grooved end, carbon steel, CNG type is specifically designed for rubber and plastic industrial hoses and features a "tail" for secure hose engagement. It can be installed using straps, clamps, or special CNFL type crimping sleeves, making it compatible with all three fastening methods. Material: carbon steel.

Can Grooved end, carbon steel, CNG type be used with high-pressure rubber or plastic hoses requiring crimped connections?

Yes - Grooved end, carbon steel, CNG type can be used with high-pressure rubber or plastic hoses that require crimped connections. It is specifically designed with a âtailâ for hoses and supports installation by straps, clamps, or special CNFL type crimping sleeves. Ensure the CNFL crimping sleeves and hose assemblies are rated for the required pressure, match hose and tail diameters, and follow manufacturer torque/crimp specifications and pressure testing procedures to guarantee a safe, leak-free connection.

What maintenance is required for the Grooved end, carbon steel, CNG type when used with rubber or plastic hoses?

Maintenance for the Grooved end, carbon steel, CNG type when used with rubber or plastic hoses: - Regular visual inspection: check the grooved end, tail and hose connection for corrosion, cracks, deformation, wear, or damage. Inspect hose cover, clamps/straps or CNFL crimping sleeve for signs of slippage, bulging, fraying or abrasion. - Corrosion control: carbon steel requires protection against rust. Clean dirt and moisture from the Grooved end, carbon steel, CNG type and apply appropriate protective coatings or rust inhibitors as recommended for the service environment. Remove surface rust and recoat if protective layer is compromised. - Fastener and joint checks: verify straps, clamps or CNFL crimping sleeve remain correctly tightened and seated. Re-torque or re-crimp per manufacturerâs instructions after initial service and periodically. Ensure clamps are not over-tightened (which can damage the hose) or under-tightened (which can leak or slip). - Seal integrity: confirm there are no leaks at the hose-to-tail interface. For fluid or gas service, perform leak tests after installation and after maintenance events. - Compatibility and degradation monitoring: rubber and plastic hoses can age, swell or harden when exposed to chemicals, heat or UV. Monitor hose material condition adjacent to the Grooved end, carbon steel, CNG type and replace the hose if signs of chemical attack, stiffness, cracking or softening appear. - Mechanical support and alignment: ensure proper hose routing to avoid excessive bending, tensile load or vibration at the Grooved end, carbon steel, CNG type. Use supports or restraints to minimize movement that can accelerate wear or loosen fittings. - Scheduled maintenance: follow a periodic maintenance schedule based on service conditions (pressure, temperature, media, duty cycle). Record inspections, torque/crimp readings and replacements. - Replacement criteria: replace the Grooved end, carbon steel, CNG type if grooves are worn, tail is deformed, or corrosion compromises strength; replace hose or clamps/sleeves if damage, leakage or loss of clamping integrity is observed. - Cleanliness: keep the joint area free of debris and contaminants that could cause abrasion or conceal defects. Adhere to manufacturer installation and maintenance instructions for the Grooved end, carbon steel, CNG type, clamps and CNFL crimping sleeves; follow applicable safety standards and pressure-system procedures during inspection and maintenance.

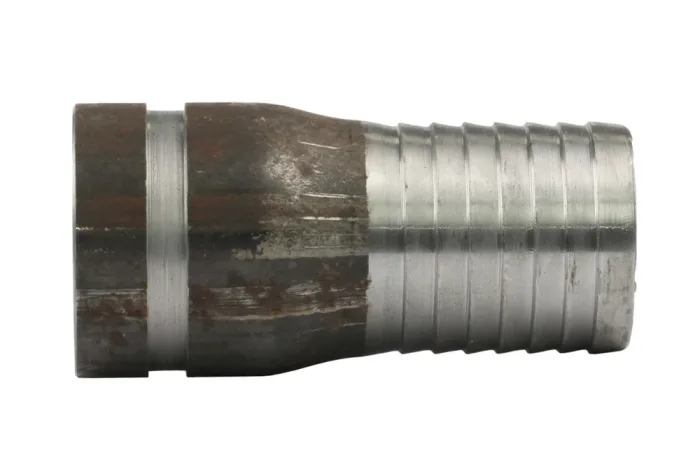

Grooved fitting, carbon steel, type CNG

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

Grooved fitting type CNG made of carbon steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands, clamps or special sheet-metal ferrules of the CNFL type. Material: carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNG-050	Fitting CNG rowkowana 1/2" for hose 1/2", carbon steel	12	10	In stock	Enquiry
AC-CNG-075	Fitting CNG rowkowana 3/4" for hose 3/4", carbon steel	20	10	In stock	Enquiry
AC-CNG-100	Fitting CNG rowkowana 1" for hose 1", carbon steel	25	10	In stock	Enquiry
AC-CNG-125	Fitting CNG rowkowana 1.1/4" for hose 1.1/4", carbon steel	32	10	In stock	Enquiry
AC-CNG-150	Fitting CNG rowkowana 1.1/2" for hose 1.1/2", carbon steel	40	10	In stock	Enquiry
AC-CNG-200	Fitting CNG rowkowana 2" for hose 2", carbon steel	50	10	In stock	Enquiry
AC-CNG-250	Fitting CNG rowkowana 2.1/2" for hose 2.1/2", carbon steel	65	10	In stock	Enquiry
AC-CNG-300	Fitting CNG rowkowana 3" for hose 3", carbon steel	75	10	In stock	Enquiry
AC-CNG-400	Fitting CNG rowkowana 4" for hose 4", carbon steel	100	10	In stock	Enquiry
AC-CNG-500	Fitting CNG rowkowana 5" for hose 5", carbon steel	125	10	In stock	Enquiry
AC-CNG-600	Fitting CNG rowkowana 6" for hose 6", carbon steel	150	10	In stock	Enquiry
AC-CNG-800	Fitting CNG rowkowana 8" for hose 8", carbon steel	200	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Grooved fitting type CNG made of carbon steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands, clamps or special sheet-metal ferrules of the CNFL type. Material: carbon steel.
