Is the HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 suitable for use with hydraulic oil at 69 bar (1000 PSI)?

Yes. The HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 is suitable for use with hydraulic oil at 69 bar (1000 PSI). The product description specifies general applications including oil, a metal-to-metal cone seal, and a rated pressure of 1000 PSI (69 bar). Construction from carbon steel A105 and the GW NPT connection are appropriate for hydraulic oil service at that pressure, provided that the operating temperature, fluid compatibility with carbon steel and metal/metal sealing, and any system-specific requirements (e.g., cleanliness, dynamic vs. static use, vibration, shock, and safety factors) are acceptable. If the application involves higher temperatures, aggressive additives, cyclic pressures, or critical safety requirements, verify compatibility with the manufacturer or perform additional engineering validation.

Can the HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 be used for gaseous fuels at 1000 PSI (69 bar)?

Yes. The HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 is specified for low-pressure transmission of air, water, oil, and gas and lists a pressure rating of 1000 PSI (69 bar). Constructed of carbon steel A105 with metal/metal (cone) sealing and GW NPT connection, it is suitable for gaseous fuels at the stated pressure, provided installation, gas type, temperature, applicable codes and compatibility with upstream/downstream system materials are verified and local regulations are met.

Does the HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 support metal-to-metal cone sealing for steam applications at 69 bar?

Yes. The HAMMER LUG connector (set) with GW NPT, carbon steel, type 100 supports metal-to-metal cone sealing for steam applications at 69 bar. The product description specifies metal/metal (cone) sealing and a pressure rating of 1000 PSI (69 bar), and the materials (carbon steel A105) and connection type (GW NPT) are consistent with use in pressurized steam systems. Ensure compatibility with your specific steam temperature, cycling, and service conditions, and follow applicable standards and installation procedures.

Coupling HAMMER LUG (set) with a female NPT thread, steel carbon, type 100

Additional information

Material	CS – steel (cast iron)

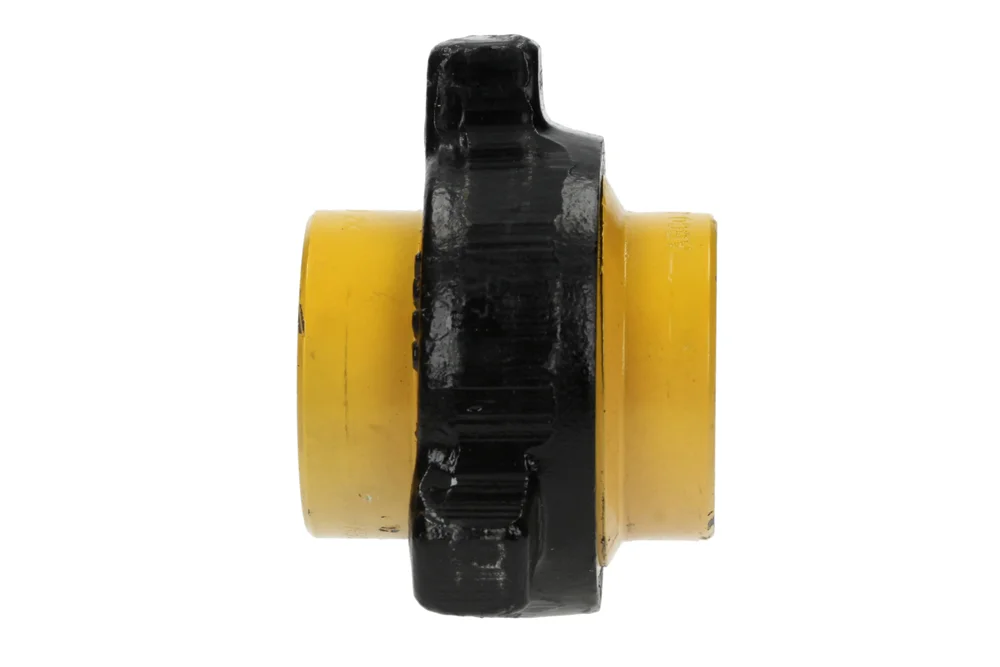

Coupling low-pressure HAMMER LUG type 100 for general applications. widely used for conveying air, water, oil and gas. set: part male, female + A nut. color: yellow (part male, female), black (A nut). Material: steel carbon A105. Connection: NPT female. sealing: metal/metal (cone). pressure: 1000 PSI (69 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HL-FIG0100KG-050	Coupling HAMMER LUG type 100 (Set) 2", NPT female, carbon steel	-	69	In stock	Enquiry
HL-FIG0100KG-075	Coupling HAMMER LUG type 100 (Set) 3", NPT female, carbon steel	-	69	In stock	Enquiry
HL-FIG0100KG-100	Coupling HAMMER LUG type 100 (Set) 4", NPT female, carbon steel	-	69	In stock	Enquiry
HL-FIG0100KG-125	Coupling HAMMER LUG type 100 (Set) 5", NPT female, carbon steel	-	69	In stock	Enquiry
HL-FIG0100KG-150	Coupling HAMMER LUG type 100 (Set) 6", NPT female, carbon steel	-	69	In stock	Enquiry
HL-FIG0100KG-200	Coupling HAMMER LUG type 100 (Set) 8", NPT female, carbon steel	-	69	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling low-pressure HAMMER LUG type 100 for general applications. widely used for conveying air, water, oil and gas. set: part male, female + A nut. color: yellow (part male, female), black (A nut). Material: steel carbon A105. Connection: NPT female. sealing: metal/metal (cone). pressure: 1000 PSI (69 bar).
