Is the Hose with magnetic base and 1/4" coolant valve, JETON, compatible with coolant pressures up to 3 bar and temperatures up to +65Â°C?

Yes. The Hose with magnetic base and 1/4" coolant valve, JETON is specified for a working pressure up to 3 bar and an operating temperature up to +65Â°C, so it is compatible with those limits.

Can the Hose with magnetic base and 1/4" coolant valve, JETON, be used with acetal-compatible coolants and fluids?

Yes. The Hose with magnetic base and 1/4" coolant valve, JETON Format is made of acetal, so it is compatible with acetal-compatible coolants and fluids. Its materials and specifications - acetal construction, working pressure up to 3 bar and operating temperature up to +65Â°C - mean it will tolerate fluids formulated for acetal without material degradation. Ensure the coolantâs chemical compatibility with acetal and that application pressure and temperature remain within the stated limits.

Does the Hose with magnetic base and 1/4" coolant valve, JETON, include a 1" flat nozzle and 1/8" NPT tail on the magnetic base?

Yes. The Hose with magnetic base and 1/4" coolant valve, JETON includes a 1" flat nozzle and a magnetic base with a 1/8" NPT tail (end thread size for the magnetic base is 1/8" NPT). The kit also contains 20 segments (L = 300 mm), a valve with external 1/4" BSPT thread, is made of acetal, and is rated to 3 bar and +65Â°C.

Hose with magnetic base and 1/4″ coolant valve, JETON

Air and water hoses, All products/

Additional information

Material	polyacetal), POM – polyoxymethylene (polyformaldehyde
Maximum operating temperature [°C]	65
Vacuum resistance	yes

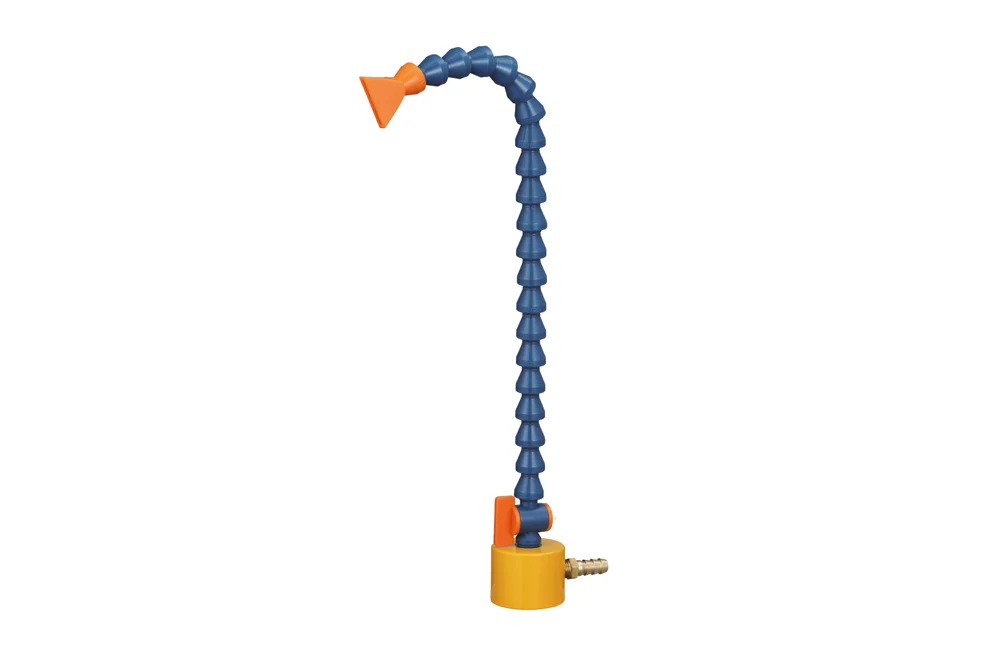

Hose with magnetic base and valve for coolant supply – system 1/4″. Components: 20 segments (L=300 mm), flat nozzle 1″, valve with external thread 1/4″ BSPT, and magnetic base with “tail” for 1/4″ hose (end thread size 1/8″ NPT). Material: acetal. Working pressure: up to 3 bar. Operating temperature: up to +65°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
JT-88105	Magnetic set with valve (1/4" system)	6	3	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Hose with magnetic base and valve for coolant supply – system 1/4″. Components: 20 segments (L=300 mm), flat nozzle 1″, valve with external thread 1/4″ BSPT, and magnetic base with “tail” for 1/4″ hose (end thread size 1/8″ NPT). Material: acetal. Working pressure: up to 3 bar. Operating temperature: up to +65°C.
