Is the BSP female threaded end, hex nut, for hose, brass, NiTO type A compatible with 25 bar systems and temperatures up to +80Â°C?

Yes. BSP female threaded end, hex nut, for hose, brass, NiTO type A is specified with a working pressure of 25 bar and an operating temperature up to +80Â°C, so it is compatible with systems up to those limits. Ensure the system does not exceed 25 bar or +80Â°C and that mating components and seals are likewise rated for these conditions for safe, leak-free operation.

Can BSP female threaded end, hex nut, for hose, brass, NiTO type A be used with potable water systems at 25 bar and up to +80Â°C?

BSP female threaded end, hex nut, for hose, brass, NiTO type A Format: Based on the provided description (brass material, internal BSP thread with flat sealing, working pressure 25 bar, operating temperature up to +80Â°C), this fitting can be used in potable water systems if two conditions are met: (1) the brass alloy is certified safe for drinking water (e.g., low-lead or compliant with relevant potable water standards in your jurisdiction), and (2) the flat sealing method and mating components (hose, gland, and thread seal) are suitable for potable service and rated for 25 bar at up to +80Â°C. If alloy certification and compatibility are not documented, do not assume suitability for potable water; obtain manufacturer certification or a WRAS/NSF/EN standard compliance statement before use.

Does BSP female threaded end, hex nut, for hose, brass, NiTO type A support flat sealing with standard BSP fittings?

Yes. BSP female threaded end, hex nut, for hose, brass, NiTO type A supports flat sealing with standard BSP fittings. The product description explicitly states "internal BSP thread and flat sealing," which indicates it is designed to achieve a flat-face (metal-to-metal or gasket) seal typical of BSP flat-seal connections. Material (brass), working pressure (25 bar) and temperature rating (up to +80Â°C) are compatible with common BSP flat-sealing applications. Ensure the mating standard BSP fitting provides a corresponding flat sealing surface (not a tapered thread) and, if required by the system, use the appropriate flat gasket or O-ring specified for the fitting interface and operating conditions.

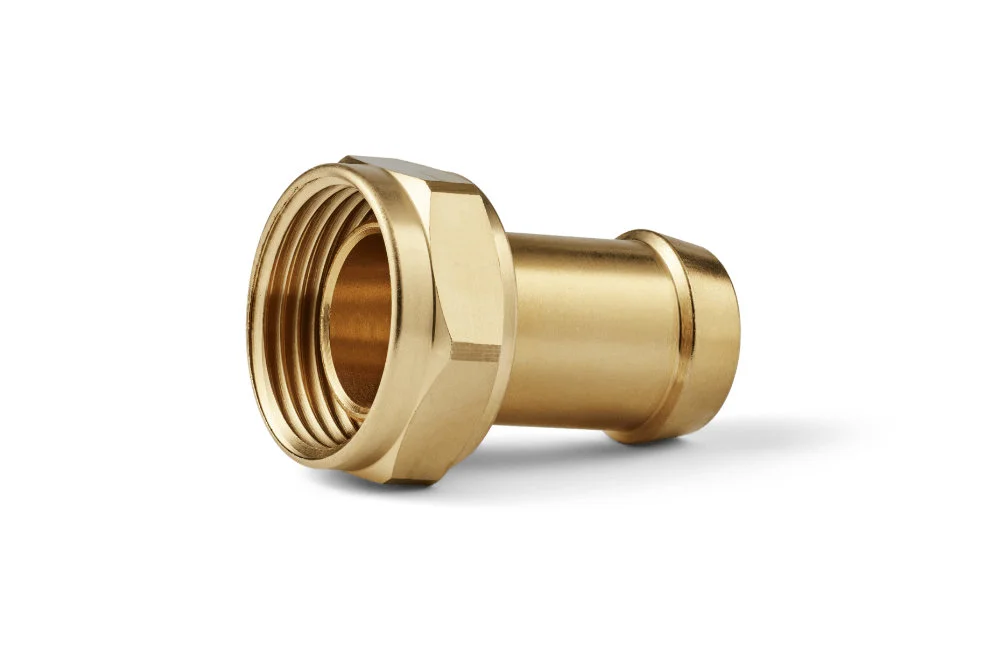

Fitting with a BSP female thread, hex nut, for a hose, brass, NiTO type A

All products, Low-pressure fittings and adapters/

Additional information

Material	B – brass (bronze)

Brass Hose fitting, NiTO type A with a BSP female thread with a flat seal, hex nut. Material: brass. Working pressure: 25 bar. Operating temperature: up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NT-27450A4	Fitting type A 1" BSP female for hose 1", brass	25	25	In stock	Enquiry
NT-27550A4	Fitting type A 1" BSP female for hose 1/2", brass	12	25	In stock	Enquiry
NT-27650A4	Fitting type A 1" BSP female for hose 3/4", brass	20	25	In stock	Enquiry
NT-27750A4	Fitting type A 1.1/4" BSP female for hose 1.1/4", brass	32	25	In stock	Enquiry
NT-27850A4	Fitting type A 1.1/2" BSP female for hose 1.1/2", brass	38	25	In stock	Enquiry
NT-27950A4	Fitting type A 2" BSP female for hose 2", brass	50	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Brass Hose fitting, NiTO type A with a BSP female thread with a flat seal, hex nut. Material: brass. Working pressure: 25 bar. Operating temperature: up to +80°C.
