Is the ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA suitable for agricultural hydraulic oil systems up to 350 bar and -20Â°C to +100Â°C?

Yes. The ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA is suitable for agricultural hydraulic oil systems under the specified conditions. Rationale: - Application: explicitly specified for power hydraulics (hydraulic oil) and mainly used in agricultural machinery. - Temperature range: socket sealing material NBR and stated operating temperature range of â20Â°C to +100Â°C matches your â20Â°C to +100Â°C requirement. - Pressure: working pressure up to 350 bar (depending on size) meets the up-to-350âbar requirement; safety factor 4:1 is consistent with typical hydraulic safety margins. - Compatibility: interchangeable with ISO-A (euro) couplings used across manufacturers and features internal BSP thread (GW BSP). - Materials: galvanized steel body suitable for typical agricultural environments; flow rating given for a 3 bar pressure drop. Ensure you select the correct size/version rated to 350 bar and verify NBR compatibility with any specific hydraulic fluid or additives in use.

Can the ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA be used interchangeably with other manufacturers' ISO-A "euro couplings"?

Yes. The ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA is designed to the ISO-A (commonly called âeuro couplingâ) standard for agricultural power hydraulics and is stated as interchangeable with ISO-A couplings from other manufacturers. Ensure matching size, GW/BSP thread, valve type and flow/pressure ratings (up to 350 bar, flow given at 3 bar Îp), and verify material/sealing compatibility (galvanized steel, NBR, temp -20Â°C to +100Â°C) before mixing brands for critical applications.

Does the ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA require special maintenance for NBR seals?

ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA does not require special maintenance specific to NBR seals beyond standard good practices for hydraulic equipment using NBR (nitrile) seals. Recommended maintenance: - Inspect seals visually at regular intervals for cuts, hardening, swelling or extrusion; replace if damaged. - Keep coupling and mating parts clean and protected from dirt and contaminants during connection/disconnection. - Avoid long exposure to temperatures outside the specified range (-20Â°C to +100Â°C) and to incompatible fluids; NBR is suitable for mineral hydraulic oils used in power hydraulics but is less resistant to some synthetic fluids, ketones, esters and strong solvents. - Prevent excessive pressure spikes above rated working pressure (up to 350 bar depending on size) and respect couplingâs safety factor and system limits. - Lubricate lightly only if recommended by manufacturer; avoid petroleum-based greases that may interact with NBR if incompatible. - Store spare couplings and seals in a cool, dark place away from ozone and direct sunlight. Following these routine measures will protect the NBR sealing of ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA and ensure reliable service in agricultural hydraulic applications.

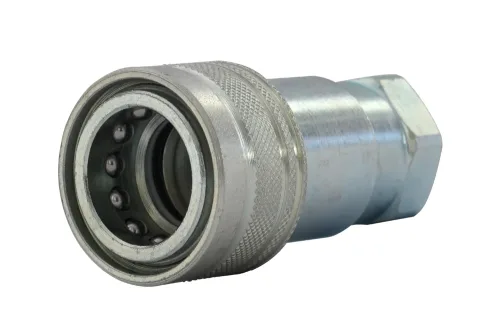

ISO-A hydraulic quick coupling socket with GW BSP with valve, DRAGON, type IA

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling socket with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -20°C to +100°C. Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DG-IA06-F-04G	DRAGON ISO-A DN6 socket with 1/4" BSP female thread, 350 bar	-	350	In stock	Enquiry
DG-IA10-F-06G	DRAGON ISO-A DN10 socket with 3/8" BSP female thread, 315 bar	-	315	In stock	Enquiry
DG-IA12-F-08G	DRAGON ISO-A DN12 socket with 1/2" BSP female thread, 250 bar	-	250	In stock	Enquiry
DG-IA19-F-12G	DRAGON ISO-A DN19 socket with 3/4" BSP female thread, 250 bar	-	250	In stock	Enquiry

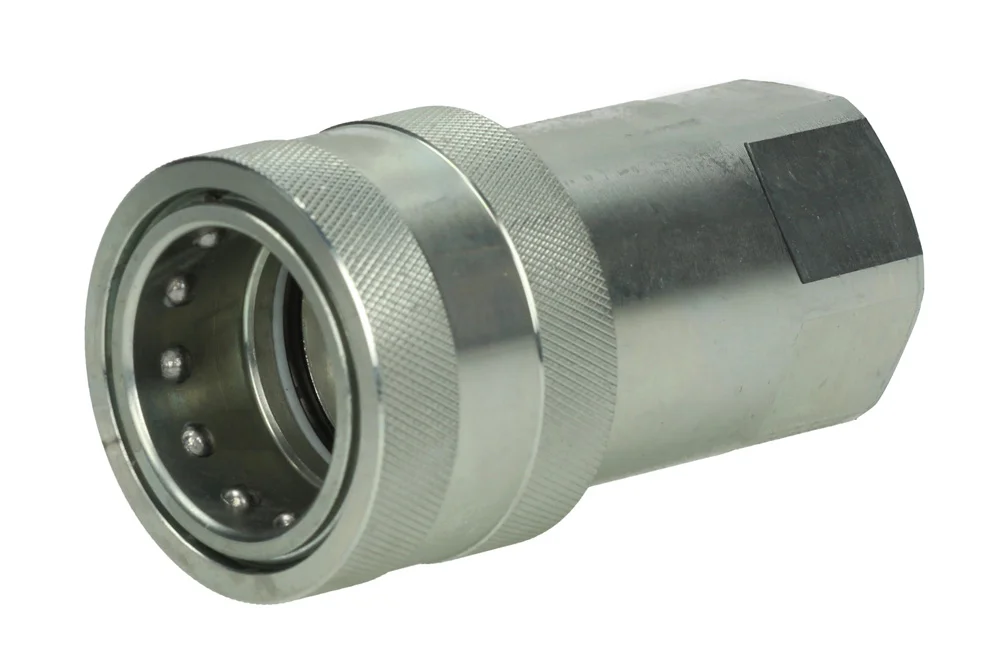

DG-IA25-F-16G	DRAGON ISO-A DN25 socket with 1" BSP female thread, 230 bar	-	230	In stock	Enquiry
DG-IA32-F-20G	DRAGON ISO-A DN32 socket with 1.1/4" BSP thread, 230 bar	-	230	In stock	Enquiry
DG-IA40-F-24G	DRAGON ISO-A DN40 socket with 1.1/2" BSP thread, 180 bar	-	180	In stock	Enquiry
DG-IA50-F-32G	DRAGON ISO-A DN50 socket with 2" BSP female thread, 130 bar	-	130	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling socket with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -20°C to +100°C. Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.
