Is the ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA compatible with other manufacturersâ ISO-A euro couplings?

Yes . the ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA is compatible with other manufacturersâ ISOâA (euro) couplings. It is manufactured to the ISOâA (euro) standard used across power-hydraulic agricultural equipment, features standard dimensions and mating interfaces, and is described as interchangeable with ISOâA quick couplings from other makers. Ensure mating plug also conforms to ISOâA and check seals/material compatibility (NBR sealing, operating temp â25Â°C to +100Â°C, working pressure up to 250 bar) for your specific application.

Can ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA be used in agricultural hydraulic systems with mineral oil?

Yes. The ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA is suitable for agricultural hydraulic systems using mineral oil. It is specified for power hydraulics (hydraulic oil), commonly used in agricultural machinery, compatible with ISO-A couplings, made of galvanized steel with NBR seals, rated â25Â°C to +100Â°C and up to 250 bar with 4:1 safety factor. Ensure compatibility with your specific mineral oil (NBR seals are generally compatible with common mineral hydraulic oils) and verify operating temperature/pressure and flow requirements for your system.

ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA

Q: Does the ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA require special maintenance for NBR seals?

No special maintenance beyond standard care for NBR seals is required. Details: - ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA Format uses NBR (nitrile) seals. NBR is suitable for hydraulic oil and the specified operating temperature range (-25Â°C to +100Â°C). - Routine maintenance recommendations: - Keep seals and sealing surfaces clean and free of dirt, debris and abrasive particles. - Inspect seals regularly for wear, cuts, hardening, swelling or extrusionâreplace if damaged or after signs of age-related degradation. - Use compatible hydraulic oil only; avoid fluids containing aggressive additives or incompatible solvents that swell or degrade NBR. - Protect couplings from prolonged exposure to temperatures near or above the upper limit (+100Â°C) and from sustained low temperatures below -25Â°C. - Avoid excessive pressure spikes beyond the 250 bar rating and respect the safety factor; pressure transients accelerate seal wear. - Lubricate lightly with compatible hydraulic oil when reassembling if recommended by your maintenance practice; do not use petroleum solvents or incompatible greases. - When disconnecting/connecting, ensure the PUSH PULL mechanism and valve/eliminator are free of contamination and operate smoothly; contamination can abrade seals. - Replacement: keep spare NBR seals on hand and replace seals per inspection findings or preventive-maintenance schedule. In short, follow normal hydraulic-coupling seal care: cleanliness, compatible fluids, regular inspection and timely replacement. no special or unusual maintenance is required beyond these practices for ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA Format.

All products, Hydraulic quick couplings/

ISO-A hydraulic quick coupling socket with GW BSP with valve and eliminator, PUSH PULL, type IA

Additional information

Material	CS – steel (cast iron)

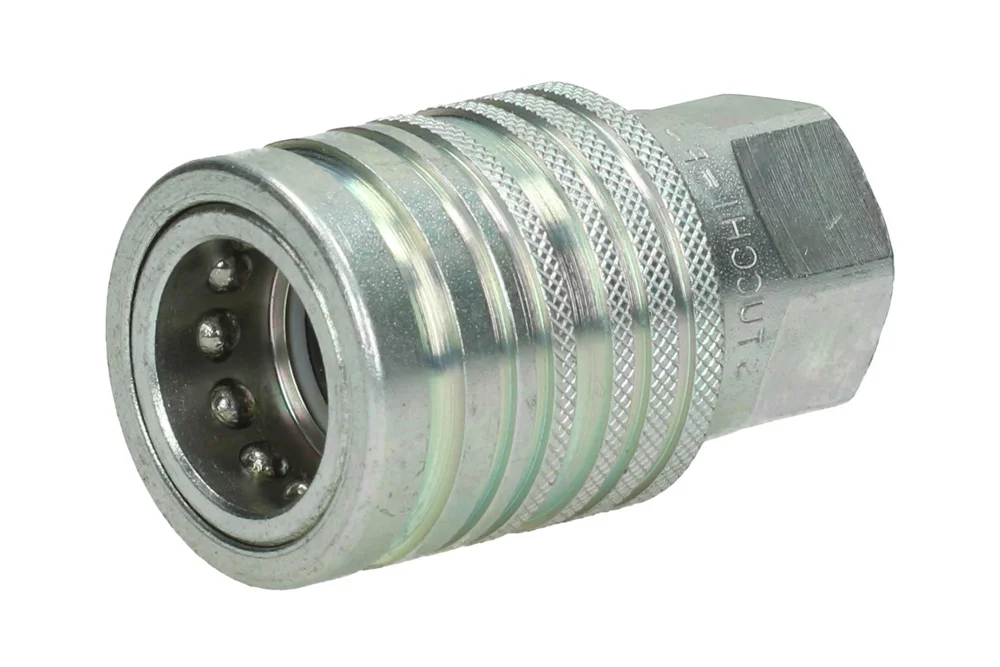

ISO-A hydraulic quick coupling socket with shut-off valve, internal BSP thread, and pressure eliminator. “Push-pull” version – automatic disconnection upon accidental tensioning of the hose. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 250 bar. Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HQ-IA12CP-F-08G	ISO A socket DN12 with 1/2" BSP female thread with elimination, Push-Pull	-	250	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling socket with shut-off valve, internal BSP thread, and pressure eliminator. “Push-pull” version – automatic disconnection upon accidental tensioning of the hose. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Socket sealing: NBR. Operating temperature: from -25°C to +100°C. Working pressure: up to 250 bar. Safety factor 4:1. Flow rate is given at Δp = 3 bar [l/min].
