Is HIFLAT lightweight flat water hose suitable for irrigation and light construction use, and how do LD and HD versions differ in pressure rating?

HIFLAT lightweight flat water hose Format is suitable for irrigation and light construction use. Itâs designed as a very lightweight, flat pressure hose for water transmission and is marketed as an economical solution for average working conditions in agriculture, construction and other industrial sectors. There are two versions: - HIFLAT LD (green) . lighter-duty version. - HIFLAT HD (blue) . higher-duty version. Both have a black PVC inner layer, polyester spacer reinforcement, and a colored PVC outer layer (green for LD, blue for HD). Working pressure ranges from about 2.5 bar up to 10 bar, depending on hose diameter, operating temperature (â20Â°C to +60Â°C) and whether you choose LD or HD. In short: LD gives lower working pressures appropriate for lighter tasks; HD supports higher working pressures for more demanding applications.

Can the HIFLAT lightweight flat water hose withstand temperatures from -20Â°C to +60Â°C during outdoor storage and use?

Yes. The HIFLAT lightweight flat water hose is specified for an operating temperature range of -20Â°C to +60Â°C, so it can withstand those temperatures during outdoor storage and typical use. Keep in mind that working pressure is affected by temperature, hose diameter and version (HIFLAT LD or HD), so verify pressure requirements at the extremes of the temperature range to ensure safe operation.

Does the HIFLAT lightweight flat water hose come in different colors and reinforcement types for LD vs HD models?

Yes. The HIFLAT lightweight flat water hose is offered in two versions with different colors and reinforcement types: - HIFLAT LD: green outer layer, polyester spacer reinforcement, inner black PVC; economical for average conditions. - HIFLAT HD: blue outer layer, polyester spacer reinforcement, inner black PVC; higher-duty version. Working pressure ranges from 2.5 to 10 bar depending on diameter, temperature, and LD vs HD type. Operating temperature: -20Â°C to +60Â°C.

HIFLAT lightweight flat water hose

Air and water hoses, All products/

Additional information

Material	PVC – polyvinyl chloride
Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-20
Vacuum resistance	no
Standard length [m]	50, 60, 60 / 120
Reinforcement	polyester spacer

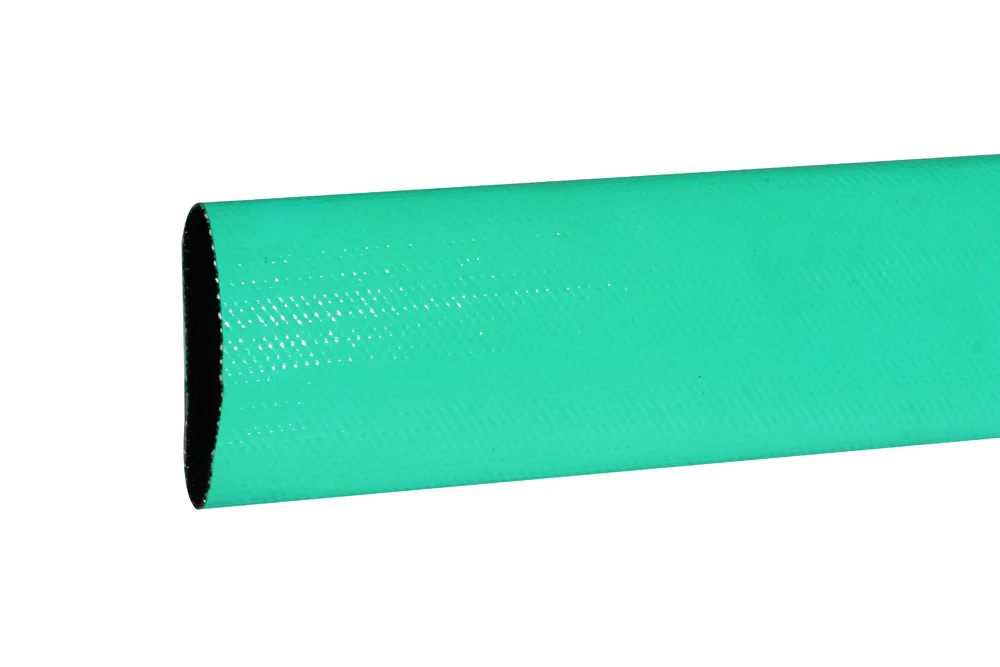

Very lightweight, flat (in a resting state), pressure hose designed for water transmission. An economical solution for average working conditions. Used in agriculture, construction, and other industrial sectors. Available in two versions: HIFLAT LD (green) and HIFLAT HD (blue). Inner layer: black PVC. Reinforcement: polyester spacer. Outer layer: green PVC (LD), blue PVC (HD). Working pressure: from 2.5 bar to 10 bar – depending on the hose diameter, temperature, and type of hose (LD, HD). Operating temperature: from -20°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FT-HIFLAT-HD-025	HIFLAT HD hose 25 mm	25	10	In stock	Enquiry
FT-HIFLAT-HD-032	HIFLAT HD hose 32 mm	32	9	In stock	Enquiry
FT-HIFLAT-HD-035	HIFLAT HD hose 35 mm	35	8	In stock	Enquiry
FT-HIFLAT-HD-038	HIFLAT HD hose 38 mm	38	8	In stock	Enquiry
FT-HIFLAT-HD-040	HIFLAT HD hose 40 mm	40	8	In stock	Enquiry
FT-HIFLAT-HD-045	HIFLAT HD hose 45 mm	45	8	In stock	Enquiry
FT-HIFLAT-HD-051	HIFLAT HD hose 51 mm	50	8	In stock	Enquiry
FT-HIFLAT-HD-060	HIFLAT HD hose 60 mm	60	8	In stock	Enquiry
FT-HIFLAT-HD-063	HIFLAT HD hose 63 mm	65	8	In stock	Enquiry
FT-HIFLAT-HD-070	HIFLAT HD hose 70 mm	70	7	In stock	Enquiry
FT-HIFLAT-HD-076	HIFLAT HD hose 76 mm	75	7	In stock	Enquiry
FT-HIFLAT-HD-080	HIFLAT HD hose 80 mm	80	7	In stock	Enquiry
FT-HIFLAT-HD-090	HIFLAT HD hose 90 mm	90	7	In stock	Enquiry
FT-HIFLAT-HD-102	HIFLAT HD hose 102 mm	100	7	In stock	Enquiry
FT-HIFLAT-HD-127	HIFLAT HD hose 127 mm	125	6	In stock	Enquiry
FT-HIFLAT-HD-153	HIFLAT HD hose 153 mm	150	4	In stock	Enquiry
FT-HIFLAT-HD-203	HIFLAT HD hose 203 mm	200	2.5	In stock	Enquiry
FT-HIFLAT-LD-025	HIFLAT LD hose 25 mm	25	6	In stock	Enquiry
FT-HIFLAT-LD-032	HIFLAT hose LD 32 mm	32	6	In stock	Enquiry
FT-HIFLAT-LD-035	HIFLAT LD hose 35 mm	35	6	In stock	Enquiry
FT-HIFLAT-LD-038	HIFLAT LD hose 38 mm	38	5	In stock	Enquiry
FT-HIFLAT-LD-040	HIFLAT LD hose 40 mm	40	5	In stock	Enquiry
FT-HIFLAT-LD-045	HIFLAT LD hose 45 mm	45	5	In stock	Enquiry
FT-HIFLAT-LD-051	HIFLAT LD hose 51 mm	50	4	In stock	Enquiry
FT-HIFLAT-LD-060	HIFLAT LD hose 60 mm	60	4	In stock	Enquiry
FT-HIFLAT-LD-063	HIFLAT LD hose 63 mm	65	4	In stock	Enquiry
FT-HIFLAT-LD-070	HIFLAT LD hose 70 mm	70	4	In stock	Enquiry
FT-HIFLAT-LD-076	HIFLAT LD hose 76 mm	75	4	In stock	Enquiry
FT-HIFLAT-LD-090	HIFLAT LD hose 90 mm	90	4	In stock	Enquiry
FT-HIFLAT-LD-102	HIFLAT LD hose 102 mm	100	4	In stock	Enquiry
FT-HIFLAT-LD-127	HIFLAT LD hose 127 mm	125	3	In stock	Enquiry
FT-HIFLAT-LD-153	HIFLAT hose LD 153 mm	150	2.5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Very lightweight, flat (in a resting state), pressure hose designed for water transmission. An economical solution for average working conditions. Used in agriculture, construction, and other industrial sectors. Available in two versions: HIFLAT LD (green) and HIFLAT HD (blue). Inner layer: black PVC. Reinforcement: polyester spacer. Outer layer: green PVC (LD), blue PVC (HD). Working pressure: from 2.5 bar to 10 bar – depending on the hose diameter, temperature, and type of hose (LD, HD). Operating temperature: from -20°C to +60°C.

Additional information

Material	PVC – polyvinyl chloride
Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-20
Vacuum resistance	no
Standard length [m]	50, 60, 60 / 120
Reinforcement	polyester spacer
