Can Quick connector for air MINI DN5, threaded, brass, 35 bar be used for nitrogen and other non-flammable gases?

Yes. Quick connector for air MINI DN5, threaded, brass, 35 bar can be used for nitrogen and other non-flammable gases. The product description explicitly lists use for air, nitrogen, and other non-flammable gases, and its materials and ratings (brass body, working pressure 35 bar, temperature -20Â°C to +100Â°C) are suitable for those media. Ensure compatibility with your system threads (BSP internal/external), required interchangeability (RECTUS 21 / EURO DN 5), and confirm any application-specific purity or certification requirements before use.

Can Quick connector for air MINI DN5, threaded, brass, 35 bar be used safely at temperatures down to -20Â°C?

Yes. Quick connector for air MINI DN5, threaded, brass, 35 bar can be used safely at temperatures down to -20Â°C. The product specification lists an operating temperature range from -20Â°C to +100Â°C, and the materials (brass) and intended media (air, nitrogen, other non-flammable gases) are consistent with safe operation within that range. Ensure that any sealing materials (e.g., O-rings) in your system are compatible with -20Â°C and that installation and pressure conditions do not exceed the rated 35 bar.

Quick connector for air MINI DN5, threaded, brass, 35 bar

Q: Is the Quick connector for air MINI DN5, threaded, brass, 35 bar compatible with RECTUS 21 and other EURO DN5 couplings?

Yes. The Quick connector for air MINI DN5, threaded, brass, 35 bar is compatible with RECTUS 21 and other EURO DN5 couplings. The Eurostandard MINI DN5 description states it is interchangeable with RECTUS 21 and EURO DN5 quick couplings from other manufacturers, and it is designed for air and other nonâflammable gases, with working pressure up to 35 bar and brass construction suitable for â20Â°C to +100Â°C.

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

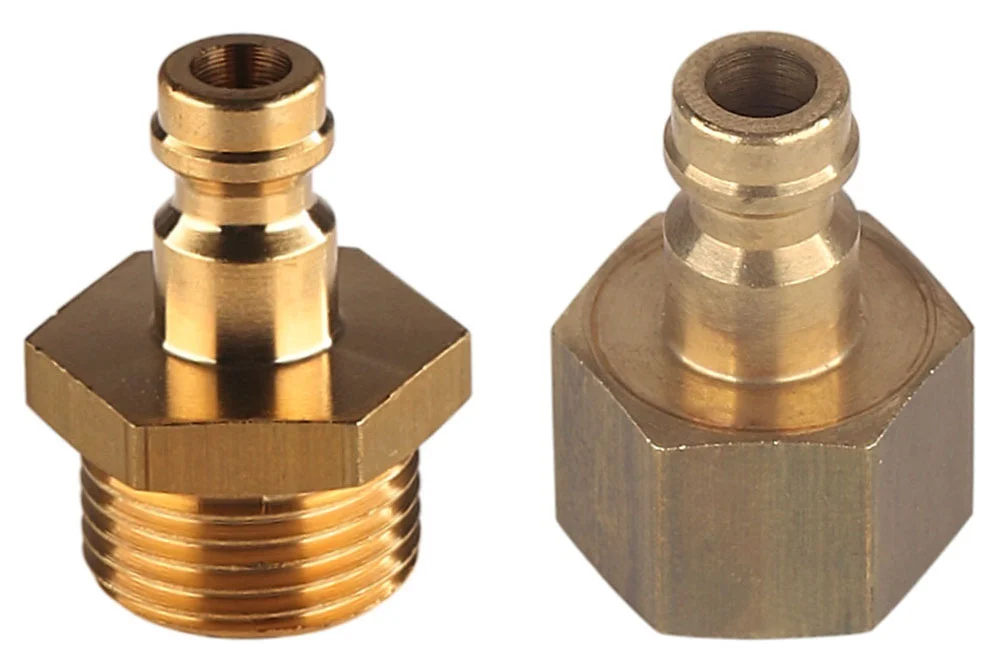

Eurostandard MINI DN 5 quick coupling plug, without valve, with external or internal BSP thread, widely used in the industry (for air, nitrogen, and other non-flammable gases), where small dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and EURO DN 5 quick couplings from other manufacturers. Working pressure: 35 bar. Operating temperature: from -20°C to +100°C. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
LU-ESM-14-NA	MINI DN5 quick coupling plug, GZ 1/4" BSP, brass	-	35	In stock	Enquiry
LU-ESM-14-NI	MINI DN5 quick coupling plug, 1/4" BSP male, brass	-	35	In stock	Enquiry
LU-ESM-18-NA	MINI DN5 quick coupling plug, GZ 1/8" BSP, brass	-	35	In stock	Enquiry
LU-ESM-18-NI	Mini quick coupling plug DN5, 1/8" BSP male thread, brass	-	35	In stock	Enquiry
LU-ESM-38-NA	MINI DN5 quick coupling plug, GZ 3/8" BSP, brass	-	35	In stock	Enquiry
LU-ESM-38-NI	MINI DN5 quick coupling plug, 3/8" BSP male, brass	-	35	In stock	Enquiry
MU-2816	Quick coupling plug DN 5 with 1/8" BSP female thread	-	35	In stock	Enquiry
MU-2817	Quick coupling plug DN 5 with 1/4" BSP female thread	-	35	In stock	Enquiry
MU-2818	Quick coupling plug DN 5 with G 3/8" BSP	-	35	In stock	Enquiry
MU-2826	Quick coupling plug DN 5 with GZ 1/8" BSP	-	35	In stock	Enquiry
MU-2828	Quick coupling plug DN 5 with GZ 3/8" BSP	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Eurostandard MINI DN 5 quick coupling plug, without valve, with external or internal BSP thread, widely used in the industry (for air, nitrogen, and other non-flammable gases), where small dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and EURO DN 5 quick couplings from other manufacturers. Working pressure: 35 bar. Operating temperature: from -20°C to +100°C. Material: brass.
