Is the Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar compatible with RECTUS 20 and other DN 2.7 quick-connects?

Yes. The Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar is compatible with RECTUS 20 and other DN 2.7 quick-connects that use the same plug profile. It is designed as a DN 2.7 miniature quick-connect plug (external or internal metric or BSP thread), without a valve, for applications where small dimensions matter (medical, measurement, laboratory technology). It is interchangeable with RECTUS 20 and DN 2.7 quick-connects from other manufacturers with the same plug profile. Rated for pneumatics (air, nitrogen, other non-flammable gases) at up to 16 bar and operable from â20Â°C to +100Â°C; material: nickel-plated brass.

Can the Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar be used with medical and laboratory pneumatic systems?

Yes. The Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar is suitable for medical and laboratory pneumatic systems where compact size and compatibility with nonâflammable gases (air, nitrogen) are required. Its design is explicitly intended for medical, measurement and laboratory technology, offers interchangeability with RECTUS 20 and other DN 2.7 profiles, and supports working pressures up to 16 bar and temperatures from â20 Â°C to +100 Â°C. Ensure system cleanliness, compatibility with any sterilization/biocompatibility requirements, and conformity with specific medical regulations or standards applicable to your installation before use.

Does the Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar require specific seals for pneumatic gases?

Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar does not explicitly require special seals beyond standard pneumatic sealing practice, but correct seal choice is important for safe, reliable use with pneumatic gases (air, nitrogen, other nonâflammable gases). Recommended considerations: - Seal material compatibility: use seals (Oârings, gaskets) made of materials compatible with air and nitrogen and rated for the operating temperature range (â20Â°C to +100Â°C). Common choices: NBR (nitrile) for general pneumatic use, EPDM for better temperature and ozone/steam resistance, or FKM (Viton) where higher chemical/temperature resistance is needed. - Pressure rating: seals must be rated for the working pressure up to 16 bar and for any expected pressure spikes. - Thread type and sealing method: for threaded connections (metric or BSP, external or internal) choose appropriate thread sealingâeither a compatible elastomeric Oâring in a face seal design or thread sealants (PTFE tape or ANâapproved sealant) for pipe threads. Do not use sealants incompatible with the chosen elastomer or with gases. - Safety and compliance: ensure seals and sealants are approved for use with breathable gases if applicable and meet any industry or medical device standards required by your application. - Installation and maintenance: ensure proper installation torque, avoid damaging Oârings, and inspect/replace seals periodically, especially in critical or medical/lab applications. In summary, Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar does not mandate a unique seal type, but select seals compatible with pneumatic gases, the operating temperature range, and 16 bar pressureâNBR or EPDM are typical choices; for higher chemical/temperature demands consider FKM.

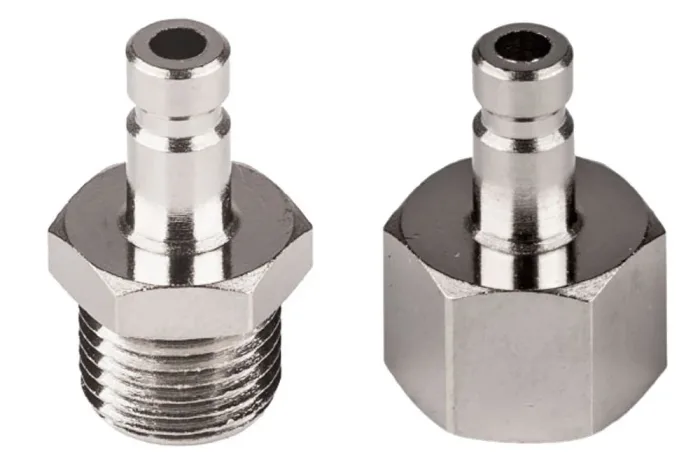

Miniature air plug DN2.7, threaded, nickel-plated brass, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Miniature quick-connect plug DN 2.7 with external or internal (metric or BSP) thread, without valve for use where small dimensions are important, e.g., in medical, measurement, and laboratory technology. Interchangeable with RECTUS 20 and quick-connects DN 2.7 from other manufacturers with the same plug profile. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Operating temperature: from -20°C to +100°C. Material: nickel-plated brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MIKRO-WW-02	Quick coupling plug MIKRO DN2.7, G 1/8" BSP, nickel-plated brass	-	16	In stock	Enquiry
EW-MIKRO-WW-M5	Quick coupling plug MIKRO DN2.7, G-thread M5, nickel-plated brass	-	16	In stock	Enquiry
EW-MIKRO-WZ-02	Quick coupling plug MIKRO DN2.7, GZ 1/8" BSP, nickel-plated brass	-	16	In stock	Enquiry
EW-MIKRO-WZ-M5	Quick coupling plug MIKRO DN2.7, GZ M5, nickel-plated brass	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature quick-connect plug DN 2.7 with external or internal (metric or BSP) thread, without valve for use where small dimensions are important, e.g., in medical, measurement, and laboratory technology. Interchangeable with RECTUS 20 and quick-connects DN 2.7 from other manufacturers with the same plug profile. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Operating temperature: from -20°C to +100°C. Material: nickel-plated brass.
