Is the MINI CLIP mini screw clamp, stainless steel suitable for thin-walled industrial hoses with small diameters without causing damage?

Yes. The MINI CLIP mini screw clamp, stainless steel is specifically designed for industrial hoses with relatively small diameters and relatively thin walls. Key features that prevent damage: - Tape tongue between screw and hose protects the hose from direct contact with the screw head and spreads pressure. - Rolled edges eliminate sharp contact points that could cut or abrade the hose wall. - The clamp provides even circumferential pressure and adheres closely to the hose, reducing localised pinch points. - All components in AISI 304 (W4) stainless steel give consistent, durable clamping without deformation that could harm the hose. Provided the clamp size matches the hose diameter and you avoid overtightening, the MINI CLIP mini screw clamp, stainless steel is suitable for thin-walled, small-diameter industrial hoses without causing damage.

How does the MINI CLIP mini screw clamp, stainless steel protect thin-walled industrial hoses from screw-induced damage?

The MINI CLIP mini screw clamp, stainless steel protects thin-walled industrial hoses by isolating the screw from the hose with a built-in tape tongue that prevents direct contact and distributes pressure evenly around the circumference. Rolled edges eliminate sharp contact points, avoiding cutting or abrasion. Its precise fit and surface adherence create a uniform, strong grip that prevents local deformation. Made entirely of AISI 304 (W4) stainless steel, the clamp resists corrosion while the hexagonal-head screw with tool notches ensures controlled tightening, reducing risk of over-torquing and screw-induced damage.

Can the MINI CLIP mini screw clamp, stainless steel be reused after removal without losing sealing performance?

Yes. the MINI CLIP mini screw clamp, stainless steel can generally be reused after removal without losing sealing performance, provided it is not visibly damaged or overly deformed during removal. Reasons: - Material and construction: All components are AISI 304 stainless steel, which retains strength, corrosion resistance and springiness over multiple uses. - Design features: The tape tongue protects the hose from screw contact and the rolled edges prevent hose damage, reducing wear during installation and removal. The clampâs ability to conform and provide even circumferential pressure helps it reseat effectively. - Practical limits: Reuse is acceptable when the clampâs band, screw threads, hex head, or rolled edges show no distortion, cracks, corrosion or significant stretching. If the clamp was overtightened (permanently stretched) or sustained mechanical damage, its sealing reliability will be compromised and it should be replaced. - Recommended practice: Inspect the clamp after removal. check for deformation, flattened roll edges, stripped or damaged screw/notches, and signs of corrosion. If all parts are intact, reinstall and retighten to the proper torque for the hose application to restore full sealing performance. Conclusion: Reusable if undamaged and not permanently stretched; replace if any deformation, thread damage, corrosion or evidence of overstressing is present.

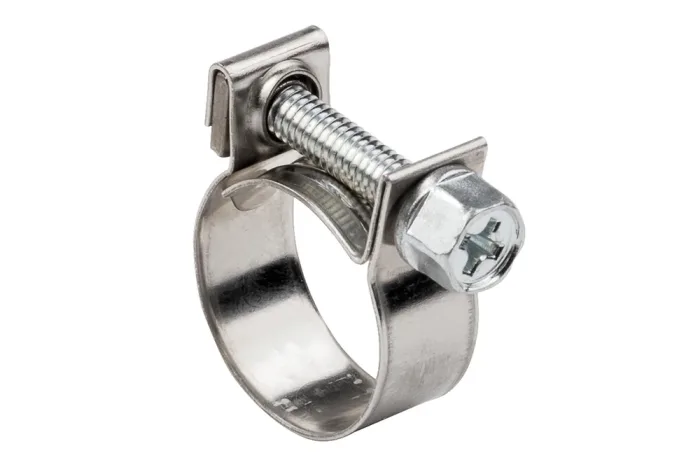

MINI CLIP miniature screw clamp, stainless steel

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

MINI single-screw clamp intended for industrial hoses of moderate diameter and relatively thin wall. Equipped with a band tongue that protects the hose from contact with the screw and ensures even circumferential pressure. The rolled edges of the clamp do not damage the hose. The clamp fits and adheres perfectly to the hose surface, providing a strong, uniform grip. The hexagon-head screw has slots allowing various tools to be used for installation. Material: all components made of AISI 304 (W4) steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-622008	Clamp MINI 8 mm, W4	-	-	In stock	Enquiry
AB-622009	Clamp MINI 9 mm, W4	-	-	In stock	Enquiry
AB-622010	Clamp MINI 10 mm, W4	-	-	In stock	Enquiry
AB-622011	Clamp MINI 11 mm, W4	-	-	In stock	Enquiry
AB-622012	Clamp MINI 12 mm, W4	-	-	In stock	Enquiry
AB-622013	Clamp MINI 13 mm, W4	-	-	In stock	Enquiry
AB-622014	Clamp MINI 14 mm, W4	-	-	In stock	Enquiry
AB-622015	Clamp MINI 15 mm, W4	-	-	In stock	Enquiry
AB-622016	Clamp MINI 16 mm, W4	-	-	In stock	Enquiry
AB-622017	Clamp MINI 17 mm, W4	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

MINI single-screw clamp intended for industrial hoses of moderate diameter and relatively thin wall. Equipped with a band tongue that protects the hose from contact with the screw and ensures even circumferential pressure. The rolled edges of the clamp do not damage the hose. The clamp fits and adheres perfectly to the hose surface, providing a strong, uniform grip. The hexagon-head screw has slots allowing various tools to be used for installation. Material: all components made of AISI 304 (W4) steel.
