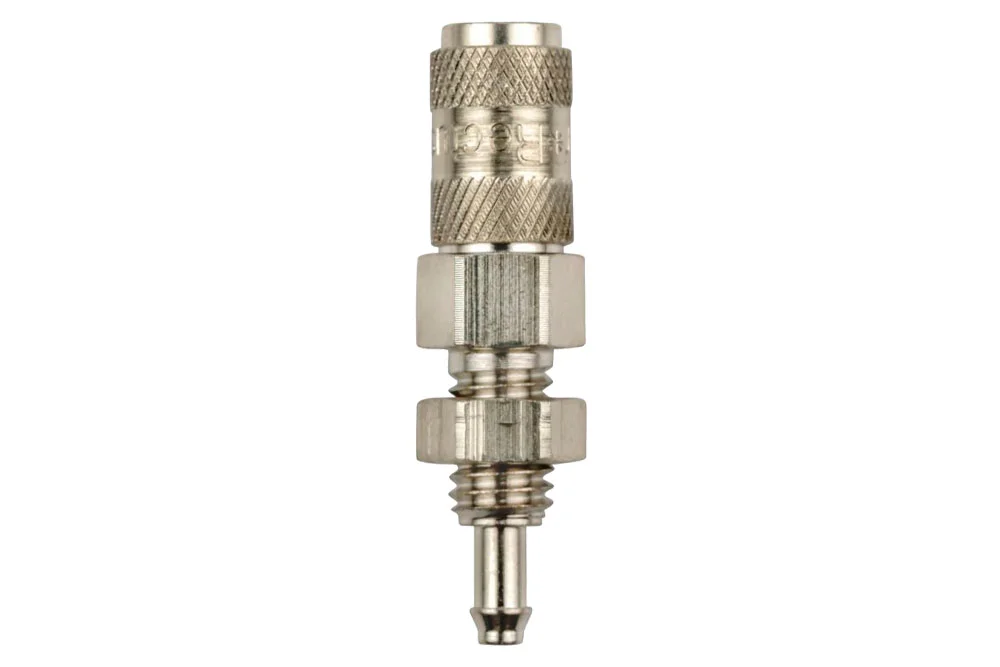

Quick-connection socket DN1.5 miniature universal, with hose end, brass, series 02KA
Miniature quick-connect socket DN1.5, with valve, with hose fitting, for air, inert gases, and liquids, where compact dimensions are required. Panel-mount version. Available in two variants: uncoated brass and nickel-plated brass. Working pressure: 35 bar. Flow rate: 40 l/min, Pe=6 bar, Δp=0.5 bar (air), Kv=0.048, 0.8 l/min at Δp=1 bar (water). Operating temperature: from -20°C to +100°C. Material: brass or nickel-plated brass, AISI 301 steel (spring and ring), AISI 420 steel (locking balls). Sealing: NBR.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Miniature quick-connect socket DN1.5, with valve, with hose fitting, for air, inert gases, and liquids, where compact dimensions are required. Panel-mount version. Available in two variants: uncoated brass and nickel-plated brass. Working pressure: 35 bar. Flow rate: 40 l/min, Pe=6 bar, Δp=0.5 bar (air), Kv=0.048, 0.8 l/min at Δp=1 bar (water). Operating temperature: from -20°C to +100°C. Material: brass or nickel-plated brass, AISI 301 steel (spring and ring), AISI 420 steel (locking balls). Sealing: NBR.
Additional information
| Material | B – brass (bronze) |
|---|
