Does the Silencer with choke MWSVL with GZ, brass reduce noise by about 25 dB at 5 bar, 1 m distance and 45Â°?

Yes. Silencer with choke MWSVL with GZ, brass reduces noise by about 25 dB at 5 bar, measured at 1 m distance and 45Â°.average attenuation depends on the size but is approximately 25 dB. Material: nickel-plated brass and nickel-plated sintered bronze. Operating temperature: -10Â°C to +80Â°C. Maximum working pressure: 12 bar.

Can the Silencer with choke MWSVL with GZ, brass be used at temperatures down to -10Â°C and pressures up to 12 bar?

Yes. The Silencer with choke MWSVL with GZ, brass is specified for an operating temperature range from â10Â°C to +80Â°C and a working pressure up to 12 bar, so it can be used at temperatures down to â10Â°C and pressures up to 12 bar.

Is the Silencer with choke MWSVL with GZ, brass available in nickel-plated sintered bronze material?

Yes. Silencer with choke MWSVL with GZ, brass is available in nickel-plated sintered bronze. The product description lists both nickel-plated brass and nickel-plated sintered bronze as material options, with operating temperature -10Â°C to +80Â°C and working pressure up to 12 bar.

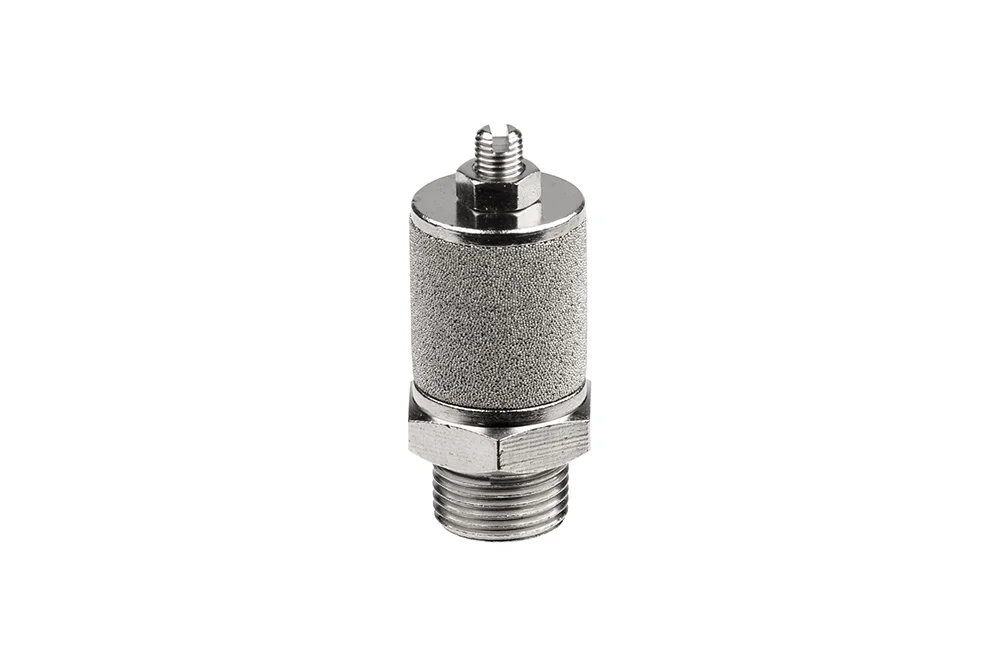

Silencer with choke MWSVL with GZ, brass

All products, Equipment for pneumatic valves/

Additional information

Material	B – brass (bronze)

MWSVL silencer with throttling and external thread used in compressed air systems to reduce noise levels. The noise reduction achievable by installing the silencer, measured at a supply pressure of 5 bar, at a distance of 1m and at an angle of 45° from the axis of the silencer, averages 25 dB depending on the size. Material: nickel-plated brass, nickel-plated sintered bronze. Operating temperature: from -10°C to +80°C. Working pressure: 12 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0970520010	MW SVL silencer with throttling, nickel-plated brass/copper, GZM5	-	-	In stock	Enquiry
MW-W0970520011	MW SVL silencer with throttling, nickel-plated brass/bronze, GZ BSP 1/8"	-	-	In stock	Enquiry
MW-W0970520012	MW SVL silencer with throttling, nickel-plated brass/bronze, GZ BSP 1/4	-	-	In stock	Enquiry
MW-W0970520013	Silencer with throttling MW SVL, nickel-plated brass/copper, GZ BSP 3/8	-	-	In stock	Enquiry
MW-W0970520014	MW SVL silencer with throttling, nickel-plated brass/copper, GZ BSP 1/2"	-	-	In stock	Enquiry
MW-W0970520015	Silencer with throttling MW SVL, nickel-plated brass/copper, GZ BSP 3/4	-	-	In stock	Enquiry
MW-W0970520016	Silencer with throttling MW SVL, nickel-plated brass/bronze, GZ BSP 1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

MWSVL silencer with throttling and external thread used in compressed air systems to reduce noise levels. The noise reduction achievable by installing the silencer, measured at a supply pressure of 5 bar, at a distance of 1m and at an angle of 45° from the axis of the silencer, averages 25 dB depending on the size. Material: nickel-plated brass, nickel-plated sintered bronze. Operating temperature: from -10°C to +80°C. Working pressure: 12 bar.
