Is the APC oil pressure switch suitable for use in hydraulic systems with pressures up to 400 bar and an operating temperature range of -20Â°C to +80Â°C?

Yes. The APC oil pressure switch is suitable: its pressure adjustment range covers 2â400 bar, housing and sealing materials (aluminum with NBR seal) are appropriate for hydraulic oil service, and the specified operating temperature range is â20Â°C to +80Â°C. Ensure system current does not exceed the switchâs electrical ratings (max 5 A at 250 V AC; 0.25 A at 125 V DC) and that IP65 environmental protection meets your installation conditions.

Can the APC oil pressure switch be mounted using either a thread or a plate connection for easy installation?

Yes. The APC oil pressure switch can be installed either by a threaded connection or by a plate (flange) connection for easy installation. It features an aluminum housing with NBR sealing, adjustable pressure range 2â400 bar, IP65 protection, operating temperature â20Â°C to +80Â°C, and electrical ratings up to 5 A at 250 V AC (0.25 A at 125 V DC).

Does the APC oil pressure switch provide IP65 protection and NBR sealing for reliable operation in dirty environments?

Yes. The APC oil pressure switch offers reliable operation in dirty environments: it has an IP65 protection rating (dust-tight and protected against water jets) and uses NBR sealing. Together these features provide robust ingress protection and oil-resistant sealing suitable for hydraulic systems. Operating temperature range (-20Â°C to +80Â°C) and aluminum housing further support durability.

APC oil pressure switch

All products, Other high-pressure accessories/

Additional information

Material	AL – aluminum

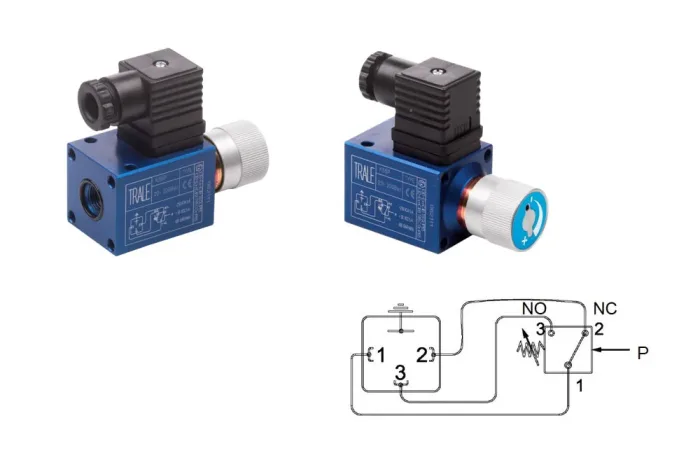

Pressure switch used in hydraulic power systems. Signals the achievement of a specified oil pressure value. The regulated value is adjusted using a knob. Installation is possible using a thread or plate connection. Material: aluminum (housing). Sealing: NBR. Pressure adjustment range: 2 ÷ 400 bar. Maximum load: 5 A at 250V AC; 0.25 A at 125V DC. Protection degree: IP 65. Operating temperature: from -20°C to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AH-APC-02-040	Pressure switch 2-40 bar, 1/4" BSP thread	-	-	In stock	Enquiry
AH-APC-05-100	Pressure switch 5-100 bar, G 1/4" BSP	-	-	In stock	Enquiry
AH-APC-20-200	Pressure switch 20-200 bar, G 1/4" BSP	-	-	In stock	Enquiry
AH-APC-30-300	Pressure switch 30-300 bar, G 1/4" BSP	-	-	In stock	Enquiry
AH-APC-40-400	Pressure switch 40-400 bar, 1/4" BSP thread	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Pressure switch used in hydraulic power systems. Signals the achievement of a specified oil pressure value. The regulated value is adjusted using a knob. Installation is possible using a thread or plate connection. Material: aluminum (housing). Sealing: NBR. Pressure adjustment range: 2 ÷ 400 bar. Maximum load: 5 A at 250V AC; 0.25 A at 125V DC. Protection degree: IP 65. Operating temperature: from -20°C to +80°C.
