Is the ORFS plug with stainless steel UNF GZ, type ROV compatible with AISI 316 steel systems and seawater exposure?

Yes. The ORFS plug with stainless steel UNF GZ, type ROV (AISI 316) is compatible with AISI 316 steel systems and suitable for seawater exposure in most applications. AISI 316 stainless steel contains molybdenum, which improves resistance to chloride-induced corrosion compared with 304, making it a common choice for marine environments. Using the same material for plug and system minimizes galvanic potential between components. However, note these caveats: - AISI 316 is generally resistant to seawater but not immune to pitting and crevice corrosion in warm, stagnant, or highly chlorinated conditions. For prolonged immersion in aggressive seawater or warm tropical waters, super-austenitic (e.g., 6Mo) alloys or duplex stainless steels offer better performance. - Threaded connections and ORFS sealing faces must be properly installed, cleaned, and torqued to avoid crevice formation and ensure the ORFS elastomer/face seal functions correctly. Compatible sealing materials (O-rings) must also be selected for seawater compatibility. - If cathodic protection, stray currents, or dissimilar metals are present in the system, evaluate galvanic corrosion risk and consider insulating fittings or material selection adjustments. In summary, the ORFS plug with stainless steel UNF GZ, type ROV (AISI 316) is broadly compatible with AISI 316 systems and seawater exposure, but verify environmental severity, installation practices, and sealing materials for long-term reliability.

Can ORFS plug with stainless steel UNF GZ, type ROV be used in marine environments with AISI 316 fittings?

Yes. An ORFS plug with stainless steel UNF GZ, type ROV made from AISI 316 is suitable for marine environments when used with AISI 316 fittings. Matching materials (AISI 316 plug and fittings) ensure compatible corrosion resistance and similar galvanic potential, minimizing galvanic corrosion risk. AISI 316 offers good chloride resistance common in marine settings, but performance depends on service conditions (temperature, salinity, mechanical stress) and surface condition. For maximum reliability: ensure proper thread sealing, corrosion-preventive assembly practices, and consider 316L or higher-alloy alternatives if exposure is severe (e.g., splash zones, stagnant seawater) or if crevice corrosion is a concern.

Is ORFS plug with stainless steel UNF GZ, type ROV suitable for prolonged saltwater immersion with AISI 316 components?

Yes. ORFS plug with stainless steel UNF GZ, type ROV, made of AISI 316, is generally suitable for prolonged immersion in saltwater, with some caveats: - Corrosion resistance: AISI 316 (marine-grade) offers good resistance to chloride corrosion and pitting compared with 304 stainless. For many saltwater and offshore applications it performs well, especially in moderate temperatures and oxygenated seawater. - Limitations: AISI 316 is not completely immune to localized corrosion (pitting, crevice corrosion) in warm, stagnant, or highly polluted seawater, or in areas with differential aeration. Prolonged immersion in aggressive marine environments (tropical, high salinity, high temperature) can eventually cause corrosion. - Threaded connection risks: External UNF threads and mating surfaces can create crevices where deposits, moisture, and oxygen differentials promote crevice corrosion. Proper sealing, anti-seize compounds, or use of compatible mating materials reduce risk. - Galvanic corrosion: If the plug contacts dissimilar metals (especially copper alloys, aluminum, or carbon steel) without insulation, galvanic corrosion can occur. Ensure compatible mating materials or electrical isolation. - Maintenance and protection: For long-term durability, consider periodic inspection, cleaning, protective coatings (passivation, marine-grade coatings), and use of sacrificial anodes where applicable. Conclusion: ORFS plug with stainless steel UNF GZ, type ROV, AISI 316 is suitable for prolonged saltwater immersion in many marine applications, but ensure attention to crevice exposure, mating material compatibility, environmental severity, and maintenance to avoid localized corrosion.

ORFS plug with stainless steel UNF GZ, type ROV

Additional information

Material	SS – stainless steel
Standard length [m]	2

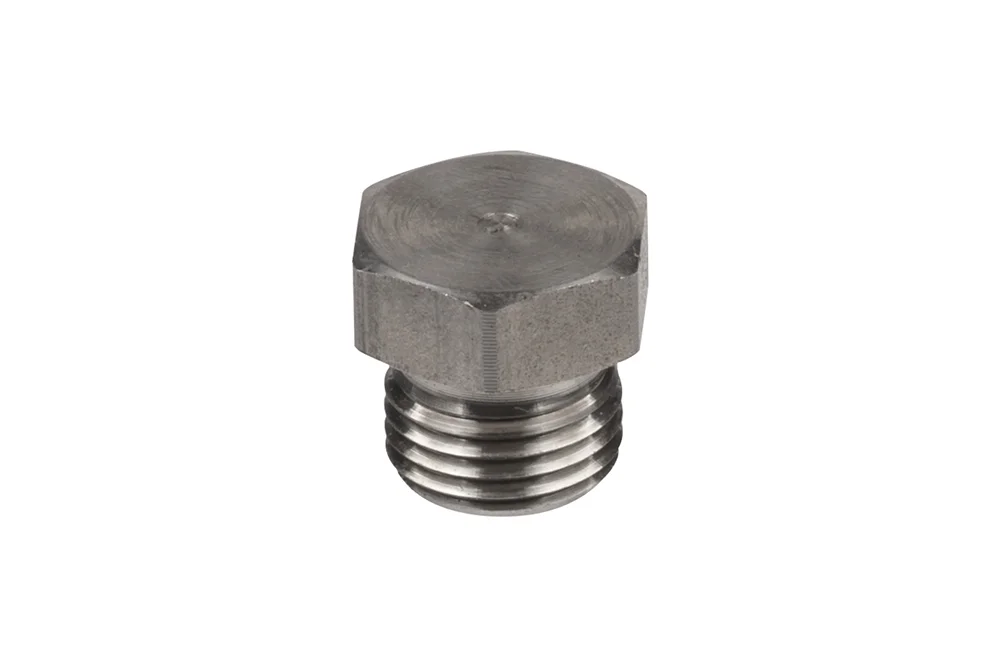

ORFS blind plug (cap) with external UNF thread, type ROV. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-ROV-09-SS	GZ ORFS plug 9/16"-18, SS	-	630	In stock	Enquiry
HO-ROV-11-SS	GZ ORFS plug 11/16"-16, SS	-	630	In stock	Enquiry
HO-ROV-13-SS	Blind plug GZ ORFS 13/16"-16, SS	-	630	In stock	Enquiry
HO-ROV-16-SS	GZ ORFS 1"-14 Blind Plug, SS	-	420	In stock	Enquiry
HO-ROV-19-SS	GZ ORFS plug 1.3/16"-12, SS	-	420	In stock	Enquiry
HO-ROV-23-SS	GZ ORFS plug 1.7/16"-12, SS	-	420	In stock	Enquiry
HO-ROV-27-SS	GZ ORFS plug 1.11/16"-12, SS	-	280	In stock	Enquiry
HO-ROV-32-SS	Blind plug GZ ORFS 2"-12, SS	-	280	In stock	Enquiry
