Is the PERROT lever connector socket with flared end for hose, carbon steel, galvanized, SBR sealing, suitable for continuous operation at 10 bar?

PERROT lever connector socket with spun end for hose, carbon steel, KMS Format; based on the provided specification, it is suitable for continuous operation at up to 10 bar for most sizes. Note the explicit manufacturer limit: working pressure is "up to 10 bar" generally, but for the 216 mm size the limit is reduced to 8 bar. Also consider that the sealing material is SBR (styrene-butadiene rubber), which performs well in many applications but has limitations with certain oils, fuels, high temperatures and aggressive chemicals.verify compatibility with your fluid and temperature conditions. Finally ensure proper installation, regular inspection and adherence to any application-specific safety factors; if operating at or near 10 bar in critical service, consult the manufacturer or technical datasheet for confirmation and any additional recommendations.

Can the PERROT lever connector socket with spun end for hose, carbon steel, KMS be used in wastewater treatment plants at pressures up to 8â10 bar?

Yes. The PERROT lever connector socket with spun end for hose, carbon steel, KMS can be used in wastewater treatment plants at pressures up to 8â10 bar. The product spec lists working pressure up to 10 bar (with a note of up to 8 bar for size 216 mm), material carbon steel galvanized and SBR sealing, and the description explicitly cites wastewater treatment plants and sewage discharge among typical applications. Ensure you select the correct size (216 mm limited to 8 bar) and verify compatibility with your system, fluids, and local regulations.

Can the PERROT lever connector socket with flared end for hose, carbon steel, galvanized, SBR be used in groundwater drainage systems?

Yes. The PERROT lever connector socket with spun end for hose, carbon steel, KMS Format can be used in groundwater drainage systems. Reasoning from the product description: - Application list explicitly includes groundwater drainage. - Material is carbon steel with galvanised coating, offering good mechanical strength and corrosion resistance suitable for buried or exposed drainage installations. - Sealing material is SBR, a common elastomer used for water tightness; suitable for non-aggressive groundwater environments. - Working pressure up to 10 bar (up to 8 bar for 216 mm) exceeds typical pressures encountered in gravity-driven groundwater drainage and is adequate for many pumped systems. Considerations and limitations: - Verify site-specific water chemistry (aggressive ions, high chlorides, acidic conditions). prolonged exposure to aggressive groundwater may require more corrosion-resistant materials (e.g., stainless steel) or additional protective coatings. - Confirm compatibility of SBR seals with any contaminants present (oils, solvents, fuels). SBR performs well for water but can degrade with certain chemicals. - Ensure correct dimensioning, installation procedures, and pressure ratings for the specific depth, backfill, and any transient loads or surge pressures. - For long-term submerged use or municipal standards, check local regulations and project specifications to confirm compliance. Conclusion: Suitable for typical groundwater drainage systems, provided water chemistry and project-specific requirements are checked and met.

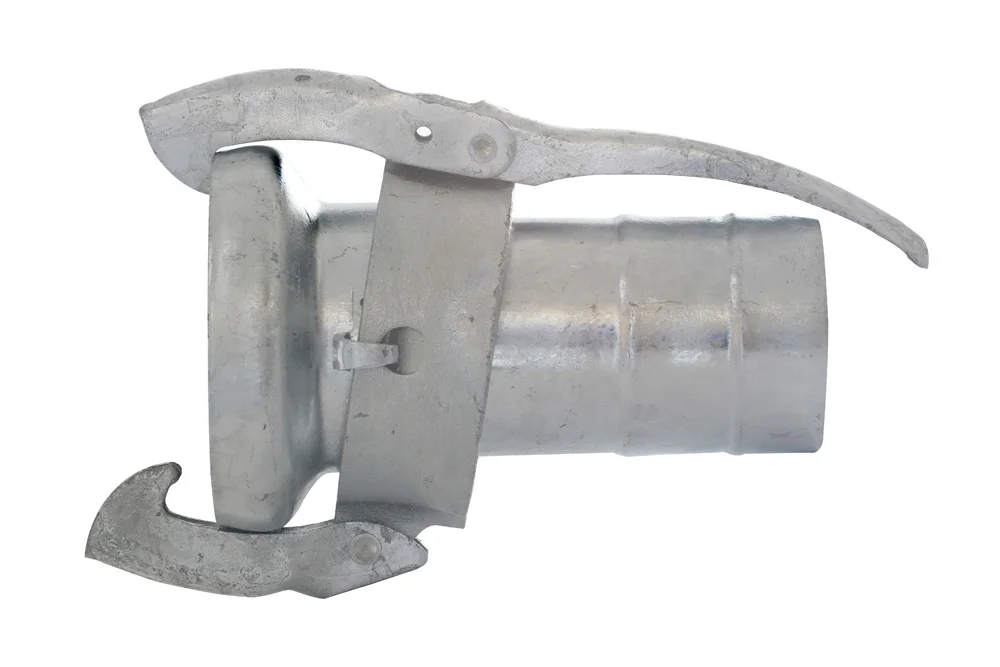

A PERROT lever coupling socket with fitting rolled for hose, steel carbon, KMS

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

A PERROT lever coupling socket with fitting rolled for hose with wide application, among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel carbon, galvanized. Sealing: SBR. Working pressure: up to 10 bar (up to 8 bar – for size 216 mm).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HC-KMS-050-050	Socket KMS 50 mm with rolled end for 50 mm hose, galvanized steel	50	10	In stock	Enquiry
HC-KMS-070-070	Socket KMS 70 mm with rolled end for 70 mm hose, galvanized steel	70	10	In stock	Enquiry
HC-KMS-089-075	Socket KMS 89 mm with rolled end for 75 mm hose, galvanized steel	75	10	In stock	Enquiry
HC-KMS-089-080	Socket KMS 89 mm with rolled end for 80 mm hose, galvanized steel	80	10	In stock	Enquiry
HC-KMS-089-090	Socket KMS 89 mm with rolled end for 90 mm hose, galvanized steel	90	10	In stock	Enquiry
HC-KMS-108-075	Socket KMS 108 mm with rolled end for 75 mm hose, galvanized steel	75	10	In stock	Enquiry
HC-KMS-108-100	Socket KMS 108 mm with rolled end for 100 mm hose, galvanized steel	100	10	In stock	Enquiry
HC-KMS-108-110	Socket KMS 108 mm with rolled end for 110 mm hose, galvanized steel	110	10	In stock	Enquiry
HC-KMS-133-125	Socket KMS 133 mm with rolled end for 125 mm hose, galvanized steel	125	10	In stock	Enquiry
HC-KMS-159-150	Socket KMS 159 mm with rolled end for 150 mm hose, galvanized steel	150	10	In stock	Enquiry
HC-KMS-216-200	Socket KMS 216 mm with rolled end for 200 mm hose, galvanized steel	200	8	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A PERROT lever coupling socket with fitting rolled for hose with wide application, among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel carbon, galvanized. Sealing: SBR. Working pressure: up to 10 bar (up to 8 bar – for size 216 mm).
