Can the MRF N/C brass pneumatic throttling and check valve for actuator directly mount to actuator ports and still allow easy hose disconnection via the plug-in coupling?

Yes. The MRF N/C brass pneumatic throttling and check valve, for actuator is designed for direct mounting to actuator ports and still allows easy hose disconnection via its plugâin coupling. Its compact nickelâplated brass body and integrated plugâin coupling permit direct installation at the actuator connection while preserving quick disconnect capability for pneumatic hoses. The valve provides adjustable flow control (knob/screw with locking nut) and checkâvalve function, supports up to 10 bar (nominal flow specified at 6.3 bar), and operates from â10 Â°C to +70 Â°C, so it is suitable for actuator mounting without sacrificing ease of hose disassembly.

How do I lock the adjustment on the MRF N/C brass pneumatic throttling and check valve for actuator to prevent accidental changes?

To lock the adjustment on the MRF N/C brass pneumatic throttling and check valve, for actuator: 1. Set the desired flow using the control knob or screwdriver in the throttling direction. 2. Tighten the integrated locking nut against the body to secure the control shaft and prevent rotation. 3. Confirm the setting by attempting a light turn of the knob; if it moves, re-tighten the locking nut. 4. For added security, after locking you may mark the nut/knob position with paint or a tamper-evident seal. Ensure system pressure is relieved or within safe limits before making adjustments.

Does the MRF N/C brass pneumatic throttling and check valve, for actuator, support different flow rates at 6.3 bar based on knob vs screwdriver adjustment?

Yes. The MRF N/C brass pneumatic throttling and check valve, for actuator supports different flow rates at 6.3 bar depending on whether you use the knob or the screwdriver for adjustment. The product description states adjustment change via a control knob and/or screwdriver and the specified nominal flow is given at 6.3 bar in the throttled direction. Both adjustment methods alter the throttling element position (and can be locked with the nut), so each setting corresponds to a different restricted or freer flow. The operating pressure (up to 10 bar), temperature range and body material do not change this behavior. the selected knob or screwdriver position determines the flow rate at 6.3 bar.

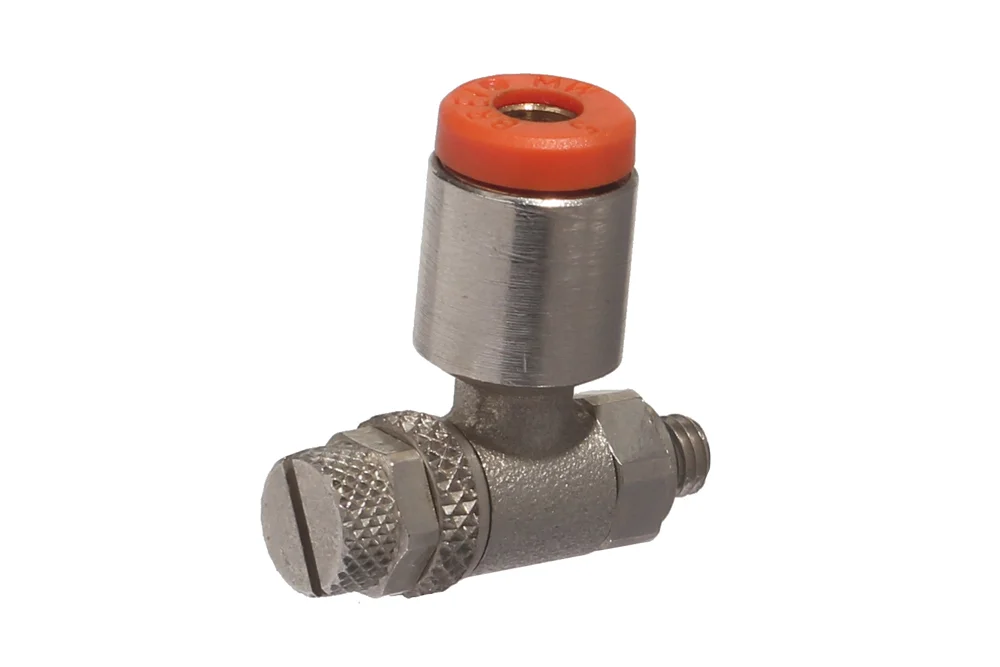

Valve throttle check pneumatic brass MRF N/C, for the actuator

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Valve throttle check type MRF N/C for direct mounting in connections the actuator, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment by means of an adjustment knob and/or a screwdriver; possibility of securing the setting with a lock nut. stated flow nominal at pressure 6.3 bar (in direction throttled). pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material the body: brass nickel-plated.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9031003	Throttle check valve for actuator MRF N/C, hose 5 mm, M5 male	-	10	In stock	Enquiry
MW-9031014	Throttle check valve for actuator MRF N/C, hose 12 mm, 1/4" BSP male	-	10	In stock	Enquiry
MW-9031016	Throttle check valve for actuator MRF N/C, hose 12 mm, 1/2" BSP male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve throttle check type MRF N/C for direct mounting in connections the actuator, used in systems pneumatic for adjustment rate flowing stream compressed air and direction flow. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment by means of an adjustment knob and/or a screwdriver; possibility of securing the setting with a lock nut. stated flow nominal at pressure 6.3 bar (in direction throttled). pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material the body: brass nickel-plated.
