Is the Pneumatic foot valve with protective cover, 5/2 function, PEV series suitable for continuous operation at 10 bar and +60Â°C?

Yes. The Pneumatic foot valve with protective cover, 5/2 function, PEV series is specified for continuous operation up to 10 bar and an operating temperature range to +60Â°C. Given the stated working pressure range (2.5â10 bar) and operating temperature (-10Â°C to +60Â°C), it is suitable for continuous use at 10 bar and +60Â°C, provided the actual application does not exceed those limits and other system factors (media compatibility, duty cycle beyond nominal flow, mounting, ambient conditions) are acceptable. Ensure nominal flow (840 l/min at 6 bar, Îp = 1 bar) meets your requirements and verify any site-specific constraints or safety margins before prolonged operation at the upper limits.

Can the Pneumatic foot valve with protective cover, 5/2 function, PEV series be used with 1/4" connections on systems operating at 2.5â10 bar?

Yes. The Pneumatic foot valve with protective cover, 5/2 function, PEV series can be used with 1/4" connections on systems operating at 2.5â10 bar. Its specifications list Connection: 1/4" and Working pressure: from 2.5 bar to 10 bar, so it is suitable for that pressure range and connection size.

Does the Pneumatic foot valve with protective cover, 5/2 function, PEV series require a specific mounting orientation for optimal operation?

Pneumatic foot valve with protective cover, 5/2 function, PEV series does not state a mandatory specific mounting orientation in the provided description. However, for optimal and reliable operation observe these practical recommendations: - Mount where the operator can comfortably and safely actuate the pedal without excessive tilt or side loading. - Ensure the front plane sockets and connections are accessible (connection: 1/4") and avoid sharp bends or stress on tubing. - Install so drainage of any condensate and debris is not impeded; avoid mounting inverted if debris could collect in moving parts. - Maintain ambient conditions within the specified range (â10Â°C to +60Â°C) and operating pressure between 2.5 and 10 bar for correct valve function and flow performance (nominal flow 840 l/min at 6 bar, Îp = 1 bar). - Provide secure mounting to prevent vibration or movement that could affect actuation or wear. Following these guidelines will ensure the Pneumatic foot valve with protective cover, 5/2 function, PEV series operates reliably even though no single fixed orientation is explicitly required.

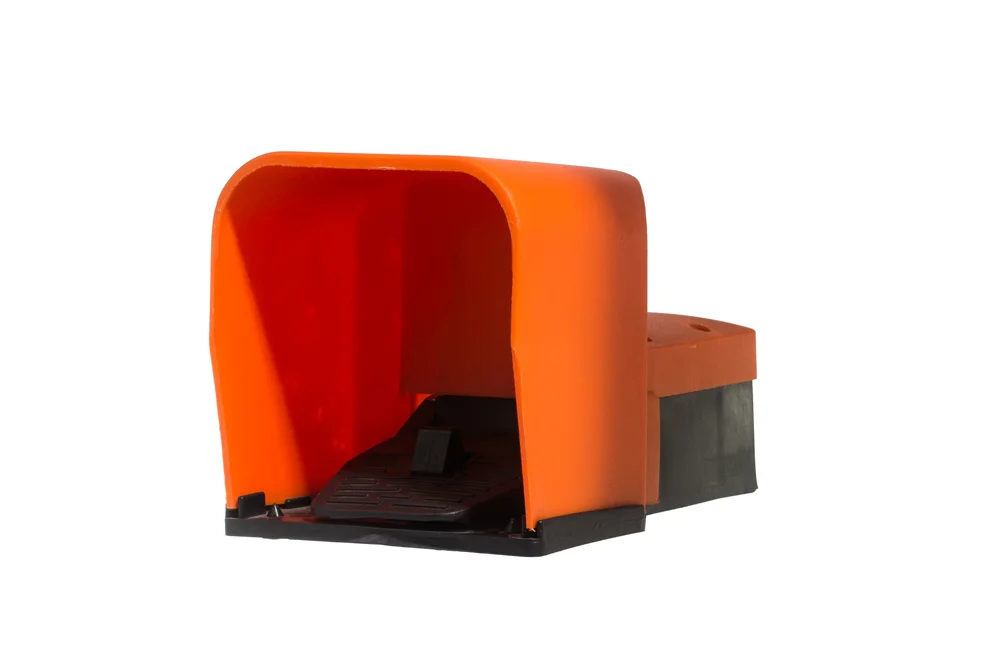

Valve foot pneumatic with cover protective, Function 5/2, series PEV

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10

Straight valve foot with cover protective and sockets in plane face, is used to control foot through operator devices in systems pneumatics. connection: 1/4″. pressure working: od 2.5 bar up to 10 bar. Operating temperature: -10°C up to +60°C. flow nominal: 840 l/min (at pressure inlet 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W3120000001	Valve foot PEV 35 PES PR, 5/2, monostable, 1/4" BSP female	-	10	In stock	Enquiry
MW-W3120000011	Valve foot PEV 35 PEB PR, 5/2, bistable, 1/4" BSP female	-	10	In stock	Enquiry
MW-W3120000021	Valve foot PEV 35 PEC PR, 5/2, monostable, 1/4" BSP female, lock	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight valve foot with cover protective and sockets in plane face, is used to control foot through operator devices in systems pneumatics. connection: 1/4″. pressure working: od 2.5 bar up to 10 bar. Operating temperature: -10°C up to +60°C. flow nominal: 840 l/min (at pressure inlet 6 bar Δp = 1 bar).
