Is HPZ precision hydraulic pipe (HPC) available with Cr VIâfree galvanization and standard 6 m sections (custom 1â2 m cuts on request)?

Yes. HPZ precision hydraulic pipe, HPC Format is available with Cr VIâfree galvanization and standard 6 m sections. Material is E235+N (EN 10305â4) / St (HPC1) / 37.4 NBK (DIN 1630, HPZ1). The specified working pressure follows DIN 2413â93. Standard length per section is 6 m; shipping in 1 m, 2 m or other lengths can be arranged upon agreement of transport costs.

Can HPZ precision hydraulic pipe (HPC) E235+N be supplied in custom lengths shorter than 6 m and how are transport costs handled?

Yes - HPZ precision hydraulic pipe (HPC) E235+N can be supplied in custom lengths shorter than the standard 6 m. Standard sections are 6 m, but shipping in 1 m, 2 m or other shorter lengths is possible by agreement. Transport costs for nonâstandard lengths are handled by mutual arrangement: shorter or special cuts may incur additional transport or handling charges which should be agreed upon between buyer and supplier prior to order confirmation.

Does HPZ precision hydraulic pipe (HPC) E235+N meet DIN 2413â93 theoretical working pressure specifications and material St (HPC1)?

Yes. HPZ precision hydraulic pipe, HPC E235+N meets the stated specifications: - The product description explicitly says the specified working pressure is the theoretical pressure according to DIN 2413â93, so the pipe is rated to that standard. - Material is given as E235+N per EN 10305â4, which corresponds to the mild steel required for precision hydraulic applications and aligns with the stated material St (HPC1). - Additional references (37.4 NBK according to DIN 1630 / HPZ1) and cold drawn seamless construction support suitability for hydraulic use. - Galvanized coating is Cr(VI)-free and standard section length is 6 m (shorter shipping lengths by agreement). Conclusion: HPZ precision hydraulic pipe, HPC E235+N conforms to DIN 2413â93 theoretical working pressure requirements and uses the specified St (HPC1) material.

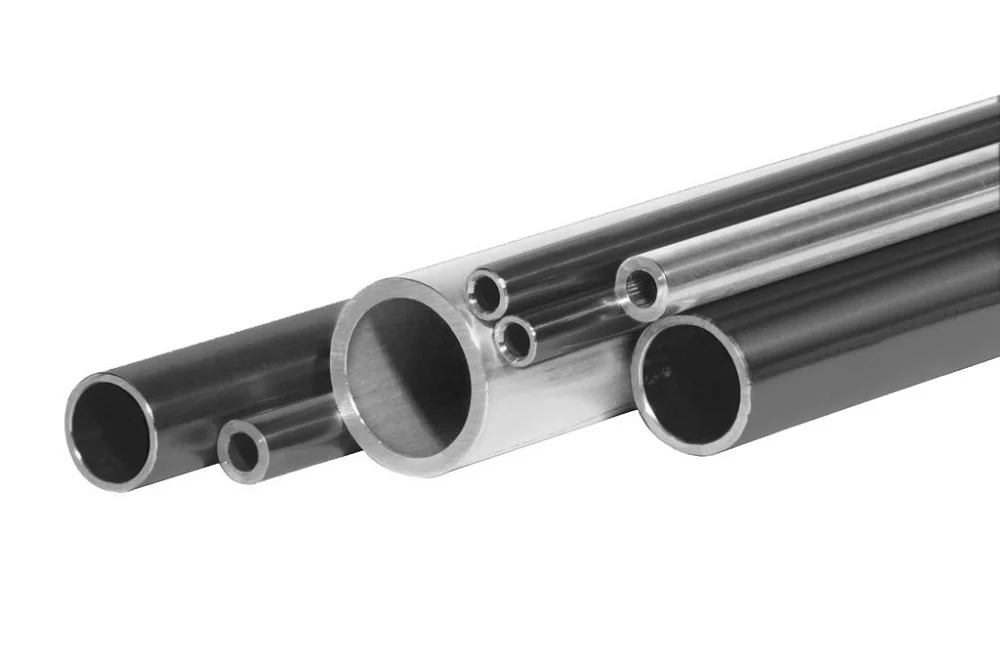

HPZ precision hydraulic pipe, HPC

All products, Hydraulic pipes/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 15, 6, 60/ 120

Seamless pipe made of improved steel, cold drawn. The specified working pressure is the theoretical pressure according to DIN 2413-93. Material: E235+N in accordance with EN 10305-4. St (HPC1). 37.4 NBK according to DIN 1630 (HPZ1). The coating of the galvanized pipe is free from Cr VI. Standard length of the pipe (one section): 6 m (shipping in sections of 1 m, 2 m, or longer upon agreement of transport costs).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HR-HPC1-06X1,0	Precision hydraulic pipe 6x1 mm E235, galvanized	-	470	In stock	Enquiry
HR-HPC1-08X1,0	Precision hydraulic pipe 8x1 mm E235, galvanized	-	352	In stock	Enquiry
HR-HPC1-08X1,5	Precision hydraulic pipe 8x1.5 mm E235, galvanized	-	499	In stock	Enquiry
HR-HPC1-10X1,0	Precision hydraulic pipe 10x1 mm E235, galvanized	-	282	In stock	Enquiry
HR-HPC1-10X1,5	Precision hydraulic pipe 10x1.5 mm E235, galvanized	-	423	In stock	Enquiry
HR-HPC1-10X2,0	Precision hydraulic pipe 10x2 mm E235, galvanized	-	564	In stock	Enquiry
HR-HPC1-12X1,0	Precision hydraulic pipe 12x1 mm E235, galvanized	-	235	In stock	Enquiry
HR-HPC1-12X1,5	Precision hydraulic pipe 12x1.5 mm E235, galvanized	-	353	In stock	Enquiry
HR-HPC1-12X2,0	Precision hydraulic pipe 12x2 mm E235, galvanized	-	470	In stock	Enquiry
HR-HPC1-14X2,0	Precision hydraulic pipe 14x2 mm E235, galvanized	-	403	In stock	Enquiry
HR-HPC1-15X1,5	Precision hydraulic pipe 15x1.5 mm E235, galvanized	-	282	In stock	Enquiry
HR-HPC1-15X2,0	Precision hydraulic pipe 15x2 mm E235, galvanized	-	376	In stock	Enquiry
HR-HPC1-16X2,0	Precision hydraulic pipe 16x2 mm E235, galvanized	-	352	In stock	Enquiry
HR-HPC1-16X2,5	Precision hydraulic pipe 16x2.5 mm E235, galvanized	-	441	In stock	Enquiry
HR-HPC1-18X1,5	Precision hydraulic pipe 18x1.5 mm E235, galvanized	-	235	In stock	Enquiry
HR-HPC1-18X2,0	Precision hydraulic pipe 18x2 mm E235, galvanized	-	313	In stock	Enquiry
HR-HPC1-20X2,0	Precision hydraulic pipe 20x2 mm E235, galvanized	-	282	In stock	Enquiry
HR-HPC1-20X2,5	Precision hydraulic pipe 20x2.5 mm E235, galvanized	-		In stock	Enquiry
HR-HPC1-20X3,0	Precision hydraulic pipe 20x3 mm E235, galvanized	-	423	In stock	Enquiry
HR-HPC1-22X1,5	Precision hydraulic pipe 22x1.5 mm E235, galvanized	-	192	In stock	Enquiry
HR-HPC1-22X2,0	Precision hydraulic pipe 22x2 mm E235, galvanized	-	256	In stock	Enquiry
HR-HPC1-22X3,0	Precision hydraulic pipe 22x3 mm E235, galvanized	-	384	In stock	Enquiry
HR-HPC1-25X2,5	Precision hydraulic pipe 25x2.5 mm E235, galvanized	-	282	In stock	Enquiry
HR-HPC1-25X3,0	Precision hydraulic pipe 25x3 mm E235, galvanized	-	338	In stock	Enquiry
HR-HPC1-25X4,0	Precision hydraulic pipe 25x4 mm E235, galvanized	-	451	In stock	Enquiry
HR-HPC1-28X1,5	Precision hydraulic pipe 28x1.5 mm E235, galvanized	-	151	In stock	Enquiry
HR-HPC1-28X2,0	Precision hydraulic pipe 28x2 mm E235, galvanized	-	201	In stock	Enquiry
HR-HPC1-28X2,5	Precision hydraulic pipe 28x2.5 mm E235, galvanized	-	252	In stock	Enquiry
HR-HPC1-28X3,0	Precision hydraulic pipe 28x3 mm E235, galvanized	-	302	In stock	Enquiry
HR-HPC1-30X3,0	Precision hydraulic pipe 30x3 mm E235, galvanized	-	282	In stock	Enquiry
HR-HPC1-30X4,0	Precision hydraulic pipe 30x4 mm E235, galvanized	-	376	In stock	Enquiry
HR-HPC1-30X5,0	Precision hydraulic pipe 30x5 mm E235, galvanized	-	470	In stock	Enquiry
HR-HPC1-35X2,0	Precision hydraulic pipe 35x2 mm E235, galvanized	-		In stock	Enquiry
HR-HPC1-35X3,0	Precision hydraulic pipe 35x3 mm E235, galvanized	-	242	In stock	Enquiry
HR-HPC1-38X3,0	Precision hydraulic pipe 38x3 mm E235, galvanized	-		In stock	Enquiry
HR-HPC1-38X4,0	Precision hydraulic pipe 38x4 mm E235, galvanized	-	297	In stock	Enquiry
HR-HPC1-42X2,0	Precision hydraulic pipe 42x2 mm E235 galvanized	-	134	In stock	Enquiry
HR-HPC1-42X3,0	Precision hydraulic pipe 42x3 mm E235, galvanized	-	201	In stock	Enquiry
HR-HPC1-42X4,0	Precision hydraulic pipe 42x4 mm E235, galvanized	-	269	In stock	Enquiry
HR-HPZ1-06X1,0	Precision hydraulic pipe 6x1 mm, St 37.4	-	470	In stock	Enquiry
HR-HPZ1-06X1,5	Precision hydraulic tube 6x1.5 mm, St 37.4	-	666	In stock	Enquiry
HR-HPZ1-08X1,0	Precision hydraulic pipe 8x1 mm, St 37.4	-	352	In stock	Enquiry
HR-HPZ1-08X1,5	Precision hydraulic pipe 8x1.5 mm, St 37.4	-	499	In stock	Enquiry
HR-HPZ1-08X2,0	Precision hydraulic pipe 8x2 mm, St 37.4	-	705	In stock	Enquiry
HR-HPZ1-10X1,0	Precision hydraulic pipe 10x1 mm, St 37.4	-	282	In stock	Enquiry
HR-HPZ1-10X1,5	Precision hydraulic pipe 10x1.5 mm, St 37.4	-	423	In stock	Enquiry
HR-HPZ1-10X2,0	Precision hydraulic pipe 10x2 mm, St 37.4	-	564	In stock	Enquiry
HR-HPZ1-12X1,0	Precision hydraulic pipe 12x1 mm, St 37.4	-	235	In stock	Enquiry
HR-HPZ1-12X1,5	Precision hydraulic pipe 12x1.5 mm, St 37.4	-	353	In stock	Enquiry
HR-HPZ1-12X2,0	Precision hydraulic pipe 12x2 mm, St 37.4	-	470	In stock	Enquiry
HR-HPZ1-12X2,5	Precision hydraulic pipe 12x2.5 mm, St 37.4	-	588	In stock	Enquiry
HR-HPZ1-12X3,0	Precision hydraulic pipe 12x3 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-13,5X2,0	Precision hydraulic pipe 13.5x2 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-13,5X2,3	Precision hydraulic pipe 13.5x2.3 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-14X2,0	Precision hydraulic pipe 14x2 mm, St 37.4	-	403	In stock	Enquiry
HR-HPZ1-14X3,0	Precision hydraulic pipe 14x3 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-15X1,5	Precision hydraulic pipe 15x1.5 mm, St 37.4	-	282	In stock	Enquiry
HR-HPZ1-15X2,0	Precision hydraulic pipe 15x2 mm, St 37.4	-	376	In stock	Enquiry
HR-HPZ1-16X1,5	Precision hydraulic pipe 16x1.5 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-16X2,0	Precision hydraulic pipe 16x2 mm, St 37.4	-	352	In stock	Enquiry
HR-HPZ1-16X2,5	Precision hydraulic pipe 16x2.5 mm, St 37.4	-	441	In stock	Enquiry
HR-HPZ1-16X3,0	Precision hydraulic pipe 16x3 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-18X1,5	Precision hydraulic pipe 18x1.5 mm, St 37.4	-	235	In stock	Enquiry
HR-HPZ1-18X2,0	Precision hydraulic pipe 18x2 mm, St 37.4	-	313	In stock	Enquiry
HR-HPZ1-18X2,5	Hydraulic precision pipe 18x2.5 mm, St 37.4	-	392	In stock	Enquiry
HR-HPZ1-18X3,0	Precision hydraulic pipe 18x3 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-20X2,0	Precision hydraulic pipe 20x2 mm, St 37.4	-	282	In stock	Enquiry
HR-HPZ1-20X2,5	Precision hydraulic pipe 20x2.5 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-20X3,0	Precision hydraulic pipe 20x3 mm, St 37.4	-	423	In stock	Enquiry
HR-HPZ1-20X4,0	Hydraulic precision pipe 20x4 mm, St 37.4	-	564	In stock	Enquiry
HR-HPZ1-22X1,5	Precision hydraulic pipe 22x1.5 mm, St 37.4	-	192	In stock	Enquiry
HR-HPZ1-22X2,0	Precision hydraulic pipe 22x2 mm, St 37.4	-	256	In stock	Enquiry
HR-HPZ1-22X2,5	Hydraulic precision tube 22x2.5 mm, St 37.4	-	320	In stock	Enquiry
HR-HPZ1-22X3,0	Precision hydraulic pipe 22x3 mm, St 37.4	-	384	In stock	Enquiry
HR-HPZ1-25X2,0	Precision hydraulic pipe 25x2 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-25X2,5	Precision hydraulic pipe 25x2.5 mm, St 37.4	-	282	In stock	Enquiry
HR-HPZ1-25X3,0	Precision hydraulic pipe 25x3 mm, St 37.4	-	338	In stock	Enquiry
HR-HPZ1-25X3,5	Precision hydraulic pipe 25x3.5 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-25X4,0	Precision hydraulic pipe 25x4 mm, St 37.4	-	451	In stock	Enquiry
HR-HPZ1-28X1,5	Precision hydraulic pipe 28x1.5 mm, St 37.4	-	151	In stock	Enquiry
HR-HPZ1-28X2,0	Precision hydraulic pipe 28x2 mm, St 37.4	-	201	In stock	Enquiry
HR-HPZ1-28X2,5	Precision hydraulic pipe 28x2.5 mm, St 37.4	-	252	In stock	Enquiry
HR-HPZ1-28X3,0	Precision hydraulic pipe 28x3 mm, St 37.4	-	302	In stock	Enquiry
HR-HPZ1-30X2,5	Precision hydraulic pipe 30x2.5 mm, St 37.4	-	235	In stock	Enquiry
HR-HPZ1-30X3,0	Precision hydraulic pipe 30x3 mm, St 37.4	-	282	In stock	Enquiry
HR-HPZ1-30X4,0	Precision hydraulic pipe 30x4 mm, St 37.4	-	376	In stock	Enquiry
HR-HPZ1-30X5,0	Precision hydraulic pipe 30x5 mm, St 37.4	-	470	In stock	Enquiry
HR-HPZ1-35X3,0	Precision hydraulic pipe 35x3 mm, St 37.4	-	242	In stock	Enquiry
HR-HPZ1-38X2,0	Hydraulic precision pipe 38x2 mm, St 37.4	-		In stock	Enquiry
HR-HPZ1-38X4,0	Precision hydraulic pipe 38x4 mm, St 37.4	-	297	In stock	Enquiry
HR-HPZ1-38X5,0	Precision hydraulic pipe 38x5 mm, St 37.4	-	371	In stock	Enquiry
HR-HPZ1-38X6,0	Precision hydraulic pipe 38x6 mm, St 37.4	-	445	In stock	Enquiry
HR-HPZ1-42X2,0	Precision hydraulic pipe 42x2.0 mm, St 37.4	-	134	In stock	Enquiry
HR-HPZ1-42X3,0	Precision hydraulic pipe 42x3 mm, St 37.4	-	201	In stock	Enquiry
HR-HPZ1-42X4,0	Precision hydraulic pipe 42x4 mm, St 37.4	-	269	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Seamless pipe made of improved steel, cold drawn. The specified working pressure is the theoretical pressure according to DIN 2413-93. Material: E235+N in accordance with EN 10305-4. St (HPC1). 37.4 NBK according to DIN 1630 (HPZ1). The coating of the galvanized pipe is free from Cr VI. Standard length of the pipe (one section): 6 m (shipping in sections of 1 m, 2 m, or longer upon agreement of transport costs).
