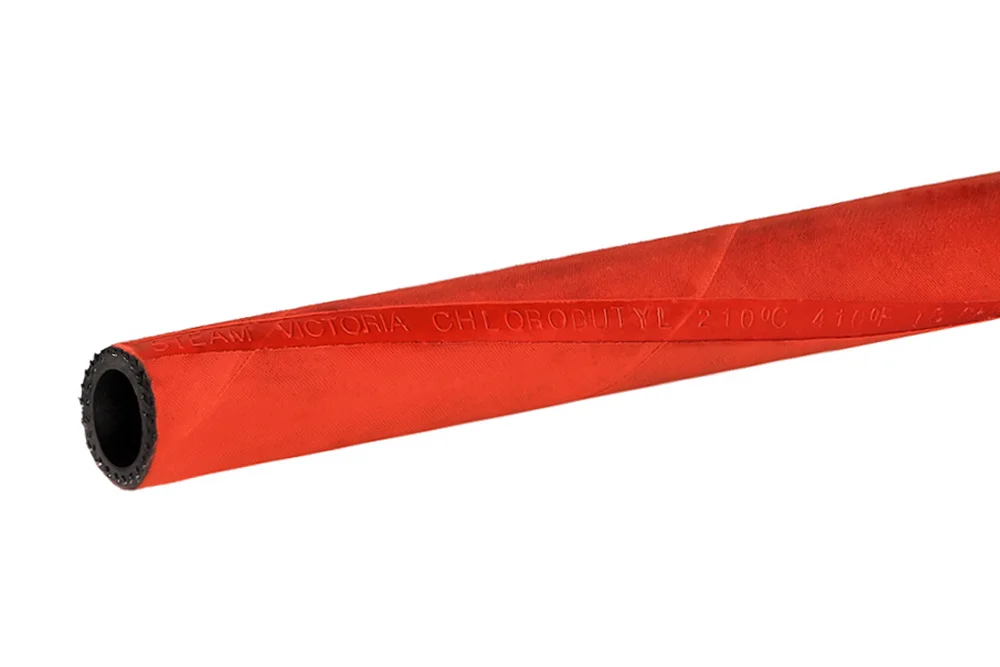

VICTORIA® saturated steam delivery hose, PREMIUM
Strong and flexible pressure hose with steel reinforcement for conveying saturated steam. The inner layer has good resistance to high temperatures, saturated steam, and the phenomenon of pop-corning (destruction of the inner layer due to the ingress of steam condensate). It can temporarily withstand superheated steam at a temperature of 230°C and a pressure of 18 bar; prolonged use with superheated steam reduces the hose’s lifespan. The outer layer is resistant to temperature, weather conditions, abrasion, and aging. The hose is used in the chemical, petrochemical, and energy industries, as well as in other industrial applications. It is not intended for steam cleaners (“dry steam cleaners”). For steam, use special screw-on fittings designed for steam. To extend the lifespan, the hose should be emptied of steam after use to avoid condensate accumulation. Safety factor: 10:1. Standard length: 60 m. Inner layer: black IIR rubber. Reinforcement: double steel wire braid. Outer layer: red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: from -40°C to +210°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Strong and flexible pressure hose with steel reinforcement for conveying saturated steam. The inner layer has good resistance to high temperatures, saturated steam, and the phenomenon of pop-corning (destruction of the inner layer due to the ingress of steam condensate). It can temporarily withstand superheated steam at a temperature of 230°C and a pressure of 18 bar; prolonged use with superheated steam reduces the hose’s lifespan. The outer layer is resistant to temperature, weather conditions, abrasion, and aging. The hose is used in the chemical, petrochemical, and energy industries, as well as in other industrial applications. It is not intended for steam cleaners (“dry steam cleaners”). For steam, use special screw-on fittings designed for steam. To extend the lifespan, the hose should be emptied of steam after use to avoid condensate accumulation. Safety factor: 10:1. Standard length: 60 m. Inner layer: black IIR rubber. Reinforcement: double steel wire braid. Outer layer: red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: from -40°C to +210°C.
Additional information
| Material | IIR – butyl rubber |
|---|---|
| Maximum operating temperature [°C] | 210 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 60, 60 / 120 |
| Reinforcement | 2 steel braids |
