Kit for measuring pressure in a hydraulic system with quick coupling, without pressure gauges, TEMA SYSTEM 100

All products, Measurement sets/

Additional information

Material	P – material (plastic)

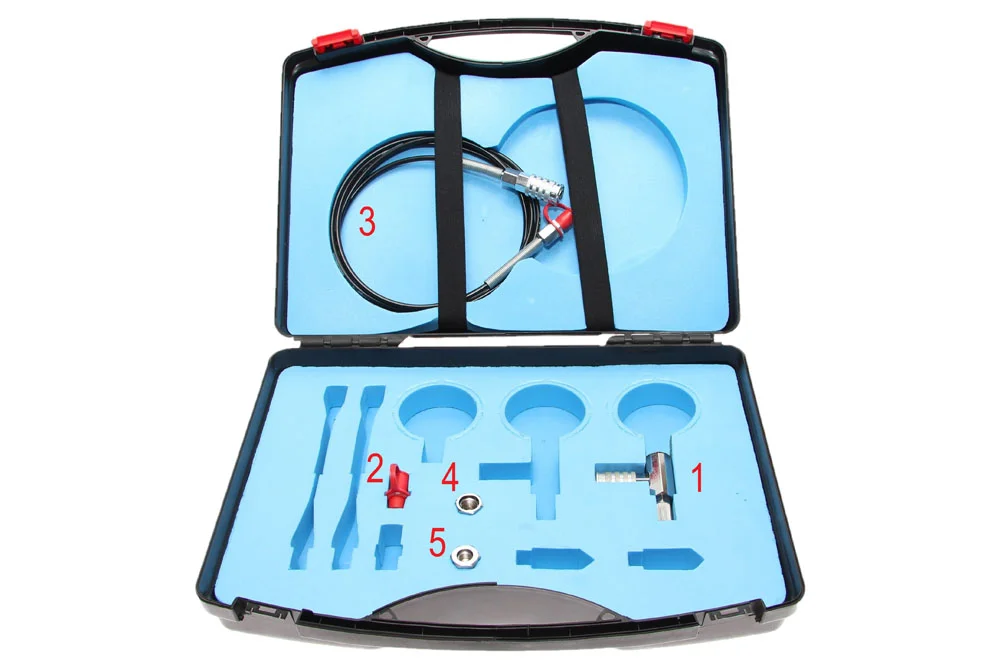

The kit is equipped with miniature measuring quick couplings DN1.2 of Swedish manufacture, intended for measuring static and dynamic pressure and vacuum in hydraulic systems. Based on the classic “push to connect” quick coupling design with a plug-locking mechanism consisting of balls, a spring and a locking sleeve. The socket and plug are equipped with valves that ensure leak-free connection and disconnection and tightness, even at 90% vacuum. The measuring plugs are made of hardened steel, durable and maintenance-free. Connections with a male thread are sealed with an O-ring recessed into the face surface (type A) or an O-ring at the face surface (type B). This allows simple and quick configuration of connections. The remaining elements of the measuring set are pressure gauges (not included), mounted in measuring holders, adapters and measuring hoses. The vent valve in the measuring holder allows air bubbles to be removed from the system, which increases the accuracy of dynamic pressure measurement. The kit can be used for pressure measurements on machines equipped with TEMA SYSTEM 100 measuring plugs (some working machines, e.g., VOLVO, HIAB, SAMSUNG) or by installing plugs in the system during measurement. The flexible adapter TA-M-139 allows the kit to be used for measurements on the widely used M16x2-threaded connections. Any suitable type of pressure gauge (not included) with a typical pressure-gauge connection with a 1/4″ BSP male thread can be used for measurements with the kit. Recommended pressure gauge version: 63 mm gauge type FM-631 – bottom connection. The pressure gauge is sealed in the holder socket with a thread washer and a 10.8×2.2 O-ring, or with a pressure-gauge washer inside the socket. The kit is supplied in a plastic case and contains the following items: 1. Measuring holder for connection at low pressure (1/4″ BSP pressure-gauge connection, quick coupling socket, vent). 2. Measuring plug, 1/8″ BSP male thread, type A, plastic cap. 3. Measuring hose (DN2, 630 bar), L=2.5 m with quick coupling plug TA-M-120 and socket TA-M-150. 4. Adapter, 1/4″ BSP female / 1/8″ BSP male thread, type A. 5. Adapter, 1/8″ BSP female / 1/4″ BSP male thread, type B. Sealing: NBR rubber. Working pressure: up to 600 bar, for TA-M-120 plugs – 400 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TA-M-101	Basic measurement set TEMA SYSTEM 100 (without pressure gauges)	-	-	In stock	0 zł		Enquiry
