Can Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA be used with media at 200Â°C and still maintain sealing and performance?

Yes. Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA can be used with media at 200Â°C and still maintain sealing and performance, provided the media is compatible with the listed materials. The product specification states an operating temperature range up to +200Â°C and lists AISI 316Ti for the main wetted components, AISI 420 for the balls, and Viton (FKM) for seals. AISI 316Ti offers good highâtemperature corrosion resistance, and Viton seals are rated for continuous use up to around 200Â°C (with some grades handling short excursions slightly above). Working pressure is 35 bar, and the couplingâs flow and valve characteristics are specified at typical conditions. Caveats: ensure the specific Viton grade used in your unit is rated for continuous 200Â°C exposure and compatible with your media (chemical compatibility and potential swelling/embrittlement). Also confirm that transient temperature spikes, pressure cycles, or abrasive/corrosive components in the media wonât degrade AISI 420 balls or springs. If critical, request manufacturer confirmation or perform applicationâspecific testing.

Is Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA suitable for continuous operation at 200Â°C?

Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA is specified with an operating temperature range of -15Â°C to +200Â°C and construction materials (AISI 316Ti, AISI 420, Viton) that support high-temperature resistance. Based on the provided data, it is suitable for continuous operation at 200Â°C, provided: system pressure does not exceed the 35 bar rating, Viton seals remain acceptable for your media and long-term thermal exposure, and there is no additional chemical or mechanical stress beyond the specification. For critical or long-duration applications, verify seal aging and perform application-specific testing or consult the manufacturer.

Can Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA withstand brief exposure to 200Â°C without seal degradation?

Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA. brief exposure to 200Â°C without seal degradation? Yes. The product specification lists Viton (FKM) sealing and an operating temperature range up to +200Â°C. For brief exposures at 200Â°C, the Viton seal remains within its rated temperature capability and should not degrade immediately. The couplingâs main components are AISI 316Ti and AISI 420 stainless steels, which tolerate 200Â°C without loss of mechanical integrity, and the stated working pressure (up to 35 bar) and flow characteristics remain applicable within the specified temperature limits. Caveats: long-term continuous exposure at or near 200Â°C, thermal cycling, chemical exposure, or pressures and media differing from test conditions can accelerate seal aging or affect performance. For critical applications, validate with the manufacturer or perform application-specific testing.

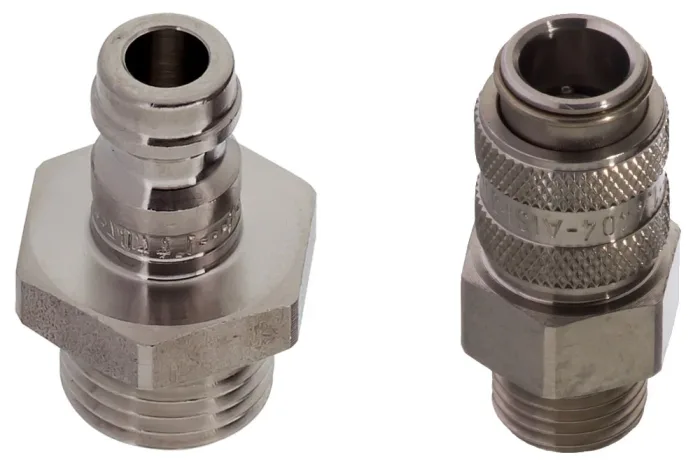

Plug and socket for coupling DN5 with male thread, stainless steel, series 21KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	SS – stainless steel
Standard length [m]	10, 2, 3

Quick coupling plug with free flow and Eurostandard DN5 (MINI) valve socket, series 21KA with external thread lBSP. Widely used in the industry where compact dimensions are required along with high flow efficiency and low pressure drop. One-handed operation. Flow rate: 560 l/min (Pe = 6 bar, Δp=0.5 bar – air), 8 l/min (Δp=1 bar Kv=0.48 – water). Working pressure: 35 bar. Material: AISI 316Ti steel (threaded part of the socket, coupling body, sleeve, valve, spring, and ring), AISI 420 steel (balls). Sealing: viton. Operating temperature: from -15°C to +200°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-21KAAW10EVX	Quick coupling socket 21KA DN5, GZ 1/8" BSP, AISI 316, viton	-	35	In stock	Enquiry
RE-21KAAW13EVX	Quick coupling socket 21KA DN5, GZ 1/4" BSP, AISI 316, viton	-	35	In stock	Enquiry
RE-21KAAW17EVX	Quick coupling socket 21KA DN5, GZ 3/8" BSP, AISI 316, viton	-	35	In stock	Enquiry
RE-21SFAW10EXX	Quick coupling plug 21SF DN5, GZ 1/8" BSP, AISI 316	-	35	In stock	Enquiry
RE-21SFAW13EXX	Quick coupling plug 21SF DN5, GZ 1/4" BSP, AISI 316	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug with free flow and Eurostandard DN5 (MINI) valve socket, series 21KA with external thread lBSP. Widely used in the industry where compact dimensions are required along with high flow efficiency and low pressure drop. One-handed operation. Flow rate: 560 l/min (Pe = 6 bar, Δp=0.5 bar – air), 8 l/min (Δp=1 bar Kv=0.48 – water). Working pressure: 35 bar. Material: AISI 316Ti steel (threaded part of the socket, coupling body, sleeve, valve, spring, and ring), AISI 420 steel (balls). Sealing: viton. Operating temperature: from -15°C to +200°C.
