Is the Quick connector DN7.8 without valve, with hose socket, hardened steel, series 25KA compatible with Eurostandard DN7.2 couplings from other manufacturers at 35 bar?

Yes. The Quick connector DN7.8 without valve, with hose socket, hardened steel, series 25KA is compatible with Eurostandard DN7.2 couplings from other manufacturers at 35 bar. The product description explicitly states it is interchangeable with all quick couplings according to Eurostandard DN7.2 and lists a working pressure of 35 bar, so it will mate and operate at that pressure when used with compliant DN7.2 Eurostandard couplings.

Does the Quick connector DN7.8 without valve, with hose socket, hardened steel, series 25KA support use with liquids and gases at 35 bar?

Yes. Quick connector DN7.8 without valve, with hose socket, hardened steel, series 25KA supports use with liquids and gases at 35 bar. It is intended for compressed air, liquids, and gases, has a working pressure of 35 bar, is made of hardened, galvanized steel, and operates from -20Â°C to +100Â°C.

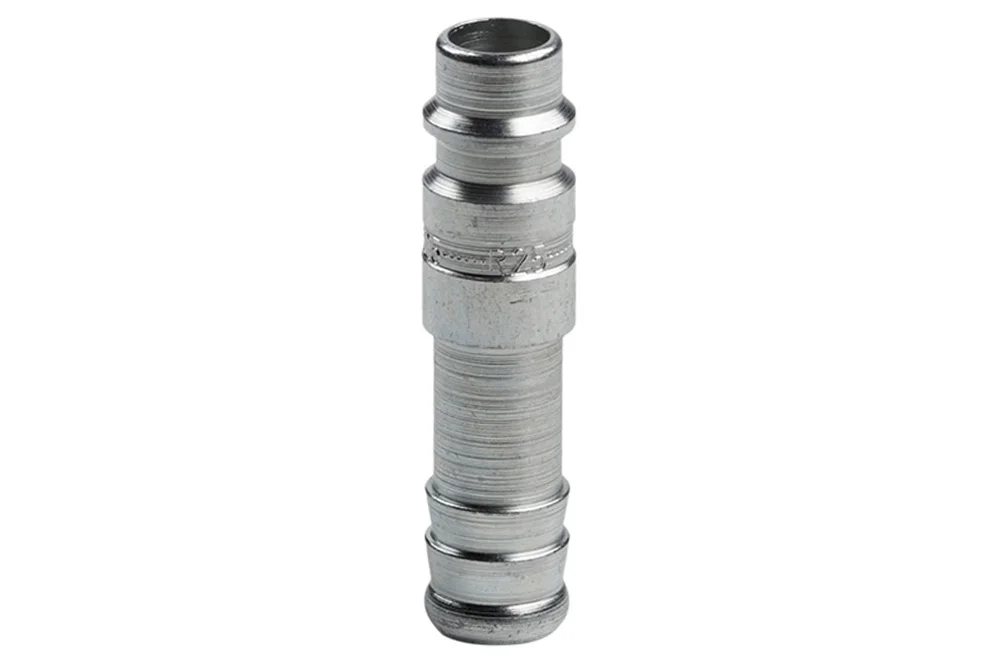

Quick connector DN7.8 without valve, with hose socket, hardened steel, series 25KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

Quick coupling plug DN7.8 without valve, with hose end, intended for compressed air, liquids, and gases. The plug is interchangeable with all quick couplings according to Eurostandard DN7.2 from other manufacturers. Working pressure: 35 bar. Material: hardened, galvanized steel. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-25SFTF06SXZ	Quick coupling plug 25SF DN7.8, for 6 mm hose, galvanized steel	6	35	In stock	Enquiry
RE-25SFTF08SXZ	Quick coupling plug 25SF DN7.8, for 8 mm hose, galvanized steel	8	35	In stock	Enquiry
RE-25SFTF09SXZ	Quick coupling plug 25SF DN7.8, for 9 mm hose, galvanized steel	8	35	In stock	Enquiry
RE-25SFTF10SXZ	Quick coupling plug 25SF DN7.8, for 10 mm hose, galvanized steel	10	35	In stock	Enquiry
RE-25SFTF13SXZ	Quick coupling plug 25SF DN7.8, for 13 mm hose, galvanized steel	12	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug DN7.8 without valve, with hose end, intended for compressed air, liquids, and gases. The plug is interchangeable with all quick couplings according to Eurostandard DN7.2 from other manufacturers. Working pressure: 35 bar. Material: hardened, galvanized steel. Operating temperature: from -20°C to +100°C.
