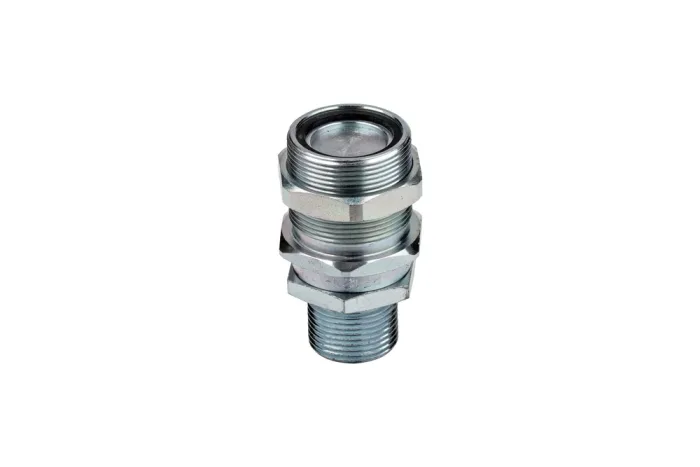

A/C quick connector plug with valve, UNF GZ, carbon steel
Screwed quick-connect plug with shut-off valve, finished with external UNF thread, intended for air conditioning and refrigeration, used for filling and emptying systems. Tightening under residual pressure is allowed (can be unscrewed under maximum working pressure). Material: carbon steel, galvanized. Sealing: CR – chloroprene rubber (from -40°C to +120°C). Refrigerant loss: 1.5 g/year. Max. vacuum: 2 mm Hg. Safety factor: 3:1 (static pressure), 2:1 (dynamic pressure).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| BU-24421-06 | Quick coupling plug GZ 5/8"-18 | - | 35 | |
| BU-24421-08 | Quick coupling plug GZ 3/4"-16 | - | 60 | |
| BU-24421-10 | Quick coupling plug GZ 7/8"-14 | - | 50 | |
| BU-24421-12 | Quick coupling plug GZ 1.1/16"-14 | - | 50 |
Screwed quick-connect plug with shut-off valve, finished with external UNF thread, intended for air conditioning and refrigeration, used for filling and emptying systems. Tightening under residual pressure is allowed (can be unscrewed under maximum working pressure). Material: carbon steel, galvanized. Sealing: CR – chloroprene rubber (from -40°C to +120°C). Refrigerant loss: 1.5 g/year. Max. vacuum: 2 mm Hg. Safety factor: 3:1 (static pressure), 2:1 (dynamic pressure).
Additional information
| Material | CS – steel (cast iron) |
|---|
Additional information
| Material | CS – steel (cast iron) |
|---|
