Is the Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar suitable for use with pneumatic tools and high-vibration environments?

Yes . the Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar is suitable for use with pneumatic tools and in high-vibration environments, with qualifications: - Compatibility: Eurostandard DN7.2 profile ensures interchangeability with other Eurostandard couplings (DN7.2â7.8) and common pneumatic tools available in stores. - Pressure & operation: Rated working pressure 16 bar and easily operated with one hand up to 8 bar, meeting typical pneumatic tool requirements. - Vibration and intensive use: For intensive use, vibrations, and pneumatic tools the recommended material is galvanized carbon steel (lower wear than brass). Choose the carbon steel variant for durability in high-vibration applications. - Media & temperature: Approved for air, nitrogen and other non-flammable gases; operating temperature range â20Â°C to +100Â°C. Recommendation: Use the galvanized carbon steel version for high-vibration, heavy-duty pneumatic tool applications; brass is acceptable for lighter, less-vibratory use.

Can Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar be used with nitrogen and other non-flammable gases?

Yes. Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar can be used with nitrogen and other non-flammable gases. The product description explicitly states suitability for air, nitrogen and other non-flammable gases. Ensure you select the appropriate material (brass or galvanized carbon steel) based on expected wear, vibration and tool use (carbon steel recommended for intensive use). Note the safe operating pressure rating (working pressure up to 16 bar, easy oneâhand operation up to 8 bar) and temperature range (â20Â°C to +100Â°C). Always verify compatibility with your system seals and follow applicable safety standards.

Are spare seals or repair kits available for Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar?

Yes. spare seals and repair kits are available for the Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar. Replacement seals (O-rings) and service kits compatible with the Eurostandard DN7.2 profile are commonly supplied for both material variants (brass and galvanized carbon steel). When ordering, specify the coupling type (Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar), material preference, and whether the kit is for standard or heavy-duty use (carbon steel recommended for intensive use and vibration). For best performance choose kits explicitly listed for DN7.2â7.8 Eurostandard couplings to ensure interchangeability and correct fit.

Air connection coupling DN7,2 Eurostandard, without valve, male thread, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	4

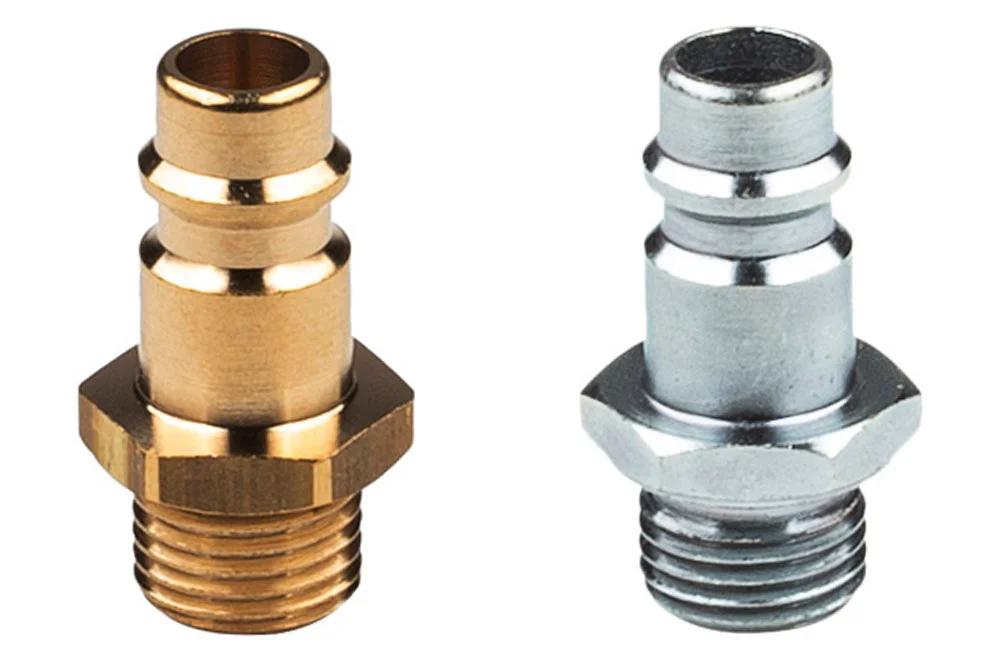

Quick coupling plug with a popular Eurostandard profile DN7.2 without a valve, featuring an external BSP thread, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The plug is available in two material variants: brass and galvanized carbon steel. For intensive use, vibrations, and pneumatic tools, it is recommended to use plugs made of carbon steel (lower wear). The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8 and compatible with tools found in stores. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass or galvanized carbon steel. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72-WZ-02X	Quick coupling plug DN7.2, GZ 1/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72-WZ-04X	Quick coupling plug DN7.2, GZ 1/4" BSP, brass	-	16	In stock	Enquiry
TP-ES72-WZ-04X-ST	Quick coupling plug DN7.2, GZ 1/4" BSP, galvanized steel	-	16	In stock	Enquiry
TP-ES72-WZ-06X	Quick coupling plug DN7.2, GZ 3/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72-WZ-06X-ST	Quick coupling plug DN7.2, GZ 3/8" BSP, galvanized steel	-	16	In stock	Enquiry
TP-ES72-WZ-08X	Quick coupling plug DN7.2, GZ 1/2" BSP, brass	-	16	In stock	Enquiry
TP-ES72-WZ-08X-ST	Quick coupling plug DN7.2, GZ 1/2" BSP, galvanized steel	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug with a popular Eurostandard profile DN7.2 without a valve, featuring an external BSP thread, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The plug is available in two material variants: brass and galvanized carbon steel. For intensive use, vibrations, and pneumatic tools, it is recommended to use plugs made of carbon steel (lower wear). The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8 and compatible with tools found in stores. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass or galvanized carbon steel. Operating temperature: from -20°C to +100°C.
