Is the Air connection coupling DN7,2 Eurostandard, without valve, with hose connection, 16 bar suitable for use with pneumatic tools and vibrations?

Yes . Air connection coupling DN7,2 Eurostandard, without valve, with hose connection, 16 bar can be used with pneumatic tools and in vibrating applications, provided you choose the correct material variant. The product description states it is intended for pneumatic installations (air, nitrogen, nonâflammable gases) and is interchangeable with standard Euro DN7.2â7.8 fittings and common tools. For intensive use, vibrations, and pneumatic tools the manufacturer explicitly recommends the carbon steel (galvanized) version because it has lower wear than brass. Operational limits: working pressure up to 16 bar (ease of oneâhand operation up to 8 bar) and temperature range â20 Â°C to +100 Â°C.

Can the Air connection coupling DN7,2 Eurostandard, without valve, with hose connection, 16 bar be used safely with nitrogen and other non-flammable gases?

Yes. The Air connection coupling DN7,2 Eurostandard, without valve, with hose connection, 16 bar can be used safely with nitrogen and other nonâflammable gases according to the product description. It is designed for pneumatic installations including air, nitrogen and other nonâflammable gases, has a working pressure up to 16 bar (safe oneâhand operation up to 8 bar), and is rated for temperatures â20Â°C to +100Â°C. Choose the carbon steel variant for intensive use or high vibration due to lower wear. Ensure correct installation, compatible mating couplers (Eurostandard DN7.2â7.8), and compliance with relevant safety standards and local regulations for gas service.

Air connection coupling DN7,2 Eurostandard, without valve, with hose connection, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

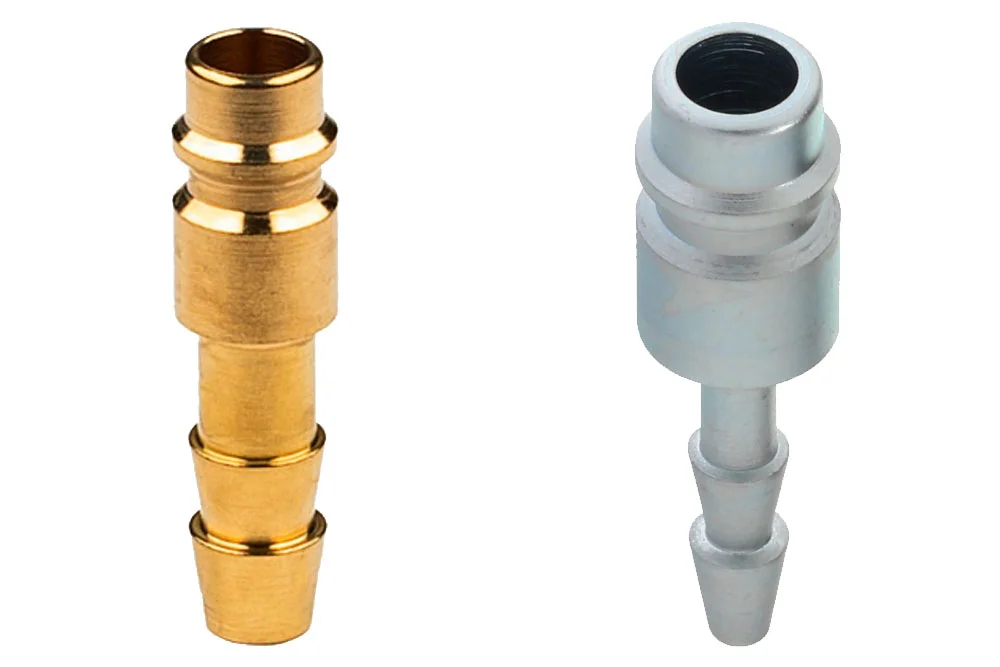

Quick coupling plug with a popular Eurostandard DN7.2 profile without a valve, with a hose end, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The plug is available in two material variants: brass and galvanized carbon steel. For intensive use, vibrations, and pneumatic tools, it is recommended to use plugs made of carbon steel (lower wear). The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8 and compatible with tools found in stores. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass or galvanized carbon steel. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72-WK-04X	Quick coupling plug DN7.2, for 4 mm hose, brass	4	16	In stock	Enquiry
TP-ES72-WK-04X-ST	Quick coupling plug DN7.2, for 4 mm hose, galvanized steel	4	16	In stock	Enquiry
TP-ES72-WK-06X	Quick coupling plug DN7.2, for 6 mm hose, brass	6	16	In stock	Enquiry
TP-ES72-WK-06X-ST	Quick coupling plug DN7.2, for 6 mm hose, galvanized steel	6	16	In stock	Enquiry
TP-ES72-WK-08X	Quick coupling plug DN7.2, for 8 mm hose, brass	8	16	In stock	Enquiry
TP-ES72-WK-08X-ST	Quick coupling plug DN7.2, for 8 mm hose, galvanized steel	8	16	In stock	Enquiry
TP-ES72-WK-09X	Quick coupling plug DN7.2, for 9 mm hose, brass	8	16	In stock	Enquiry
TP-ES72-WK-09X-ST	Quick coupling plug DN7.2, for 9 mm hose, galvanized steel	8	16	In stock	Enquiry
TP-ES72-WK-10X	Quick coupling plug DN7.2, for 10 mm hose, brass	10	16	In stock	Enquiry
TP-ES72-WK-10X-ST	Quick coupling plug DN7.2, for 10 mm hose, galvanized steel	10	16	In stock	Enquiry
TP-ES72-WK-13X	Quick coupling plug DN7.2, for 13 mm hose, brass	12	16	In stock	Enquiry
TP-ES72-WK-13X-ST	Quick coupling plug DN7.2, for 13 mm hose, galvanized steel	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug with a popular Eurostandard DN7.2 profile without a valve, with a hose end, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The plug is available in two material variants: brass and galvanized carbon steel. For intensive use, vibrations, and pneumatic tools, it is recommended to use plugs made of carbon steel (lower wear). The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8 and compatible with tools found in stores. Easily operated with one hand up to a pressure of 8 bar. Working pressure: 16 bar. Material: brass or galvanized carbon steel. Operating temperature: from -20°C to +100°C.
