Does the Quick-connect plug for injection molds with hose end without valve, EATON J70000 series, require identifying rings to limit max temperature?

Quick-connect plug for injection molds with hose end without valve, EATON J70000 series does require identifying rings on the sockets to limit the maximum operating temperature when such limitation is needed. The seriesâ specified operating temperature range is -15Â°C to +200Â°C; however, a note states that when identifying rings are used for sockets the operating temperature is limited to a maximum of +110Â°C. Therefore, if you must restrict the coupling system to a maximum of +110Â°C for safety, compatibility or system-design reasons, use the identifying rings on the sockets. If no temperature limitation to +110Â°C is required, the plugs themselves are rated up to +200Â°C.

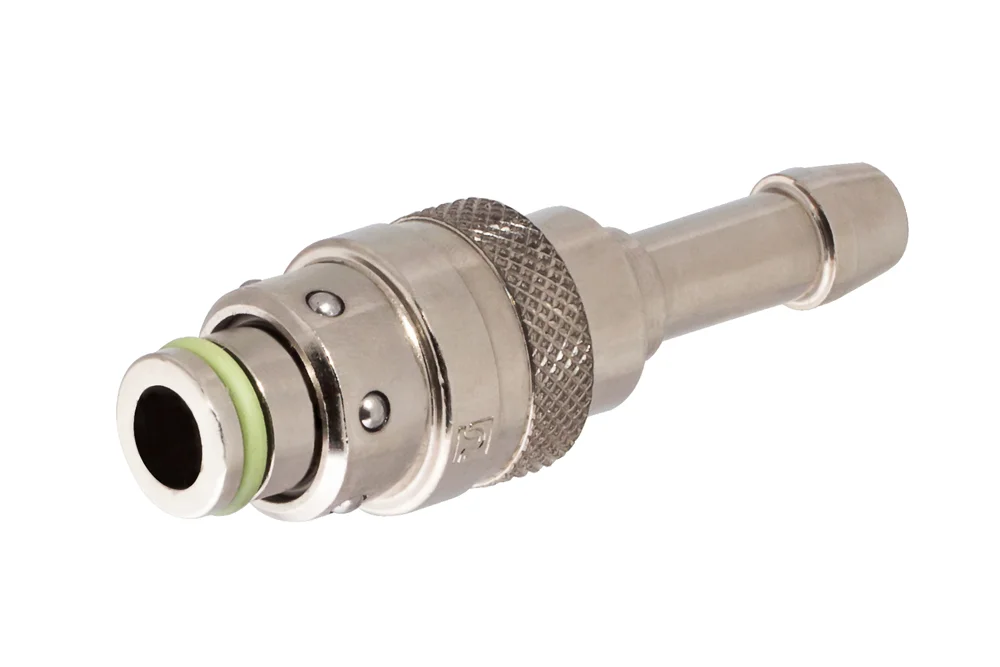

Quick-connect plug for injection molds with hose end without valve, EATON J70000 series

Q: Can the Quick-connect plug for injection molds with hose end without valve, EATON J70000 series, be used with oils at 200Â°C and 15 bar?

Yes . the Quick-connect plug for injection molds with hose end without valve, EATON J70000 series can be used with oils at 200Â°C and 15 bar, provided the following conditions are met: the coupling is the J70000 series (nickel-plated brass body with Viton seals), the system pressure does not exceed 15 bar, and the operating temperature does not exceed +200Â°C. Note the manufacturerâs caveat: if identifying rings for sockets are used, the allowable operating temperature is limited to +110Â°C. Ensure compatibility of the specific oil with Viton at the intended temperature and verify installation and safety margins for continuous use at the upper limits.

Q: Is the Quick-connect plug for injection molds with hose end without valve, EATON J70000 series, compatible with Viton seals at -15Â°C?

Yes. Quick-connect plug for injection molds with hose end without valve, EATON J70000 series uses Viton seals and its specified operating temperature range includes -15Â°C, so the Viton seals are compatible at that temperature for intended media (water and oil) and working pressure up to 15 bar. Note: ensure correct socket identification rings if using higher temperatures as per manufacturer guidance.

Additional information

Material	B – brass (bronze)

EATON quick coupling plug series J70000 with hose end without valve. Designed for cooling and thermostating injection molds, for water and oil. Material: nickel-plated brass. Sealing: viton. Working pressure: 15 bar. Operating temperature: -15°C to +200°C (when using identifying rings for sockets, operating temperature up to +110°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TH-JL7086701	DN 8 plug with end for 10 mm hose, without valve	10	15	In stock	Enquiry
TH-JL7086712	DN 8 plug with end for 12 mm hose, without valve	12	15	In stock	Enquiry
TH-JL7086789	DN 8 plug with end for 8 mm hose, without valve	8	15	In stock	Enquiry
TH-JL7126713	DN 12 plug with end for 13 mm hose, without valve	12	15	In stock	Enquiry
TH-JL7126716	DN 12 plug with end for 16 mm hose, without valve	16	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

EATON quick coupling plug series J70000 with hose end without valve. Designed for cooling and thermostating injection molds, for water and oil. Material: nickel-plated brass. Sealing: viton. Working pressure: 15 bar. Operating temperature: -15°C to +200°C (when using identifying rings for sockets, operating temperature up to +110°C).
