Is the Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA suitable for use with both external and internal BSP threads?

Yes. The Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA is suitable for use with both external and internal BSP threads. The product description explicitly states it features external or internal BSP threads, so it can be supplied/configured to mate with either male (external) or female (internal) BSP fittings. The coupling retains Eurostandard DN7.2 compatibility (interchangeable with other manufacturersâ DN7.2â7.8), supports air (performance 1070 l/min at 6 bar, Îp 0.5 bar) and water (16.5 l/min, Îp 1 bar, Kv 0.99), and is rated for working pressure up to 35 bar. Materials and sealing (brass body/sleeve/valve, AISI springs/pins, NBR seal) and operating temperature (-20Â°C to +100Â°C) remain as specified.

Can the Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA be used for liquids other than air within its Kv and temperature limits?

Yes - Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA can be used for liquids other than air provided the liquidâs properties and system conditions stay within the stated limits: Kv = 0.99 (water flow 16.5 l/min at Îp=1 bar), working pressure up to 35 bar, and operating temperature â20Â°C to +100Â°C. Ensure chemical compatibility with brass body and NBR seals (NBR resists hydrocarbons, oils, water but is attacked by strong acids, ketones, esters, and some chlorinated solvents). Also confirm fluid viscosity and particulate content wonât impair flow or valve sealing, and that dynamic pressure/temperature cycles remain within ratings. If in doubt for aggressive chemicals or food/pharma use, consult the manufacturer or choose suitable materials.

Can the Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA withstand continuous operation at Pe=6 bar and 35 bar max?

Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA can be used for continuous operation at nominal pressure Pe = 6 bar. tak, jest to wartoÅÄ pracy podana w danych (Pe = 6 bar) i przy tym przepÅywie (1070 l/min dla powietrza) produkt jest zaprojektowany do pracy ciÄgÅej. Maksymalne ciÅnienie konstrukcyjne wynosi 35 bar. oznacza to, Å¼e element wytrzyma maksymalnie do 35 bar, jednak nie jest to rekomendowane ciÅnienie robocze dla ciÄgÅej eksploatacji bez dodatkowej weryfikacji warunkÃ³w pracy. Przy dÅugotrwaÅej pracy blisko 35 bar naleÅ¼y uwzglÄdniÄ czynniki bezpieczeÅstwa, zmÄczenie materiaÅu, parametry uszczelnieÅ (NBR) oraz wpÅyw temperatury pracy (-20Â°C do +100Â°C). PodsumowujÄc: continuous operation at Pe = 6 bar. acceptable; continuous operation at 35 bar. not recommended without further engineering assessment and safety margins despite working pressure rating = 35 bar.

Quick connector socket DN7,2 Eurostandard with valve, threaded, brass, series 26KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

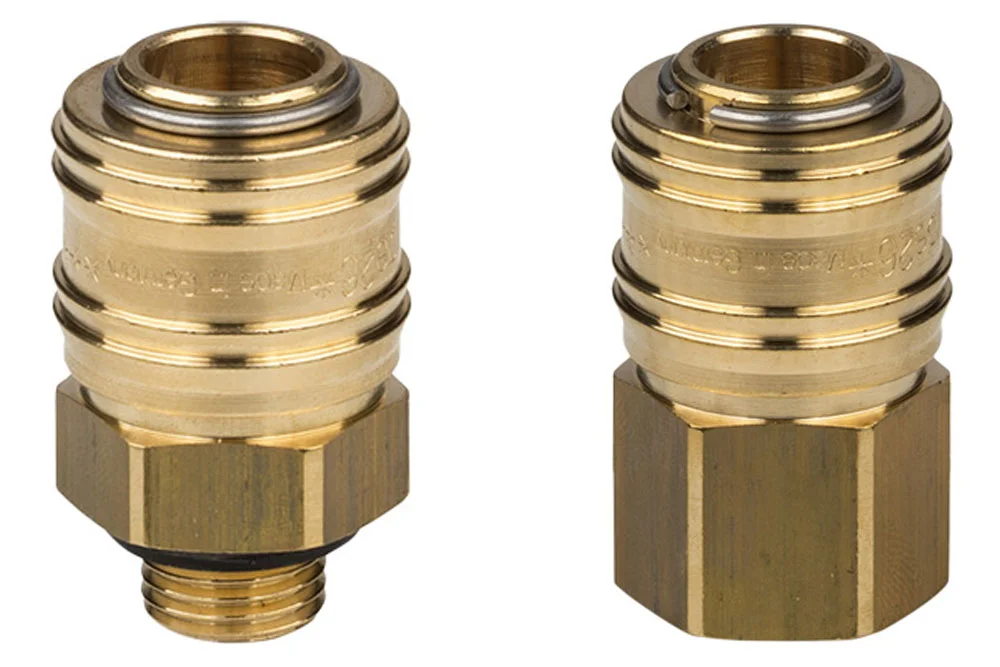

Quick coupling socket with a popular Eurostandard DN7.2 profile with a valve, featuring external or internal BSP threads, primarily intended for air. The quick couplings are interchangeable with all Eurostandard DN7.2 ÷ 7.8 from other manufacturers. Performance: 1070 l/min, Pe = 6 bar, Δp=0.5 bar – air, 16.5 l/min, Δp=1 bar, Kv=0.99 – water. Working pressure: 35 bar. Material: brass (body, sleeve, valve), AISI 301 steel (spring and ring), AISI 420 steel (locking pins). Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-26KAAW10MPX	Quick coupling socket 26KA DN7.2, GZ 1/8" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAAW13MPX	Quick coupling socket 26KA DN7.2, GZ 1/4" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAAW17MPX	Quick coupling socket 26KA DN7.2, GZ 3/8" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAAW21MPX	Quick coupling socket 26KA DN7.2, GZ 1/2" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAIW13MPX	Quick coupling socket 26KA DN7.2, GW 1/4" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAIW17MPX	Quick coupling socket 26KA DN7.2, GW 3/8" BSP, brass, NBR	-	35	In stock	Enquiry
RE-26KAIW21MPX	Quick coupling socket 26KA DN7.2, GW 1/2" BSP, brass, NBR	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with a popular Eurostandard DN7.2 profile with a valve, featuring external or internal BSP threads, primarily intended for air. The quick couplings are interchangeable with all Eurostandard DN7.2 ÷ 7.8 from other manufacturers. Performance: 1070 l/min, Pe = 6 bar, Δp=0.5 bar – air, 16.5 l/min, Δp=1 bar, Kv=0.99 – water. Working pressure: 35 bar. Material: brass (body, sleeve, valve), AISI 301 steel (spring and ring), AISI 420 steel (locking pins). Sealing: NBR. Operating temperature: from -20°C to +100°C.
