Can Quick-connection socket DN9.5 with valve, threaded, nickel-plated brass, 1800N series be used with steam at 10 bar and which seal (NBR or Viton) is recommended?

Quick-connection socket DN9.5 with valve, threaded, nickel-plated brass, 1800N series can be used with steam at 10 bar . yes. Product data list working pressure up to 50 bar and explicitly cite suitability for steam up to 10 bar. Recommended seal: use Viton. Operating temperature limits show NBR: -20Â°C to +100Â°C and Viton: -15Â°C to +200Â°C. Steam at 10 bar typically involves temperatures approaching or exceeding 100Â°C, so Vitonâs higher temperature resistance and superior steam/heat compatibility make it the appropriate choice for reliable sealing and longer life.

Quick-connection socket DN9.5 with valve, threaded, nickel-plated brass, 1800N series

All products, General-purpose low-pressure quick couplings/

Additional information

Material	SS – stainless steel

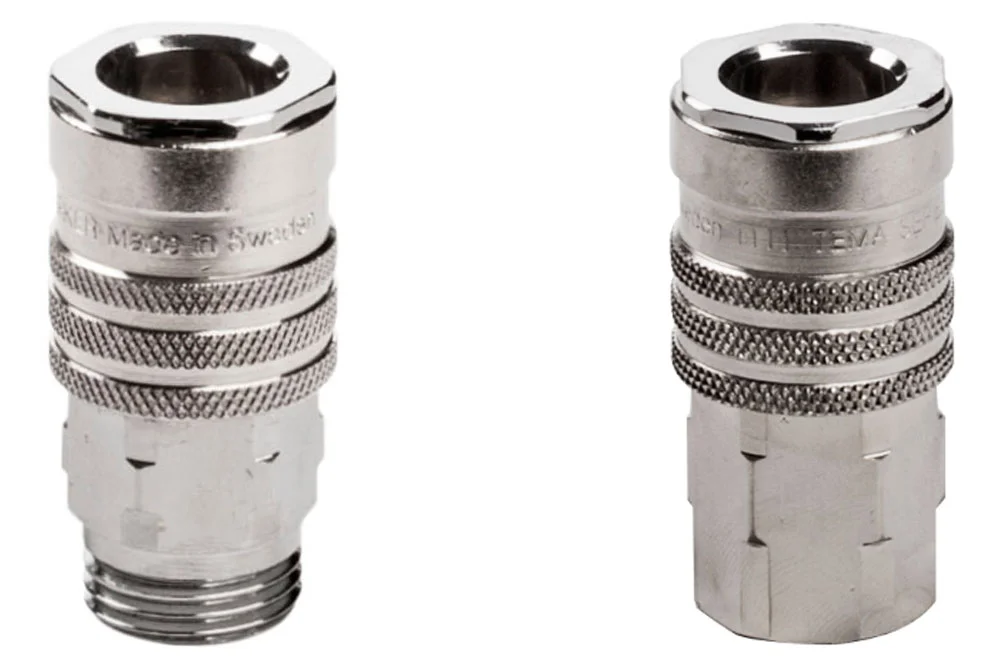

Universal quick coupling socket with valve DN9.5, with external or internal BSP thread. Double shut-off, standard TEMA 1800N, popular in the Scandinavian market, designed primarily for liquids to prevent leaks during disconnection (for water, steam, oils, and fuels). It features high corrosion resistance and large flow rates with small external dimensions. Operated with two hands. couplings of series 1800N should not be combined with series 1800. Material: nickel-plated and chrome-plated brass or AISI 316 steel. Performance: 34.7 l/min (Δp = 1 bar, Kv = 2.08 – water), 1650 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). Sealing: NBR or viton. Operating temperature: from -20°C to +100°C (NBR), from -15°C to +200°C (viton).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-1800KBAW21EVX	Quick coupling socket 1800N, double shut-off, GZ 1/2" BSP, AISI 316, viton	-	50	In stock	Enquiry
RE-1800KBAW21MPN	Quick coupling socket 1800N, double shut-off, GZ 1/2" BSP, nickel-plated brass, NBR	-	50	In stock	Enquiry
RE-1800KBIW17EVX	Quick coupling socket 1800N, double shut-off, GW 3/8" BSP, AISI 316, viton	-	50	In stock	Enquiry
RE-1800KBIW17MPN	Quick coupling socket 1800N, double shut-off, GW 3/8" BSP, nickel-plated brass, NBR	-	50	In stock	Enquiry
RE-1800KBIW21EVX	Quick coupling socket 1800N, double shut-off, GW 1/2" BSP, AISI 316, viton	-	50	In stock	Enquiry
RE-1800KBIW21MPN	Quick coupling socket 1800N, double shut-off, 1/2" BSP female thread, nickel-plated brass, NBR	-	50	In stock	Enquiry
RE-1800KBIW26MPN	Quick coupling socket 1800N, double shut-off, GW 3/4" BSP, nickel-plated brass, NBR	-	50	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal quick coupling socket with valve DN9.5, with external or internal BSP thread. Double shut-off, standard TEMA 1800N, popular in the Scandinavian market, designed primarily for liquids to prevent leaks during disconnection (for water, steam, oils, and fuels). It features high corrosion resistance and large flow rates with small external dimensions. Operated with two hands. couplings of series 1800N should not be combined with series 1800. Material: nickel-plated and chrome-plated brass or AISI 316 steel. Performance: 34.7 l/min (Δp = 1 bar, Kv = 2.08 – water), 1650 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). Sealing: NBR or viton. Operating temperature: from -20°C to +100°C (NBR), from -15°C to +200°C (viton).
