Is the ROTTA ROTH adaptor with BSP female thread, bronze suitable for steam or gas applications?

No. The ROTTA ROTH adaptor with BSP female thread, bronze is not suitable for steam or gas applications. According to the product description, it is designed for transmission and handling installations in pressure and suction systems for liquid and bulk substances and explicitly states it is not suitable for the transmission of steam and gases. Additional relevant specifications: material bronze, working pressure 10 bar, NBR rubber sealing, and operating temperature range â10Â°C to +80Â°C.parameters that further limit use with steam or many gases.

Can the ROTTA ROTH adaptor with BSP female thread, bronze be used for high-viscosity liquids or solids in pressure systems?

ROTA ROTH adaptor with BSP female thread, bronze can handle liquid and bulk (solid) substances in pressure and suction systems, so it is suitable for many high-viscosity liquids and particulate solids. Limitations: max working pressure 10 bar, sealing material NBR (suitable up to +80Â°C, down to -10Â°C) and bronze construction. Not suitable for steam or gases. For very high viscosity fluids, large particles or abrasive solids, or applications near the temperature/pressure limits, confirm compatibility (NBR chemical resistance, required flow rates and wear) and consider design modifications (larger bore, reinforced sealing) or alternative fittings rated for higher pressures and temperatures.

Can the ROTTA ROTH adaptor with BSP female thread, bronze be used in food-grade or potable water systems?

No. the ROTTA ROTH adaptor with BSP female thread, bronze as described is not suitable for guaranteed use in food-grade or potable water systems. Powody: - Sealing material: NBR (nitrile rubber) is not universally certified for potable water or food contact. NBR can be acceptable in some water applications but must have specific potable-water or food-grade certification (e.g., WRAS, ACS, NSF/ANSI 61, KTW). Opis nie podaje Å¼adnej takiej certyfikacji. - MateriaÅ: Bronze moÅ¼e byÄ uÅ¼ywany w instalacjach wodnych, ale do zastosowaÅ pitnych wymagane sÄ konkretne normy i dopuszczenia (np. niski poziom oÅowiu, certyfikaty dla kontaktu z Å¼ywnoÅciÄ). Brak informacji o zgodnoÅci z normami dla wody pitnej. - Temperatura i ciÅnienie: zakres -10Â°C do +80Â°C i 10 bar sÄ technicznie odpowiednie dla wielu instalacji wodnych, lecz same parametry nie zastÄpujÄ wymogÃ³w higienicznych i certyfikatÃ³w. - Zastosowanie: produkt jest opisany do przesyÅu cieczy i substancji sypkich, ale brak wyraÅºnego wskazania, Å¼e nadaje siÄ do wody pitnej lub Å¼ywnoÅci. Rekomendacja: - Skontaktuj siÄ z producentem lub dostawcÄ i poproÅ o dokumentacjÄ potwierdzajÄcÄ dopuszczenia do kontaktu z wodÄ pitnÄ/Å¼ywnoÅciÄ (normy/certyfikaty: NSF/ANSI 61, WRAS, KTW, ACS lub rÃ³wnowaÅ¼ne). - JeÅli brak takich certyfikatÃ³w, nie uÅ¼ywaj tego adaptera w instalacjach pitnych ani w aplikacjach bezpoÅrednio zwiÄzanych z Å¼ywnoÅciÄ.

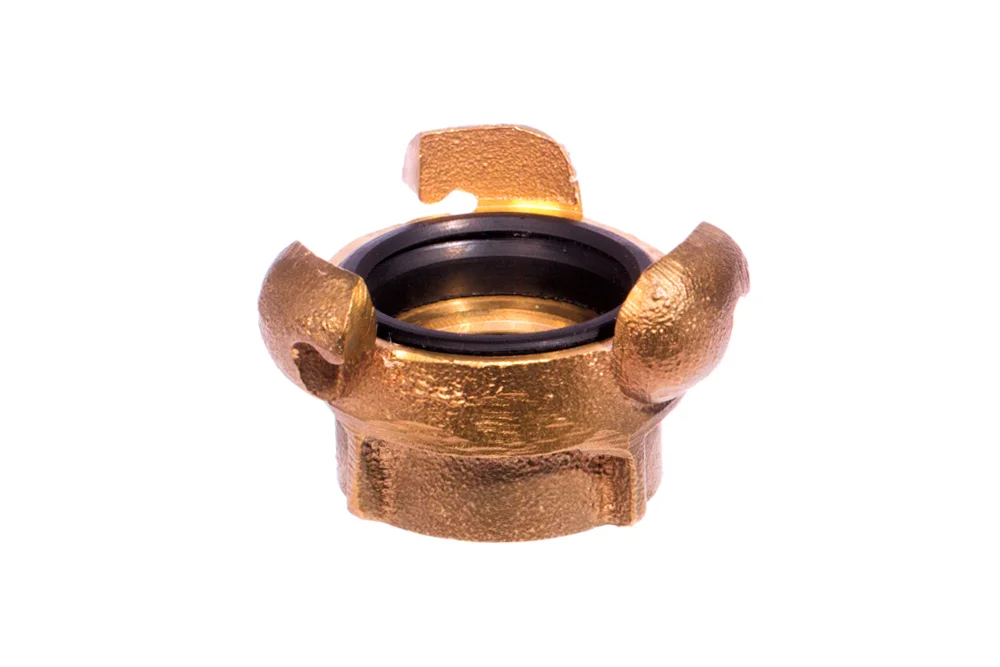

ROTTA ROTH adaptor with BSP female thread, bronze

All products, Symmetrical claw couplings/

Additional information

Material	B – brass (bronze)

ROTA ROTH adaptor with internal BSP thread is designed for transmission and handling installations in pressure and suction systems for liquid and bulk substances. It is not suitable for the transmission of steam and gases. It has a symmetrical design of the connection part. Material: bronze. Working pressure: 10 bar. Sealing: NBR rubber. Operating temperature: from -10°C to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GP-ROTH2050038-B	ROTT ROTH adapter 68 mm with BSP 1.1/2" thread, bronze	-	10	In stock	Enquiry
GP-ROTH2050050-B	ROTT ROTH adapter 68 mm with BSP 2" thread, bronze	-	10	In stock	Enquiry
GP-ROTH2070050-B	ROTT ROTH 85 mm adapter with BSP 2" thread, bronze	-	10	In stock	Enquiry
GP-ROTH2070065-B	ROTT ROTH adapter 85 mm with BSP 2.1/2" thread, bronze	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ROTA ROTH adaptor with internal BSP thread is designed for transmission and handling installations in pressure and suction systems for liquid and bulk substances. It is not suitable for the transmission of steam and gases. It has a symmetrical design of the connection part. Material: bronze. Working pressure: 10 bar. Sealing: NBR rubber. Operating temperature: from -10°C to +80°C.
