Is SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel compatible with crimping sleeves specified for lightweight hydraulic hoses?

Yes. SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel is compatible with crimping sleeves specified for lightweight hydraulic hoses. The SFL 45Â° lightweight design is expressly intended for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type; material and galvanization do not affect crimp compatibility. Ensure the sleeve matches the hose inner diameter, reinforcement type and crimping specification for the lightweight series to guarantee proper seal and mechanical retention.

Does SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel require specific crimping sleeve dimensions?

Yes. SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel requires a crimping sleeve sized to the specific hose and fitting combination. The product description states it is designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose; this implies: - The sleeve dimensions (length, internal diameter, wall thickness/profile) must match the hose O.D. and fitting geometry for a secure crimp. - Use a sleeve type and size recommended by the hose manufacturer or the fitting supplier for SAE 3000 / ZSK311 light-series applications. - Incorrect sleeve size or profile can cause leaks, fitting pull-out, or collapse of the hose bore; proper specification ensures required mechanical and hydraulic performance. - Material compatibility (carbon steel, galvanized) and crimping process (crimping machine, die set, crimp dimension) should follow supplier guidelines and any applicable standards. In short: a specific crimping sleeve dimension is required. select the sleeve per the hose and ZSK311 light-series fitting specifications and the hose makerâs recommended crimp data.

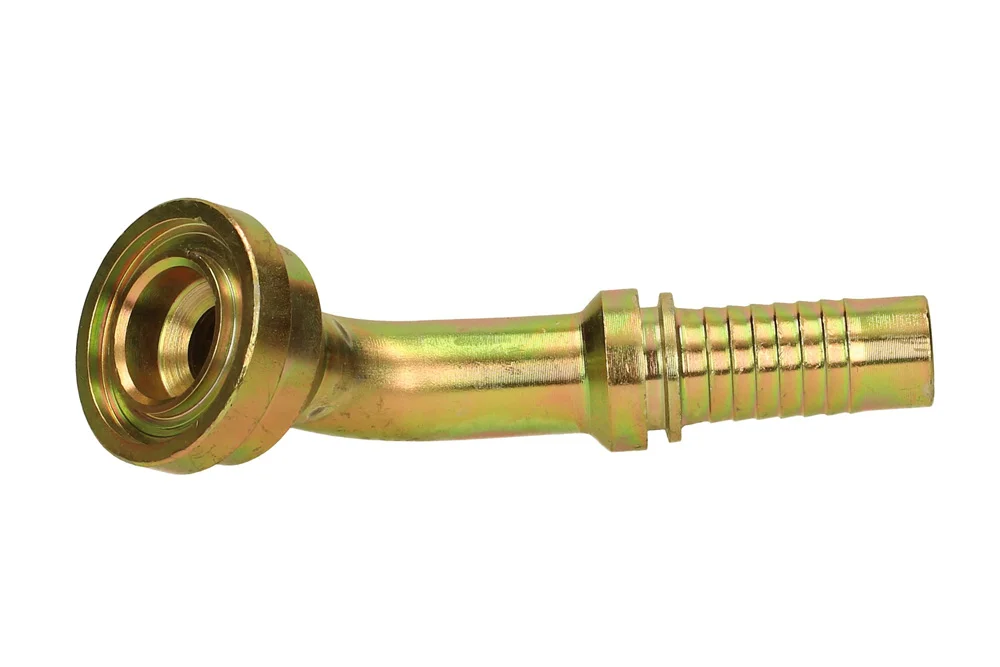

SAE 3000 45° flange end, type ZSK311, light series, carbon steel

Q: Can SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel be used with standard crimping sleeves for hydraulic and industrial hoses?

Yes . SAE 3000 45Â° flange end, type ZSK311, light series, carbon steel can be used with standard crimping sleeves for hydraulic and industrial hoses, provided the crimping sleeve is matched to the specific hose type and size. The flange end is described as a lightweight series designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose; material is carbon steel, galvanized. Ensure the sleeve profile, material, and crimp dimensions are compatible with the hose construction (rubber/spiral/textile/steel-braid) and operating pressure rating, and follow manufacturer crimping specifications and tooling to achieve a proper, leak-free assembly.

All products, Fittings for high-pressure hoses/

SAE 3000 45° flange end, type ZSK311, light series, carbon steel

Additional information

Material	CS – steel (cast iron)

SAE 3000 flange end (SFL), 45° angled, lightweight series. Designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK311-08-08	End fitting 45° SAE 1/2", hose 1/2", lightweight	12	-	In stock	Enquiry
TI-ZSK311-08-10	End fitting 45° SAE 1/2", hose 5/8", lightweight	16	-	In stock	Enquiry
TI-ZSK311-10-08K	End fitting 45° SAE 5/8", hose 1/2", lightweight, KOMATSU	12	-	In stock	Enquiry
TI-ZSK311-10-10K	End fitting 45° SAE 5/8", hose 5/8", lightweight, KOMATSU	16	-	In stock	Enquiry
TI-ZSK311-12-08	End fitting 45° SAE 3/4", hose 1/2", lightweight	12	-	In stock	Enquiry
TI-ZSK311-12-10	End fitting 45° SAE 3/4", hose 5/8", lightweight	16	-	In stock	Enquiry
TI-ZSK311-12-12	End fitting 45° SAE 3/4", hose 3/4", lightweight	20	-	In stock	Enquiry
TI-ZSK311-16-12	End fitting 45° SAE 1", hose 3/4", lightweight	20	-	In stock	Enquiry
TI-ZSK311-16-16	End fitting 45° SAE 1", hose 1", lightweight	25	-	In stock	Enquiry
TI-ZSK311-20-16	End fitting 45° SAE 1.1/4", hose 1", lightweight	25	-	In stock	Enquiry
TI-ZSK311-20-20	End fitting 45° SAE 1.1/4", hose 1.1/4", lightweight	32	-	In stock	Enquiry
TI-ZSK311-24-20	End fitting 45° SAE 1.1/2", hose 1.1/4", lightweight	32	-	In stock	Enquiry
TI-ZSK311-24-24	End fitting 45° SAE 1.1/2", hose 1.1/2", lightweight	38	-	In stock	Enquiry
TI-ZSK311-32-24	End fitting 45° SAE 2", hose 1.1/2", lightweight	38	-	In stock	Enquiry
TI-ZSK311-32-32	End fitting 45° SAE 2", hose 2", lightweight	50	-	In stock	Enquiry
TI-ZSK311-40-32	End fitting 45° SAE 2.1/2", hose 2", lightweight	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SAE 3000 flange end (SFL), 45° angled, lightweight series. Designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
