Can REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series be installed in series with different output pressure settings while sharing the same supply pressure?

Yes. REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series can be installed in series while sharing the same supply pressure. Each valve can be set to a different output pressure independent of the others. Output air is taken from the pressure gauge connection (1/8"). Key specs: size 100; output pressure ranges 0â2, 0â4, 0â8, 0â12 bar; supply pressure up to 15 bar; operating temperature up to +50Â°C; pressure gauge connection BSP 1/8"; flow rate 950 l/min (at input 6 bar, Îp = 1 bar).

Can REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series have their output air taken from the pressure gauge connection (1/8")?

Yes. REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series have their output air taken from the pressure gauge connection (1/8"). The valve features a GW BSP 1/8" pressure gauge connection and specifies output air taken from that port.

Do REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series support an output pressure range of 0â12 bar?

Yes. REG series pressure reducing valves for compressed air, without end plates, SKILLAIRÂ® series support an output pressure range that includes 0â12 bar (listed ranges: 0â2, 0â4, 0â8, 0â12 bar).

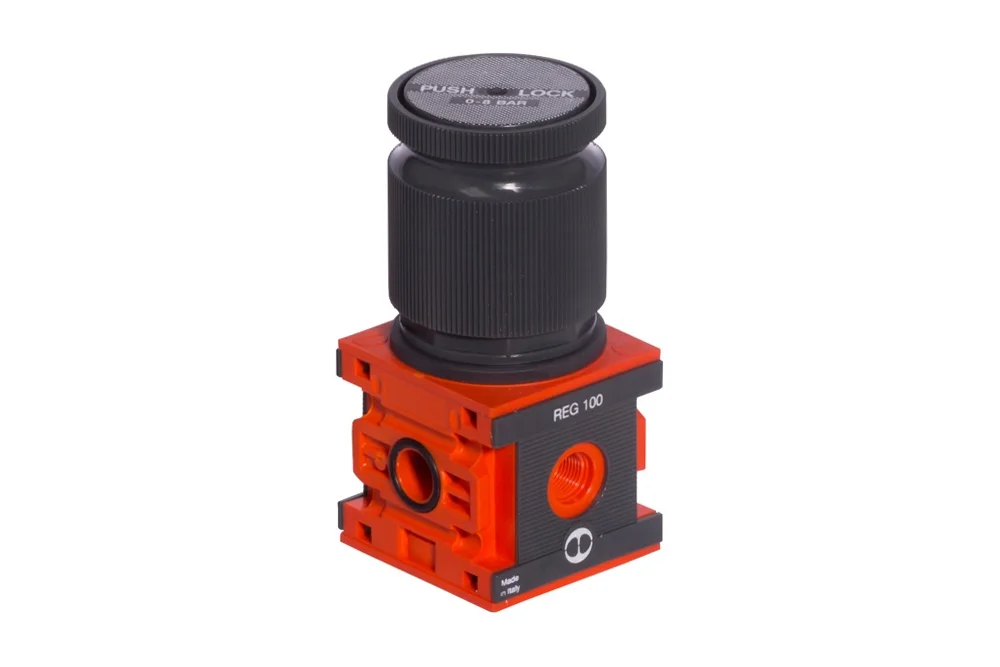

REG series pressure reducing valves for compressed air, without end plates, SKILLAIR® series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

Series REG pressure reducing valves, SKILLAIR® series, without end plates, are used for regulating working pressure, ensuring proper operation of devices. They can be installed in series and supplied with the same pressure. Each valve can have a different output pressure setting, independent of the settings of other valves. The output air is taken from the pressure gauge connection (1/8”). Size: 100. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 15 bar. Operating temperature: up to +50°C. Pressure gauge connection: GW BSP 1/8″. Flow rate: 950 l/min (at input pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3202101A	Series pressure reducing valve REG B 100 02 (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3202102A	Series pressure reducing valve REG B 100 04 (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3202103A	Series pressure reducing valve REG B 100 08 (SKILLAIR) without end plates.	-	-	In stock	Enquiry
MW-3202104A	Series pressure reducing valve REG B 100 012 (SKILLAIR) without end plates.	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Series REG pressure reducing valves, SKILLAIR® series, without end plates, are used for regulating working pressure, ensuring proper operation of devices. They can be installed in series and supplied with the same pressure. Each valve can have a different output pressure setting, independent of the settings of other valves. The output air is taken from the pressure gauge connection (1/8”). Size: 100. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 15 bar. Operating temperature: up to +50°C. Pressure gauge connection: GW BSP 1/8″. Flow rate: 950 l/min (at input pressure of 6 bar Δp = 1 bar).
