Is the Meta-aramid reinforced silicone hose, ML, blue suitable for oil fumes or fuels, or is the fluorocarbon rubber version required?

Meta-aramid reinforced silicone hose, ML, blue is intended for cooling and heating systems in vehicles (water, coolant fluids, clean air or air with a small amount of oil mist). It is not suitable for oils, fuels, or significant oil fumes. For oils, fuels, and oil mist you should use the fluorocarbon rubber version.

Can Meta-aramid reinforced silicone hose, ML, blue be used in cooling systems with occasional exposure to oil mist?

Yes - Meta-aramid reinforced silicone hose, ML, blue can be used in cooling and heating systems with occasional exposure to oil mist. The product description explicitly states suitability for water, coolant fluids, clean air, or air with a small amount of oil mist. However, for continuous or heavy contact with oils, fuels, or pronounced oil mist exposure, the fluorocarbon rubber version is recommended. Ensure selected hose diameter meets the working pressure (1â8.75 bar) and operating temperature range (â50Â°C to +230Â°C); standard lengths are 1000 mm (also available 2000 mm and 3000 mm). Pressure safety factor: 3:1; meets SAE J20R1.

What is the maximum working pressure of the Meta-aramid reinforced silicone hose, ML, blue for different diameters?

Meta-aramid reinforced silicone hose, ML, blue. maximum working pressure by diameter: - Small diameters (lowest range): up to 8.75 bar - Mid diameters: intermediate values between 1 bar and 8.75 bar (vary by specific diameter) - Largest diameters (lowest pressure): down to 1.00 bar Note: the hoseâs working pressure ranges from 1 bar to 8.75 bar depending on diameter, with a safety factor of 3:1 per specification. For exact maximum working pressure for a particular nominal diameter, consult the manufacturerâs diameter-to-pressure chart.

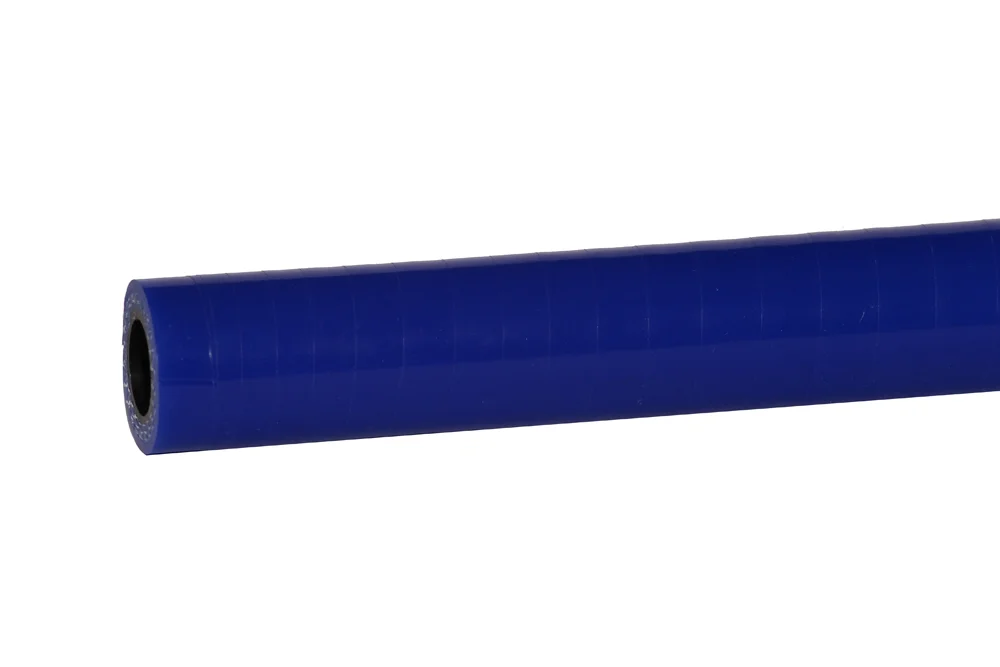

Meta-aramid reinforced silicone hose, ML, blue

Additional information

Material	VMQ – silicone
Maximum operating temperature [°C]	230
Minimum operating temperature [°C]	-50
Vacuum resistance	no
Standard length [m]	1, 2, 3

Silicone hose reinforced with meta-aramid is intended for cooling systems and heating systems in vehicles (water, coolant fluids, clean air or air with a small amount of oil mist). For oils, fuels, and oil mist, a version made of fluorocarbon rubber is recommended. Standard length: 1000 mm (also available in lengths of 2000 mm and 3000 mm). Pressure safety factor: 3:1. The hose meets SAE J20R1 standards. Outer layer color: blue. Material: silicone rubber. Reinforcement: meta-aramid layers. Working pressure: from 1 bar to 8.75 bar (depending on hose diameter). Operating temperature: from -50°C to +230°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
VP-ML-006-1-MA	Silicone hose 6 mm, L=1000 mm, meta-aramid	6	8.75	In stock	Enquiry
VP-ML-006-2-MA	Silicone hose 6 mm, L=2000 mm, meta-aramid	6	8.75	In stock	Enquiry
VP-ML-006-3-MA	Silicone hose 6 mm, L=3000 mm, meta-aramid	6	8.75	In stock	Enquiry
VP-ML-008-1-MA	Silicone hose 8 mm, L=1000 mm, meta-aramid	8	8.33	In stock	Enquiry
VP-ML-008-2-MA	Silicone hose 8 mm, L=2000 mm, meta-aramid	8	8.33	In stock	Enquiry
VP-ML-008-3-MA	Silicone hose 8 mm, L=3000 mm, meta-aramid	8	8.33	In stock	Enquiry
VP-ML-010-1-MA	Silicone hose 9.5 mm, L=1000 mm, meta-aramid	10	8.12	In stock	Enquiry
VP-ML-010-2-MA	Silicone hose 9.5 mm, L=2000 mm, meta-aramid	10	8.12	In stock	Enquiry
VP-ML-010-3-MA	Silicone hose 9.5 mm, L=3000 mm, meta-aramid	10	8.12	In stock	Enquiry
VP-ML-013-1-MA	Silicone hose 12.7 mm, L=1000 mm, meta-aramid	12	7.92	In stock	Enquiry
VP-ML-013-2-MA	Silicone hose 12.7 mm, L=2000 mm, meta-aramid	12	7.92	In stock	Enquiry
VP-ML-013-3-MA	Silicone hose 12.7 mm, L=3000 mm, meta-aramid	12	7.92	In stock	Enquiry
VP-ML-016-1-MA	Silicone hose 16 mm, L=1000 mm, meta-aramid	16	7.33	In stock	Enquiry
VP-ML-016-2-MA	Silicone hose 16 mm, L=2000 mm, meta-aramid	16	7.33	In stock	Enquiry
VP-ML-016-3-MA	Silicone hose 16 mm, L=3000 mm, meta-aramid	16	7.33	In stock	Enquiry
VP-ML-019-1-MA	Silicone hose 19 mm, L=1000 mm, meta-aramid	20	6.6	In stock	Enquiry
VP-ML-019-2-MA	Silicone hose 19 mm, L=2000 mm, meta-aramid	20	6.6	In stock	Enquiry
VP-ML-019-3-MA	Silicone hose 19 mm, L=3000 mm, meta-aramid	20	6.6	In stock	Enquiry
VP-ML-022-1-MA	Silicone hose 22 mm, L=1000 mm, meta-aramid	22	6.07	In stock	Enquiry
VP-ML-022-2-MA	Silicone hose 22 mm, L=2000 mm, meta-aramid	22	6.07	In stock	Enquiry
VP-ML-022-3-MA	Silicone hose 22 mm, L=3000 mm, meta-aramid	22	6.07	In stock	Enquiry
VP-ML-025-1-MA	Silicone hose 25 mm, L=1000 mm, meta-aramid	25	5.8	In stock	Enquiry
VP-ML-025-2-MA	Silicone hose 25 mm, L=2000 mm, meta-aramid	25	5.8	In stock	Enquiry
VP-ML-025-3-MA	Silicone hose 25 mm, L=3000 mm, meta-aramid	25	5.8	In stock	Enquiry
VP-ML-028-1-MA	Silicone hose 28 mm, L=1000 mm, meta-aramid	28	5.67	In stock	Enquiry
VP-ML-028-2-MA	Silicone hose 28 mm, L=2000 mm, meta-aramid	28	5.67	In stock	Enquiry
VP-ML-028-3-MA	Silicone hose 28 mm, L=3000 mm, meta-aramid	28	5.67	In stock	Enquiry
VP-ML-030-1-MA	Silicone hose 30 mm, L=1000 mm, meta-aramid	30	5.53	In stock	Enquiry
VP-ML-030-2-MA	Silicone hose 30 mm, L=2000 mm, meta-aramid	30	5.53	In stock	Enquiry
VP-ML-030-3-MA	Silicone hose 30 mm, L=3000 mm, meta-aramid	30	5.53	In stock	Enquiry
VP-ML-032-1-MA	Silicone hose 32 mm, L=1000 mm, meta-aramid	32	5.3	In stock	Enquiry
VP-ML-032-2-MA	Silicone hose 32 mm, L=2000 mm, meta-aramid	32	5.3	In stock	Enquiry
VP-ML-032-3-MA	Silicone hose 32 mm, L=3000 mm, meta-aramid	32	5.3	In stock	Enquiry
VP-ML-035-1-MA	Silicone hose 35 mm, L=1000 mm, meta-aramid	35	5.13	In stock	Enquiry
VP-ML-035-2-MA	Silicone hose 35 mm, L=2000 mm, meta-aramid	35	5.13	In stock	Enquiry
VP-ML-035-3-MA	Silicone hose 35 mm, L=3000 mm, meta-aramid	35	5.13	In stock	Enquiry
VP-ML-038-1-MA	Silicone hose 38 mm, L=1000 mm, meta-aramid	38	5	In stock	Enquiry
VP-ML-038-2-MA	Silicone hose 38 mm, L=2000 mm, meta-aramid	38	5	In stock	Enquiry
VP-ML-038-3-MA	Silicone hose 38 mm, L=3000 mm, meta-aramid	38	5	In stock	Enquiry
VP-ML-040-1-MA	Silicone hose 40 mm, L=1000 mm, meta-aramid	40	4.8	In stock	Enquiry
VP-ML-040-2-MA	Silicone hose 40 mm, L=2000 mm, meta-aramid	40	4.8	In stock	Enquiry
VP-ML-040-3-MA	Silicone hose 40 mm, L=3000 mm, meta-aramid	40	4.8	In stock	Enquiry
VP-ML-042-1-MA	Silicone hose 42 mm, L=1000 mm, meta-aramid	40	4.67	In stock	Enquiry
VP-ML-042-2-MA	Silicone hose 42 mm, L=2000 mm, meta-aramid	40	4.67	In stock	Enquiry
VP-ML-042-3-MA	Silicone hose 42 mm, L=3000 mm, meta-aramid	40	4.67	In stock	Enquiry
VP-ML-045-1-MA	Silicone hose 45 mm, L=1000 mm, meta-aramid	45	4.5	In stock	Enquiry
VP-ML-045-2-MA	Silicone hose 45 mm, L=2000 mm, meta-aramid	45	4.5	In stock	Enquiry
VP-ML-045-3-MA	Silicone hose 45 mm, L=3000 mm, meta-aramid	45	4.5	In stock	Enquiry
VP-ML-048-1-MA	Silicone hose 48 mm, L=1000 mm, meta-aramid	50	3.33	In stock	Enquiry
VP-ML-048-2-MA	Silicone hose 48 mm, L=2000 mm, meta-aramid	50	3.33	In stock	Enquiry
VP-ML-048-3-MA	Silicone hose 48 mm, L=3000 mm, meta-aramid	50	3.33	In stock	Enquiry
VP-ML-051-1-MA	Silicone hose 50.8 mm, L=1000 mm, meta-aramid	50	3.67	In stock	Enquiry
VP-ML-051-2-MA	Silicone hose 50.8 mm, L=2000 mm, meta-aramid	50	3.67	In stock	Enquiry
VP-ML-051-3-MA	Silicone hose 50.8 mm, L=3000 mm, meta-aramid	50	3.67	In stock	Enquiry
VP-ML-054-1-MA	Silicone hose 54 mm, L=1000 mm, meta-aramid	55	3.07	In stock	Enquiry
VP-ML-054-2-MA	Silicone hose 54 mm, L=2000 mm, meta-aramid	55	3.07	In stock	Enquiry
VP-ML-054-3-MA	Silicone hose 54 mm, L=3000 mm, meta-aramid	55	3.07	In stock	Enquiry
VP-ML-057-1-MA	Silicone hose 57 mm, L=1000 mm, meta-aramid	55	3	In stock	Enquiry
VP-ML-057-2-MA	Silicone hose 57 mm, L=2000 mm, meta-aramid	55	3	In stock	Enquiry
VP-ML-057-3-MA	Silicone hose 57 mm, L=3000 mm, meta-aramid	55	3	In stock	Enquiry
VP-ML-063-1-MA	Silicone hose 63 mm, L=1000 mm, meta-aramid	65	2.33	In stock	Enquiry
VP-ML-063-2-MA	Silicone hose 63 mm, L=2000 mm, meta-aramid	65	2.33	In stock	Enquiry
VP-ML-063-3-MA	Silicone hose 63 mm, L=3000 mm, meta-aramid	65	2.33	In stock	Enquiry
VP-ML-070-1-MA	Silicone hose 70 mm, L=1000 mm, meta-aramid	70	2.17	In stock	Enquiry
VP-ML-070-2-MA	Silicone hose 70 mm, L=2000 mm, meta-aramid	70	2.17	In stock	Enquiry
VP-ML-070-3-MA	Silicone hose 70 mm, L=3000 mm, meta-aramid	70	2.17	In stock	Enquiry
VP-ML-076-1-MA	Silicone hose 76 mm, L=1000 mm, meta-aramid	75	2	In stock	Enquiry
VP-ML-076-2-MA	Silicone hose 76 mm, L=2000 mm, meta-aramid	75	2	In stock	Enquiry
VP-ML-076-3-MA	Silicone hose 76 mm, L=3000 mm, meta-aramid	75	2	In stock	Enquiry
VP-ML-080-1-MA	Silicone hose 80 mm, L=1000 mm, meta-aramid	80	1.83	In stock	Enquiry
VP-ML-080-2-MA	Silicone hose 80 mm, L=2000 mm, meta-aramid	80	1.83	In stock	Enquiry
VP-ML-080-3-MA	Silicone hose 80 mm, L=3000 mm, meta-aramid	80	1.83	In stock	Enquiry
VP-ML-083-1-MA	Silicone hose 83 mm, L=1000 mm, meta-aramid	80	1.73	In stock	Enquiry
VP-ML-083-2-MA	Silicone hose 83 mm, L=2000 mm, meta-aramid	80	1.73	In stock	Enquiry
VP-ML-083-3-MA	Silicone hose 83 mm, L=3000 mm, meta-aramid	80	1.73	In stock	Enquiry
VP-ML-089-1-MA	Silicone hose 89 mm, L=1000 mm, meta-aramid	90	1.5	In stock	Enquiry
VP-ML-089-2-MA	Silicone hose 89 mm, L=2000 mm, meta-aramid	90	1.5	In stock	Enquiry
VP-ML-089-3-MA	Silicone hose 89 mm, L=3000 mm, meta-aramid	90	1.5	In stock	Enquiry
VP-ML-102-1-MA	Silicone hose 102 mm, L=1000 mm, meta-aramid	100	1.33	In stock	Enquiry
VP-ML-102-2-MA	Silicone hose 102 mm, L=2000 mm, meta-aramid	100	1.33	In stock	Enquiry
VP-ML-102-3-MA	Silicone hose 102 mm, L=3000 mm, meta-aramid	100	1.33	In stock	Enquiry
VP-ML-115-1-MA	Silicone hose 115 mm, L=1000 mm, meta-aramid	110	1.2	In stock	Enquiry
VP-ML-127-1-MA	Silicone hose 127 mm, L=1000 mm, meta-aramid	125	1	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Silicone hose reinforced with meta-aramid is intended for cooling systems and heating systems in vehicles (water, coolant fluids, clean air or air with a small amount of oil mist). For oils, fuels, and oil mist, a version made of fluorocarbon rubber is recommended. Standard length: 1000 mm (also available in lengths of 2000 mm and 3000 mm). Pressure safety factor: 3:1. The hose meets SAE J20R1 standards. Outer layer color: blue. Material: silicone rubber. Reinforcement: meta-aramid layers. Working pressure: from 1 bar to 8.75 bar (depending on hose diameter). Operating temperature: from -50°C to +230°C.
