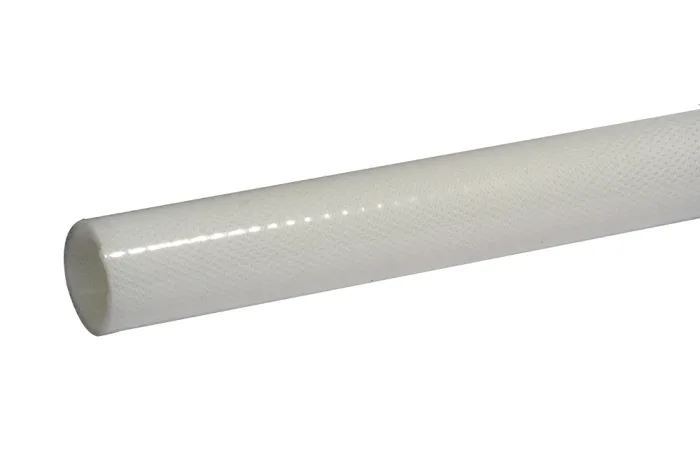

SILICONE STAR/D pressure silicone hose
High-quality pressure hose manufactured using platinum-enhanced technology. The inner layer of the hose is extruded. Compliant with FDA 21 CFR 177.2600, USP Class VI, European Pharmacopoeia 3.1.9, BfR XV A, Journal Officiel Brochure 1227, and CE Directive 1935/2004. At operating temperatures above +100°C, the maximum working pressure specified in the tables should be reduced by 1% for each 1°C increase in temperature. Inner layer: translucent silicone. Reinforcement: four layers of polyester braiding. Outer layer: translucent silicone. Operating temperature: from -60°C to +180°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| SO-SILICONESTAR-D-10 | SILICONE HOSE STAR/D 9.5 mm | 10 | 7.5 | |
| SO-SILICONESTAR-D-13 | SILICONE HOSE STAR/D 12.7 mm | 12 | 7.5 | |
| SO-SILICONESTAR-D-19 | SILICONE HOSE STAR/D 19.05 mm | 20 | 7.5 | |
| SO-SILICONESTAR-D-25 | SILICONE HOSE STAR/D 25.4 mm | 25 | 7.5 | |
| SO-SILICONESTAR-D-32 | SILICONE HOSE STAR/D 31.8 mm | 32 | 6.2 | |
| SO-SILICONESTAR-D-38 | SILICONE HOSE STAR/D 38.1 mm | 38 | 4.5 | |
| SO-SILICONESTAR-D-51 | SILICONE HOSE STAR/D 50.8 mm | 50 | 4.5 |
High-quality pressure hose manufactured using platinum-enhanced technology. The inner layer of the hose is extruded. Compliant with FDA 21 CFR 177.2600, USP Class VI, European Pharmacopoeia 3.1.9, BfR XV A, Journal Officiel Brochure 1227, and CE Directive 1935/2004. At operating temperatures above +100°C, the maximum working pressure specified in the tables should be reduced by 1% for each 1°C increase in temperature. Inner layer: translucent silicone. Reinforcement: four layers of polyester braiding. Outer layer: translucent silicone. Operating temperature: from -60°C to +180°C.
Additional information
| Material | VMQ – silicone |
|---|---|
| Maximum operating temperature [°C] | 180 |
| Minimum operating temperature [°C] | -60 |
| Vacuum resistance | no |
| Standard length [m] | 4 |
