Is the SJ swivel coupling with GW BSP, stainless steel suitable for conveying corrosive chemicals at up to 16 bar and temperatures between -40Â°C and +250Â°C?

Yes . the SJ swivel coupling with GW BSP, stainless steel is suitable for conveying corrosive chemicals at up to 16 bar and temperatures between â40Â°C and +250Â°C, with the following caveats: - Material: made of AISI 316 stainless steel, which offers good corrosion resistance to many corrosive chemicals; suitability depends on the specific chemical and its concentration . confirm compatibility with AISI 316 for your media. - Pressure/temperature: rated working pressure up to 16 bar and operating temperature range â40Â°C to +250Â°C, so it meets your stated conditions. - Mechanical loads: designed for slow, oscillating rotations and transfers no torsional moment; it is not resistant to high bending moments. If the installation will impose significant bending or dynamic loads, specify the heavy-duty double-bearing swivel joint instead. - Certification: meets PED 97/23/EC and has TDT, TÃV, Apragaz approvals. Recommendation: verify chemical compatibility of AISI 316 with your specific chemicals (and concentrations/temperatures) and assess whether bending or dynamic loads require the double-bearing heavy-duty version.

Can the SJ swivel coupling with GW BSP, stainless steel be used where zero torsional transmission to downstream equipment is critical?

Yes. The SJ swivel coupling with GW BSP, stainless steel is specifically designed to prevent torsional moments from being transmitted to downstream equipment, making it suitable where zero torsional transmission is critical. It features a single bearing for connecting rigid or flexible pipes and is used in chemical and petrochemical applications. Note: it is not suited for high bending moments; if significant bending loads are present, choose the heavy-duty double-bearing version (available on request). Specs: AISI 316, -40Â°C to +250Â°C, slow/oscillating rotations, up to 16 bar, meets PED 97/23/EC, TDT, TÃV, Apragaz.

Does the SJ swivel coupling with GW BSP, stainless steel require lubrication for reliable slow or oscillating rotation?

No. the SJ swivel coupling with GW BSP, stainless steel does not require additional lubrication for reliable slow or oscillating rotation under normal operating conditions. The design features a single bearing intended for slow or oscillating movement and is specified for use in chemical and petrochemical installations up to 16 bar and temperatures from â40 Â°C to +250 Â°C. For applications with higher bending moments or continuous heavy-duty rotation, a swivel joint with a double bearing (heavy duty) is recommended, but for the stated slow/oscillating duty the standard SJ swivel coupling with GW BSP, stainless steel is suitable without special lubrication.

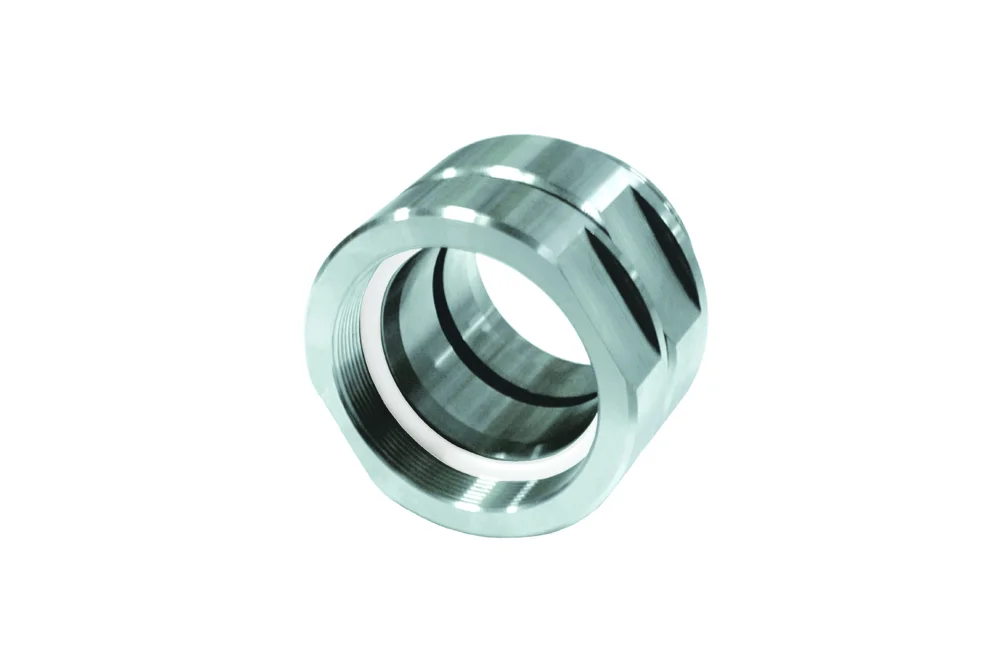

SJ swivel coupling with GW BSP, stainless steel

All products, Rotary unions/

Additional information

Material	SS – stainless steel

SJ swivel joint with a single bearing, designed for connections of rigid or flexible pipes, where it is required that no torsional moment is transferred to other elements of the installation. It is used in the chemical and petrochemical industry. The joint is not resistant to high bending moments; in such cases, it is recommended to use a swivel joint with a double bearing – heavy duty (available on request). The joint meets the requirements of the Pressure Equipment Directive 97/23/EC (PED), TDT, TÜV, Apragaz. Various combinations of the following connections are also available on request: BSP thread, NPT, BSPT, ACME, for welding, PN flanges, ASA, TW, TTMA, grooved joints. Material: AISI 316 steel. Operating temperature: from -40°C to +250°C. Rotations: slow, oscillating. Working pressure: up to 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MK-ZO-D01014401A	Rotary joint with 3/4" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D03034401A	Rotary joint with 1" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D05054401A	Rotary joint with 1.1/4" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D07074401A	Rotary joint with 1.1/2" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D10104401A	Rotary joint with 2" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D12124401A	Rotary joint with GW 2.1/2" BSP, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D14144401A	Rotary joint with 3" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry
MK-ZO-D16164401A	Rotary joint with 4" BSP thread, AISI 316, Viton, PTFE	-	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SJ swivel joint with a single bearing, designed for connections of rigid or flexible pipes, where it is required that no torsional moment is transferred to other elements of the installation. It is used in the chemical and petrochemical industry. The joint is not resistant to high bending moments; in such cases, it is recommended to use a swivel joint with a double bearing – heavy duty (available on request). The joint meets the requirements of the Pressure Equipment Directive 97/23/EC (PED), TDT, TÜV, Apragaz. Various combinations of the following connections are also available on request: BSP thread, NPT, BSPT, ACME, for welding, PN flanges, ASA, TW, TTMA, grooved joints. Material: AISI 316 steel. Operating temperature: from -40°C to +250°C. Rotations: slow, oscillating. Working pressure: up to 16 bar.
