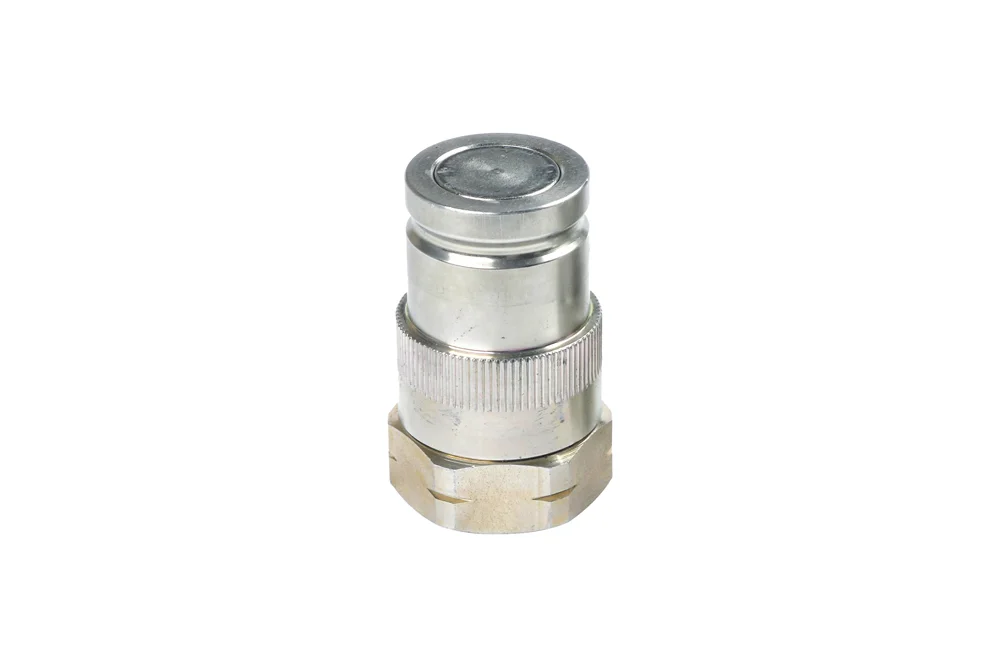

Quick-coupling plug SNAP-TITE with a female thread, with a valve, carbon steel, 71 series (1/4″ ÷ 1″)
A leak-free SNAP-TITE quick-coupling plug (1/4″ ÷ 1″) with a BSP or NPTF female thread, American-made, intended for heavy-duty operating conditions. They have the highest working pressure among flat-face type quick couplings. The quick couplings can be operated with one hand. Depending on the application, the appropriate coupling and seal material should be selected. For pulsating pressure, the working pressure should be reduced by 40%. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 690 bar (depending on the quick-coupling size). Material: carbon steel, galvanized. Sealing: NBR (from -35°C to +120°C), viton (from -26°C to +204°C), EPR (from -56°C to +120°C). The flow given at Δp = 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
A leak-free SNAP-TITE quick-coupling plug (1/4″ ÷ 1″) with a BSP or NPTF female thread, American-made, intended for heavy-duty operating conditions. They have the highest working pressure among flat-face type quick couplings. The quick couplings can be operated with one hand. Depending on the application, the appropriate coupling and seal material should be selected. For pulsating pressure, the working pressure should be reduced by 40%. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 690 bar (depending on the quick-coupling size). Material: carbon steel, galvanized. Sealing: NBR (from -35°C to +120°C), viton (from -26°C to +204°C), EPR (from -56°C to +120°C). The flow given at Δp = 3 bar.
Additional information
| Material | CS – steel (cast iron) |
|---|
