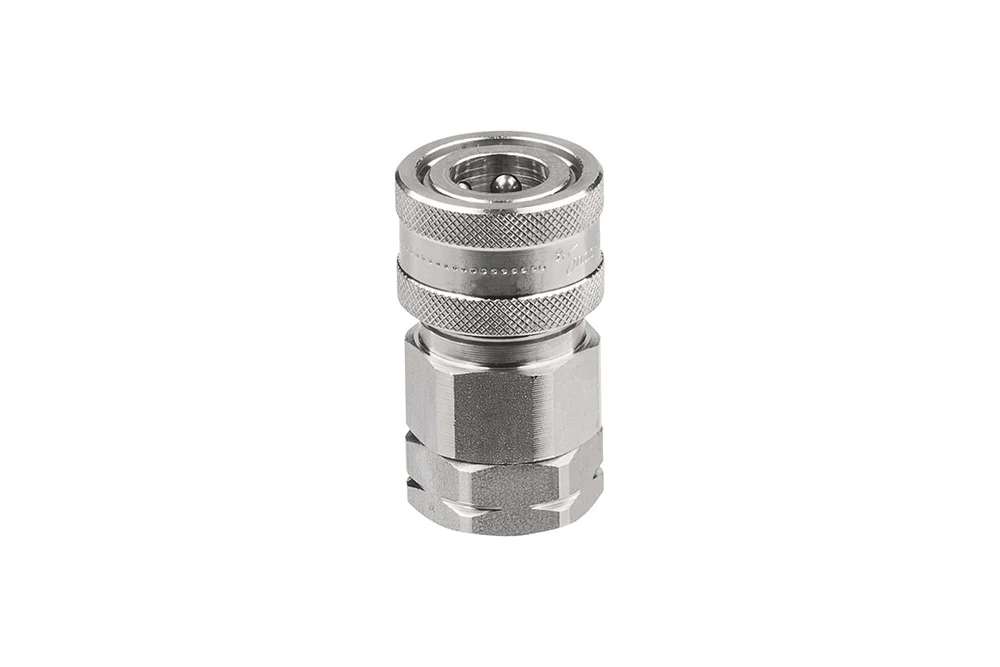

Quick-coupling socket SNAP-TITE with female thread BSP with a valve, AISI 316, H series
Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 345 bar (depending on the quick-coupling size), Safety factor 2:1. Material: AISI 316. Sealing: NBR (Operating temperature: from -35°C to +120°C), EPR (Operating temperature: from -56°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 345 bar (depending on the quick-coupling size), Safety factor 2:1. Material: AISI 316. Sealing: NBR (Operating temperature: from -35°C to +120°C), EPR (Operating temperature: from -56°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.
Additional information
| Material | SS – stainless steel |
|---|
