Does the Spray nozzle, brass, 269 series support spraying low-viscosity liquids at pressures between 1â6 bar with a 40Â° cone?

Yes. Spray nozzle, brass, 269 series supports spraying low-viscosity liquids at pressures between 1â6 bar with a ~40Â° cone. The nozzle description specifies a 0.7 mm orifice with a swirling insert intended for low-viscosity liquids, cone spraying approx. 40Â°, recommended pressure 1â6 bar, maximum working pressure 10 bar, and flow rate given at 6 bar. Operating temperature range is +5Â°C to +50Â°C.

Can the Spray nozzle, brass, 269 series maintain its specified flow rate at 6 bar when spraying low-viscosity liquids?

Yes. The Spray nozzle, brass, 269 series is designed for lowâviscosity liquids with a 0.7 mm orifice and swirling insert; the specified flow rate is given at 6 bar with the valve fully open. Its recommended pressure range is 1â6 bar and maximum working pressure 10 bar, so at 6 bar it can maintain the stated flow rate under those conditions. Ensure liquid temperature is within the operating range (+5Â°C to +50Â°C) and the liquid viscosity remains low; deviations (higher viscosity, partial valve closure, obstructions or pressure fluctuations) will reduce flow and spray performance.

Is the Spray nozzle, brass, 269 series suitable for use at temperatures between +5Â°C and +50Â°C?

Yes. The Spray nozzle, brass, 269 series is suitable for use at temperatures between +5Â°C and +50Â°C, as its specified operating temperature range is from +5Â°C to +50Â°C.

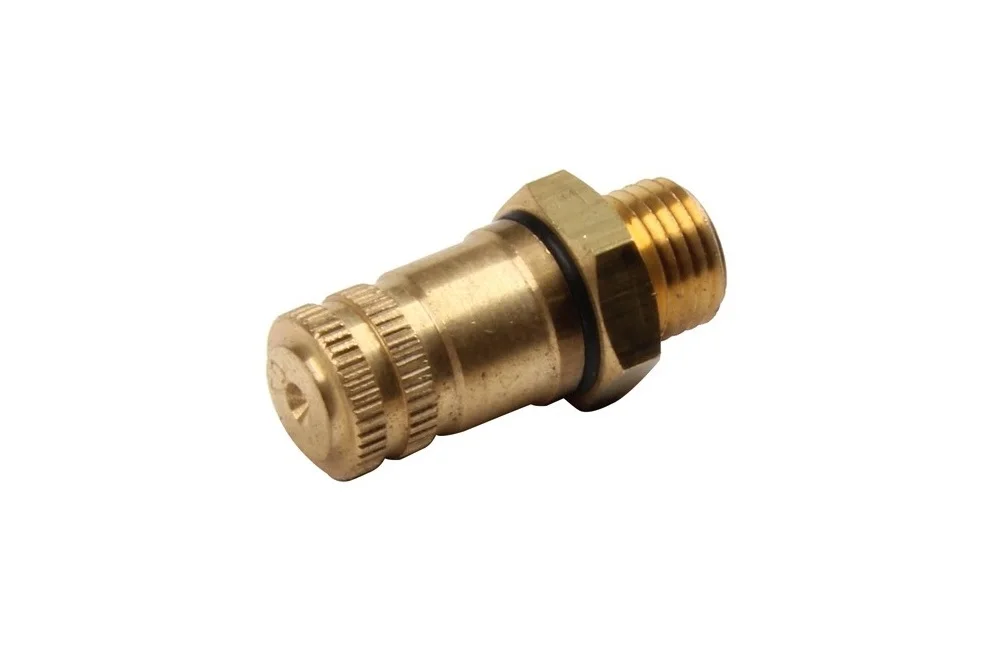

Nozzle for spraying, brass, series 269

All products, Special air guns/

Additional information

Nozzle Ø 0.7 mm for spraying with insert centrifuging Intended for liquids o low viscosity. spraying tapered – ok. 40°. the given value flow refers for pressure 6 bar at a valve in fully open. Material: brass. maximum Working pressure: 10 bar. recommended pressure: 1 – 6 bar. Operating temperature: od +5°C up to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EW-269K46	Nozzle for spryskiwania 0.7 mm, brass	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Nozzle Ø 0.7 mm for spraying with insert centrifuging Intended for liquids o low viscosity. spraying tapered – ok. 40°. the given value flow refers for pressure 6 bar at a valve in fully open. Material: brass. maximum Working pressure: 10 bar. recommended pressure: 1 – 6 bar. Operating temperature: od +5°C up to +50°C.
