Is the Straight fitting G, carbon steel, zinc-nickel, compatible with hydraulic systems using metric external threads on both ends?

Yes. The Straight fitting G, carbon steel, zinc-nickel is compatible with hydraulic systems that use metric external threads on both ends. Rationale: - The product description specifies "socket 24Â° DIN 2353, both sides with external metric thread," which matches systems requiring metric external threads on both connections. - It conforms to DIN 2353 Type G geometry (24Â° cone), the standard used widely in hydraulic tube and hose connections, ensuring proper sealing and mechanical fit when used with corresponding DIN 2353 female sockets or ports. - Available in LL, L, S series allows selection by pressure/weight class to match system requirements. - Material and coating (carbon steel with 6â10 Âµm zinc-nickel, high corrosion resistance) suit hydraulic environments. Ensure you match the exact thread size and series (LL/L/S) and use compatible DIN 2353 counterpart components for correct sealing and pressure rating.

Can the Straight fitting G, carbon steel, zinc-nickel, withstand salt spray testing up to 720 hours without corrosion?

Yes. Straight fitting G, carbon steel, zinc-nickel (DIN 2353, socket 24Â° both sides with external metric thread; available LL, L, S) is coated with zinc-nickel at 6â10 Âµm and is described as having very high corrosion resistance - capable of withstanding salt spray testing up to 720 hours without corrosion.

Does the Straight fitting G, carbon steel, zinc-nickel meet DIN 2353 24Â° socket standards on both ends?

Yes. The Straight fitting G, carbon steel, zinc-nickel Format features 24Â° DIN 2353 sockets on both ends and external metric threads on both sides (as specified for type G). It is available in LL, L, and S series, made of carbon steel with a 6â10 Âµm zinc-nickel coating offering high corrosion resistance (up to 720 hours in salt spray).

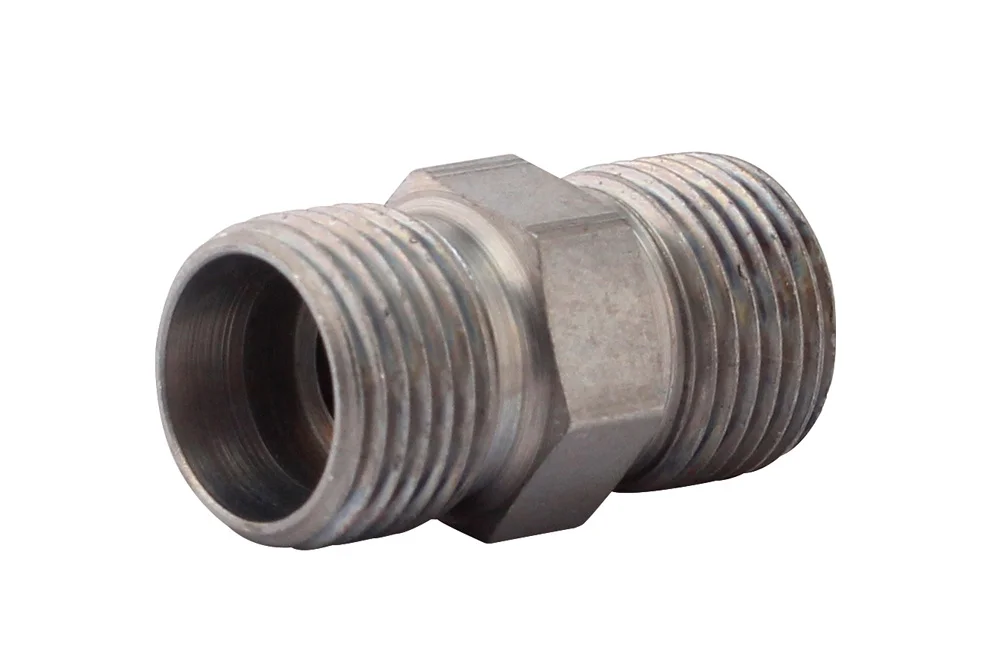

Straight fitting G, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

DIN 2353 straight fitting, type G: socket 24° DIN 2353, both sides with external metric thread. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-G-04LL-CN	DIN 2353 connector G 4LL, Zn-Ni	-	100	In stock	Enquiry
HD-G-06L-CN	DIN 2353 connector G 6L, Zn-Ni	-	315	In stock	Enquiry
HD-G-06LL-CN	DIN 2353 connector G 6LL, Zn-Ni	-	100	In stock	Enquiry
HD-G-06S-CN	DIN 2353 fitting G 6S, Zn-Ni	-	630	In stock	Enquiry
HD-G-08L-CN	DIN 2353 connector G 8L, Zn-Ni	-	315	In stock	Enquiry
HD-G-08LL-CN	DIN 2353 connector G 8LL, Zn-Ni	-	100	In stock	Enquiry
HD-G-08S-CN	DIN 2353 connector G 8S, Zn-Ni	-	630	In stock	Enquiry
HD-G-10L-CN	DIN 2353 connector G 10L, Zn-Ni	-	315	In stock	Enquiry
HD-G-10S-CN	DIN 2353 connector G 10S, Zn-Ni	-	630	In stock	Enquiry
HD-G-12L-CN	DIN 2353 connector G 12L, Zn-Ni	-	315	In stock	Enquiry
HD-G-12S-CN	DIN 2353 connector G 12S, Zn-Ni	-	630	In stock	Enquiry
HD-G-14S-CN	DIN 2353 connector G 14S, Zn-Ni	-	630	In stock	Enquiry
HD-G-15L-CN	DIN 2353 fitting G 15L, Zn-Ni	-	315	In stock	Enquiry
HD-G-16S-CN	DIN 2353 fitting G 16S, Zn-Ni	-	400	In stock	Enquiry
HD-G-18L-CN	DIN 2353 connector G 18L, Zn-Ni	-	315	In stock	Enquiry
HD-G-20S-CN	DIN 2353 fitting G 20S, Zn-Ni	-	400	In stock	Enquiry
HD-G-22L-CN	DIN 2353 fitting G 22L, Zn-Ni	-	160	In stock	Enquiry
HD-G-25S-CN	DIN 2353 fitting G 25S, Zn-Ni	-	400	In stock	Enquiry
HD-G-28L-CN	DIN 2353 connector G 28L, Zn-Ni	-	160	In stock	Enquiry
HD-G-30S-CN	DIN 2353 fitting G 30S, Zn-Ni	-	400	In stock	Enquiry
HD-G-35L-CN	DIN 2353 fitting G 35L, Zn-Ni	-	160	In stock	Enquiry
HD-G-38S-CN	DIN 2353 connector G 38S, Zn-Ni	-	315	In stock	Enquiry
HD-G-42L-CN	DIN 2353 connector G 42L, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 straight fitting, type G: socket 24° DIN 2353, both sides with external metric thread. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
