Can the Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM be sterilized for use in pharmaceutical and medical applications?

Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM can be suitable for pharmaceutical and medical applications, but sterilization suitability depends on material choice and sterilization method. - Materials: PP (polypropylene) and PVDF are chemically resistant; PVDF has superior thermal and chemical stability vs PP. - Sterilization methods: - Autoclaving (steam, 121â134Â°C): PVDF tolerates autoclave conditions well; PP has lower heat resistance and may deform or lose mechanical properties at repeated autoclaving temperatures. - Chemical sterilants (ethylene oxide, peracetic acid, hydrogen peroxide vapor): Both PVDF and PP are generally compatible, but confirm manufacturer guidance for long exposures and consider outgassing/ residues. - Gamma or electron-beam irradiation: PVDF tolerates irradiation better than PP, which can undergo degradation and embrittlement depending on dose. - Design advantages: The flared PFA hose connection and smooth polymer surfaces reduce particle deposition and bacterial accumulation, supporting aseptic use and minimizing leakage. - Recommendation: For reliable sterilization in pharma/medical settings choose the PVDF variant of Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM and validate the chosen sterilization cycle (temperature, chemical exposure, or radiation) with vendor data and in-house qualification (bioburden and material integrity tests) before use in critical applications.

Is Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM compatible with common sterilization methods (autoclave, steam, chemical)?

Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM: Compatibility with sterilization depends on material. PVDF (fluoropolymer) tolerates autoclaving (steam, high temp) and many chemicals-generally suitable for repeated steam sterilization and common chemical sterilants. Polypropylene (PP) has lower heat resistance; it can withstand some steam sterilization but is more prone to deformation or longâterm creep at autoclave temperatures; chemical resistance is good for many agents but limited vs strong oxidizers. Because the product is used in pharma/medical contexts and designed to avoid particle/bacterial accumulation, PVDF versions are preferable when frequent autoclaving or harsh chemical sterilization is required; verify specific supplier/autoclave temperature limits and intended cycle parameters before use.

Does Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM resist corrosion from common cleaning agents?

Yes. Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM is resistant to corrosion from common cleaning agents. Made of polypropylene (PP) and PVDF and intended for laboratory, medical, pharmaceutical, chemical and food use, it is designed for PFA hoses and supports hygienic, flared connections that prevent particle buildup and bacterial accumulation. These thermoplastic materials (PP and PVDF) have good chemical resistance to typical cleaning and sanitizing agents used in those industries, and the productâs construction and working pressure rating (10 bar) are compatible with routine cleaning processes. Note: For specific aggressive chemicals (strong oxidizers, concentrated acids/solvents, or proprietary cleaning formulations) check chemical compatibility with PP/PVDF or consult the manufacturer to confirm suitability for your exact cleaning agents and concentration.

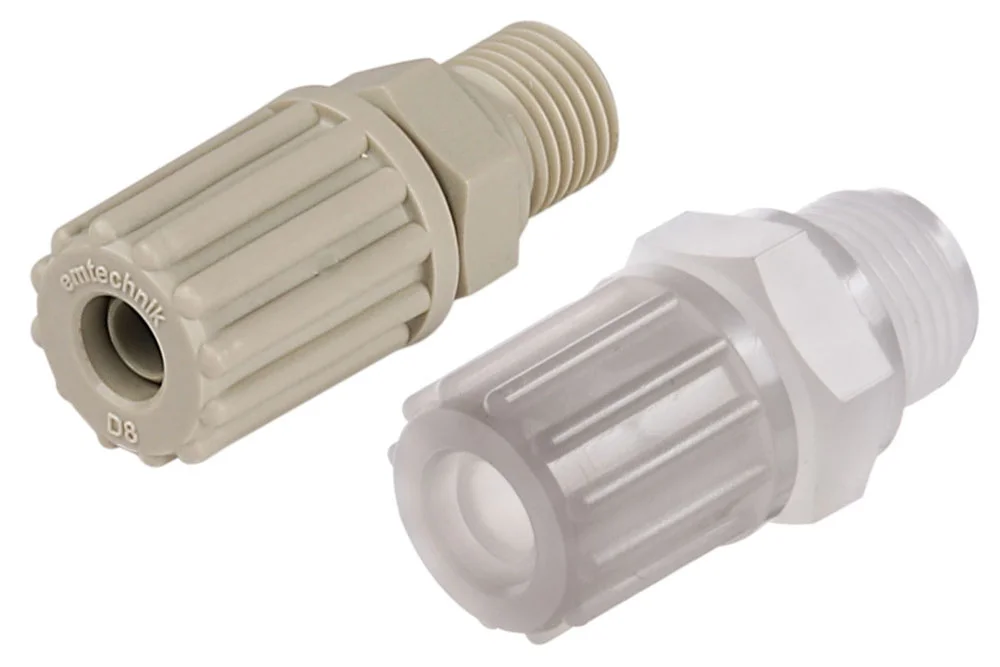

Straight end for hose with GZ BSP plastic PP, PVDF, series 1D type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight end for hose with GZ BSP series 1D type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. It is designed for flexible PFA hoses, which require thermal expansion of the ends for installation (so-called flared connection). This solution guarantees no particle deposition, accumulation of bacteria, and elimination of medium leakage. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1D100MG0312PN	Straight fitting (series 1D) with GZ BSP 1/2", hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG0314PN	Straight fitting (series 1D) with GZ BSP 1/4", hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG0314PV	Straight fitting (series 1D) with GZ BSP 1/4", hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D100MG0318PN	Straight fitting (series 1D) with GZ BSP 1/8", hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG0318PV	Straight fitting (series 1D) with GZ BSP 1/8", hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D100MG0338PN	Straight fitting (series 1D) with GZ BSP 3/8", hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG0338PV	Straight fitting (series 1D) with GZ BSP 3/8", hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D100MG1112PN	Straight fitting (series 1D) with GZ BSP 1/2", hose 1/4" x 3/8", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1112PV	Straight fitting (series 1D) with GZ BSP 1/2", hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D100MG1114PN	Straight fitting (series 1D) with GZ BSP 1/4", hose 1/4" x 3/8", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1114PV	Straight fitting (series 1D) with GZ BSP 1/4", hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D100MG1138PN	Straight fitting (series 1D) with GZ BSP 3/8", hose 1/4" x 3/8", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1138PV	Straight fitting (series 1D) with GZ BSP 3/8", hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D100MG1512PN	Straight fitting (series 1D) with GZ BSP 1/2", hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1512PV	Straight fitting (series 1D) with GZ BSP 1/2", hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D100MG1514PN	Straight fitting (series 1D) with GZ BSP 1/4", hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1514PV	Straight fitting (series 1D) with GZ BSP 1/4", hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D100MG1538PN	Straight end (series 1D) with GZ BSP 3/8", hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D100MG1538PV	Straight fitting (series 1D) with GZ BSP 3/8", hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D100MG2012PV	Straight fitting (series 1D) with GZ BSP 1/2", hose 5/8" x 3/4", PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight end for hose with GZ BSP series 1D type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. It is designed for flexible PFA hoses, which require thermal expansion of the ends for installation (so-called flared connection). This solution guarantees no particle deposition, accumulation of bacteria, and elimination of medium leakage. Material: polypropylene, PVDF. Working pressure: 10 bar.
