Can Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM be used with reinforced silicone and PVC hoses at 16 bar without tools for assembly?

Yes. Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM can be used with reinforced silicone and PVC hoses at 16 bar without tools for assembly. The product description explicitly states it is intended for flexible reinforced hoses with synthetic braiding (PVC, silicone), is made of polypropylene/PVDF, has a working pressure of 16 bar, and its design allows multiple assemblies without the need for tools. Ensure hose inner diameter and reinforcement rating match the fitting dimensions and pressure rating, and follow any manufacturer installation and safety guidelines.

Is Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM compatible with food-grade hoses in pharmaceutical labs?

Yes. Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM is suitable for use with food-grade hoses in pharmaceutical lab environments. The product description explicitly states applications in laboratories, medicine, pharmaceutical and food industries, and it is designed for flexible reinforced hoses with synthetic braiding (PVC, silicone). Materials (polypropylene, PVDF) are commonly used in food and pharma due to chemical resistance and cleanability, and the tool-free assembly supports frequent reconfiguration. Ensure the specific hose material and any seals meet your facilityâs food-grade and pharmaceutical certifications (e.g., FDA, EU 1935/2004, USP) and validate compatibility with your media and cleaning/SIP procedures before use.

Can Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM withstand chemical sterilization methods used in labs?

Hose end straight with GZ BSP, plastic PP, PVDF, series 1B+ type EM can be suitable for some laboratory chemical sterilization methods, but suitability depends on the sterilization agent, temperature, exposure time and hose material (PP or PVDF). Key considerations: - Materials: PVDF (polyvinylidene fluoride) has excellent chemical resistance and tolerates many aggressive chemicals and higher temperatures better than polypropylene (PP). PP is chemically resistant to many reagents but less resistant to strong oxidizers and high temperatures. - Common sterilization methods: - Autoclaving (steam, 121â134 Â°C): PVDF may tolerate autoclave temperatures for limited cycles; PP typically softens or deforms near autoclave temperatures (melting point ~160 Â°C but heat resistance lower), so repeated autoclaving is generally not recommended for PP fittings. - Chemical sterilants (70% ethanol, isopropanol): Both PP and PVDF resist alcohols well; hose end should withstand routine alcohol wiping or immersion. - Bleach (sodium hypochlorite): PVDF is generally resistant to diluted bleach; PP can be attacked or discolored over time by oxidizing agentsâlimited exposure recommended. - Hydrogen peroxide (liquid or vapor): PVDF shows good resistance to H2O2; PP may be acceptable for low concentrations and short exposures but long or repeated exposure can be problematic. - Gas plasma or ethylene oxide (EtO): These low-temperature methods are typically compatible with plastic fittings, but confirm compatibility with any residuals and the complete hose assembly. - Mechanical/assembly factors: The fitting is designed for flexible reinforced hoses (PVC, silicone) and tool-free multiple assemblies. Ensure the hose material and reinforcement also tolerate the chosen sterilization method; the weakest component governs suitability. - Working pressure: 16 bar rating is mechanical and unrelated to sterilization chemical compatibility; chemical/thermal exposure can reduce mechanical performanceâinspect for swelling, cracking or loss of seal after sterilization. Recommendation: For aggressive or high-temperature sterilization (repeated autoclaving, strong oxidizers), prefer PVDF fittings and verify with manufacturer chemical compatibility data and validation tests under your specific sterilization conditions. If using PP or assembled with PVC/silicone hoses, perform compatibility testing before routine use.

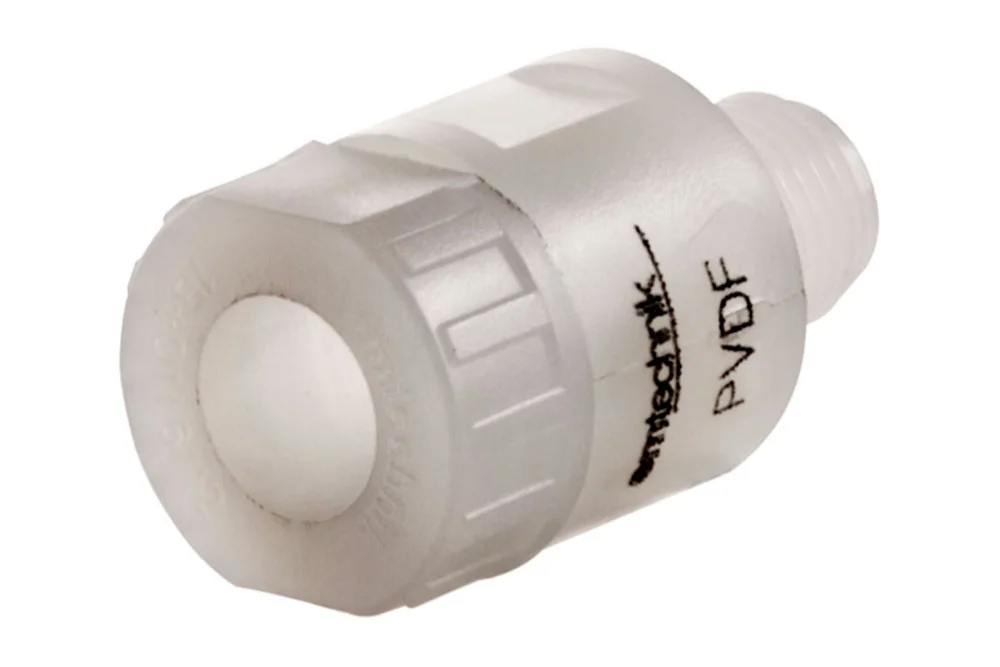

Straight hose fitting with a BSP male thread, of PP, PVDF plastic, 1B+ series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. It is intended for flexible hoses reinforced with a synthetic braid (PVC, silicone). Material: polypropylene, PVDF. Working pressure: 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1BP100MG4412PV	Straight fitting (1B series+) with 1/2" BSP male, hose 6x12 mm, PVDF	6	16	In stock	Enquiry
EM-1BP100MG4414PP	Straight fitting (1B series+) with 1/4" BSP male, hose 6x12 mm, polypropylene	6	16	In stock	Enquiry
EM-1BP100MG4414PV	Straight fitting (1B series+) with 1/4" BSP male, hose 6x12 mm, PVDF	6	16	In stock	Enquiry
EM-1BP100MG4438PP	Straight fitting (1B series+) with 3/8" BSP male, hose 6x12 mm, polypropylene	6	16	In stock	Enquiry
EM-1BP100MG4438PV	Straight fitting (1B series+) with 3/8" BSP male, hose 6x12 mm, PVDF	6	16	In stock	Enquiry
EM-1BP100MG4512PV	Straight fitting (1B series+) with 1/2" BSP male, hose 8x14 mm, PVDF	8	16	In stock	Enquiry
EM-1BP100MG4538PP	Straight fitting (1B series+) with 3/8" BSP male, hose 8x14 mm, polypropylene	8	16	In stock	Enquiry
EM-1BP100MG4538PV	Straight fitting (1B series+) with 3/8" BSP male, hose 8x14 mm, PVDF	8	16	In stock	Enquiry
EM-1BP100MG4712PP	Straight fitting (1B series+) with 1/2" BSP male, hose 9x15 mm, polypropylene	8	16	In stock	Enquiry
EM-1BP100MG4712PV	Straight fitting (1B series+) with 1/2" BSP male, hose 9x15 mm, PVDF	8	16	In stock	Enquiry
EM-1BP100MG4738PV	Straight fitting (1B series+) with 3/8" BSP male, hose 9x15 mm, PVDF	8	16	In stock	Enquiry
EM-1BP100MG5712PP	Straight fitting (1B series+) with 1/2" BSP male, hose 13x20 mm, polypropylene	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. It is intended for flexible hoses reinforced with a synthetic braid (PVC, silicone). Material: polypropylene, PVDF. Working pressure: 16 bar.
