Can I safely seal a JIC straight fitting with carbon steel NPT socket, type EVGE-NT, using Teflon tape or anaerobic sealant on the threads?

Yes . you can safely seal a JIC straight fitting with carbon steel NPT socket, type EVGE-NT, using either PTFE (Teflon) tape or an anaerobic thread sealant, provided you follow proper practices. Key points: - This fitting is a JIC straight fitting with external NPT thread where the pressure seal for the port is made on the thread, so a thread sealant is appropriate. - PTFE tape: Use good-quality, pipe-grade PTFE tape (white) rated for hydraulic/oil service. Wrap 3â5 turns clockwise (as you face the male thread) so the tape doesnât unwrap when you screw in the fitting. Avoid over-wrapping which can interfere with thread engagement. - Anaerobic sealant: Choose a medium-strength, oil-resistant anaerobic thread sealant compatible with carbon steel and hydraulic fluids (e.g., Loctite 567/518 or equivalent). Apply a thin, even coat to the male threads; allow proper cure time per manufacturer instructions before pressurizing. - Cleanliness and prep: Remove oil, dirt, and old sealant from threads before application. Ensure threads are undamaged for proper mechanical engagement and sealing. - Assembly torque: Tighten to the manufacturerâs recommended torque or follow standard practice for NPT/JIC combinations.do not rely on excessive torque to compensate for poor sealing. - Safety: Verify chemical compatibility of the sealant with system fluid and operating temperature/pressure. For critical/high-pressure or vibration-prone systems, prefer anaerobic sealant for greater resistance to loosening and leakage. In summary: both PTFE tape and a suitable anaerobic sealant are acceptable for the JIC straight fitting with carbon steel NPT socket, type EVGE-NT, if applied correctly and with attention to compatibility, cleanliness, and proper assembly.

Is it acceptable to apply Teflon tape or anaerobic sealant to threads of JIC straight fitting with carbon steel NPT socket, type EVGE-NT?

Yes. For JIC straight fitting with carbon steel NPT socket, type EVGE-NT, it is acceptable to apply PTFE (Teflon) tape or an anaerobic thread sealant to the NPT thread because the seal is made on the tapered pipe thread. Use proper technique: wrap PTFE tape clockwise 3â5 turns starting at the second thread, avoid overwrapping that can prevent proper thread engagement; or apply an anaerobic sealant compatible with carbon steel and the hydraulic fluid, coating male threads thinly and assembling promptly. Do not apply sealant to the JIC 37Â° flare seating surface. Ensure correct torque and leak-test after assembly.

Can Teflon tape or anaerobic sealant be used on threads of JIC straight fitting with carbon steel NPT socket, type EVGE-NT?

Yes. for the JIC straight fitting with carbon steel NPT socket, type EVGE-NT, you may use either PTFE (Teflon) tape or an anaerobic thread sealant on the external NPT threads, because the sealing method for this part is on the thread (not on the JIC seat). Practical guidance: - PTFE (Teflon) tape: use high-quality, gas-rated tape applied 2â4 wraps, wrapped in the thread direction, avoid overpacking to prevent contamination of the fluid system. Suitable for many hydraulic and pneumatic applications but ensure compatibility with system fluids and pressure/temperature. - Anaerobic sealant: choose a product rated for metal NPT connections, appropriate strength (removable vs. permanent) and compatible with carbon steel and system fluid. Apply per manufacturer instructions, assemble while sealant is liquid, allow cure time. Precautions: - Verify fluid compatibility and operating pressure/temperature with the chosen sealant or tape. - Ensure threads are clean and undamaged before application. - For critical high-pressure or safety-critical hydraulic systems, follow system manufacturer recommendations or use specified seal methods to avoid leakage or contamination. - Do not apply thread sealant to the JIC 37Â° machined seating surface; the JIC seat must remain clean and seal mechanically.

JIC straight fitting with carbon steel NPT socket, type EVGE-NT

Additional information

Material	CS – steel (cast iron)
Standard length [m]	15

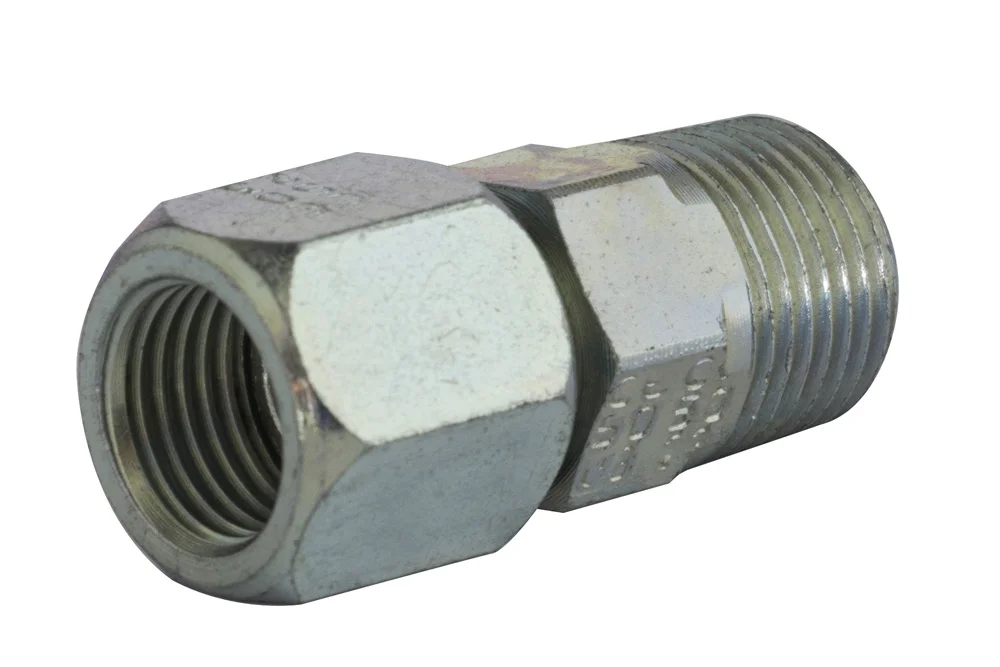

Straight JIC 37° fitting with external NPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-EVGE-07-NT-02	GW JIC 7/16"-20 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-07-NT-04	GW JIC 7/16"-20 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-08-NT-02	GW JIC 1/2"-20 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-08-NT-04	GW JIC 1/2"-20 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-09-NT-02	GW JIC 9/16"-18 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-09-NT-04	GW JIC 9/16"-18 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-09-NT-06	GW JIC 9/16"-18 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-09-NT-08	GW JIC 9/16"-18 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-EVGE-12-NT-04	GW JIC 3/4"-16 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-12-NT-06	GW JIC 3/4"-16 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-12-NT-08	GW JIC 3/4"-16 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-EVGE-12-NT-12	GW JIC 3/4"-16 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-14-NT-06	GW JIC 7/8"-14 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-EVGE-14-NT-08	GW JIC 7/8"-14 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-EVGE-14-NT-12	GW JIC 7/8"-14 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-17-NT-08	GW JIC 1.1/16"-12 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-EVGE-17-NT-12	GW JIC 1.1/16"-12 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-EVGE-21-NT-12	GW JIC 1.5/16"-12 / GZ NPT 3/4" fitting	-	290	In stock	Enquiry
HJ-EVGE-21-NT-16	GW JIC 1.5/16"-12 / GZ NPT 1"	-	290	In stock	Enquiry
HJ-EVGE-26-NT-16	GW JIC 1.5/8"-12 / GZ NPT 1"	-	240	In stock	Enquiry
HJ-EVGE-26-NT-20	GW JIC 1.5/8"-12 / GZ NPT 1.1/4"	-	240	In stock	Enquiry
HJ-EVGE-30-NT-24	GW JIC 1.7/8"-12 / GZ NPT 1.1/2"	-	240	In stock	Enquiry
