Can NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 be installed without cutting the hose rubber using crimping sleeve TI-N?

Yes. The NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 can be installed without cutting the hose rubber when used with the appropriate crimping sleeve TI-N. The product description for the Straight non-skive collar end SUPER CAT (SFC) specifies it is designed for crimping on hoses type 4SP, 4SH, R13, and R15 using the TI-N sleeve, and explicitly states installation is possible without removing the hose rubber. Ensure you use the correct TI-N sleeve size for the hose and follow manufacturer crimping specifications and tooling to achieve a proper, leak-free crimp.

Is NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 compatible with hose types 4SP/4SH/R13/R15 when using crimping sleeve TI-N without cutting the hose rubber?

Yes. NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 is compatible with hose types 4SP, 4SH, R13, and R15 when using crimping sleeve TI-N, and it can be installed without cutting the hose rubber, per the product description.

Does NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 require special tools for crimping with TI-N sleeve?

No. NON SKIVE SAE SUPERCAT straight flange end, carbon steel, type NSK113 does not require special tools for crimping when used with the TI-N sleeve. According to the product description for the Straight non-skive collar end SUPER CAT (SFC), it is designed for crimping on hoses type 4SP, 4SH, R13, and R15 using the TI-N crimping sleeve, with installation performed without cutting the hose rubber. Standard hydraulic crimping equipment compatible with TI-N sleeves (correct die set and machine capable of producing the specified crimp diameter and force for the sleeve/hose combination) is sufficient. Ensure you use the manufacturer-recommended TI-N sleeve size, the proper crimping dies for that sleeve, and follow specified crimping parameters to achieve a reliable joint.

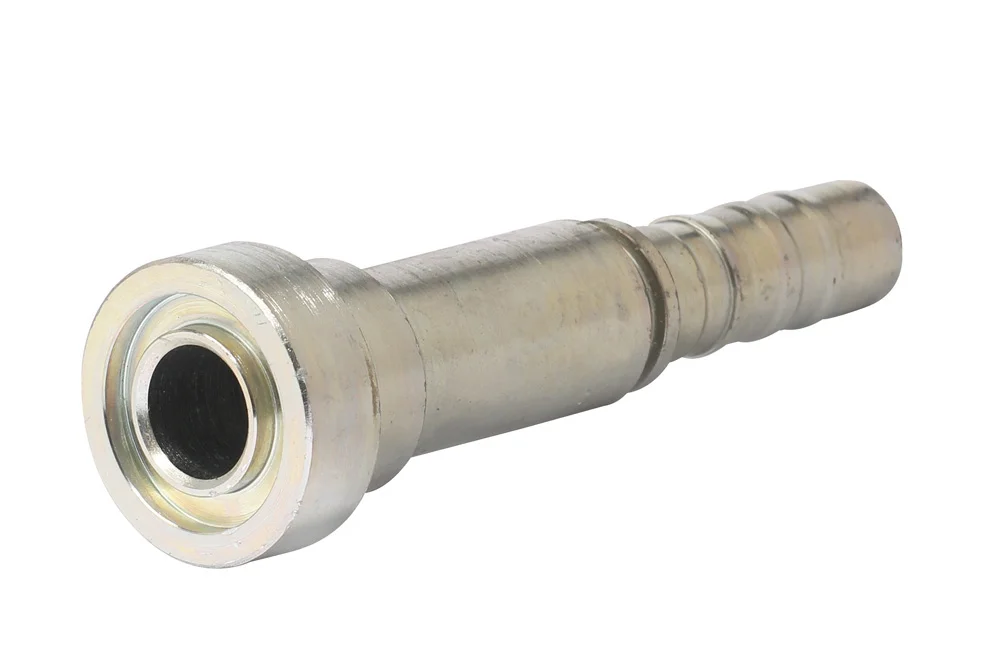

Fitting flange straight NON SKIVE SAE SUPERCAT, carbon steel, type NSK113

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting flange straight NON SKIVE SUPERCAT (SFC), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NSK113-12-12	Flange fitting NON SKIVE SUPERCAT 3/4", hose 3/4"	20	420	In stock	Enquiry
TI-NSK113-16-12	Flange fitting NON SKIVE SUPERCAT 1", hose 3/4"	20	420	In stock	Enquiry
TI-NSK113-16-16	Flange fitting NON SKIVE SUPERCAT 1", hose 1"	25	415	In stock	Enquiry
TI-NSK113-20-16	Flange fitting NON SKIVE SUPERCAT 1.1/4", hose 1"	25	415	In stock	Enquiry
TI-NSK113-20-20	Flange fitting NON SKIVE SUPERCAT 1.1/4", hose 1.1/4"	32	415	In stock	Enquiry
TI-NSK113-24-20	Flange fitting NON SKIVE SUPERCAT 1.1/2", hose 1.1/4"	32	415	In stock	Enquiry
TI-NSK113-24-24	Flange fitting NON SKIVE SUPERCAT 1.1/2", hose 1.1/2"	38	415	In stock	Enquiry
TI-NSK113-32-32	Flange fitting NON SKIVE SUPERCAT 2", hose 2"	50	345	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange straight NON SKIVE SUPERCAT (SFC), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.
