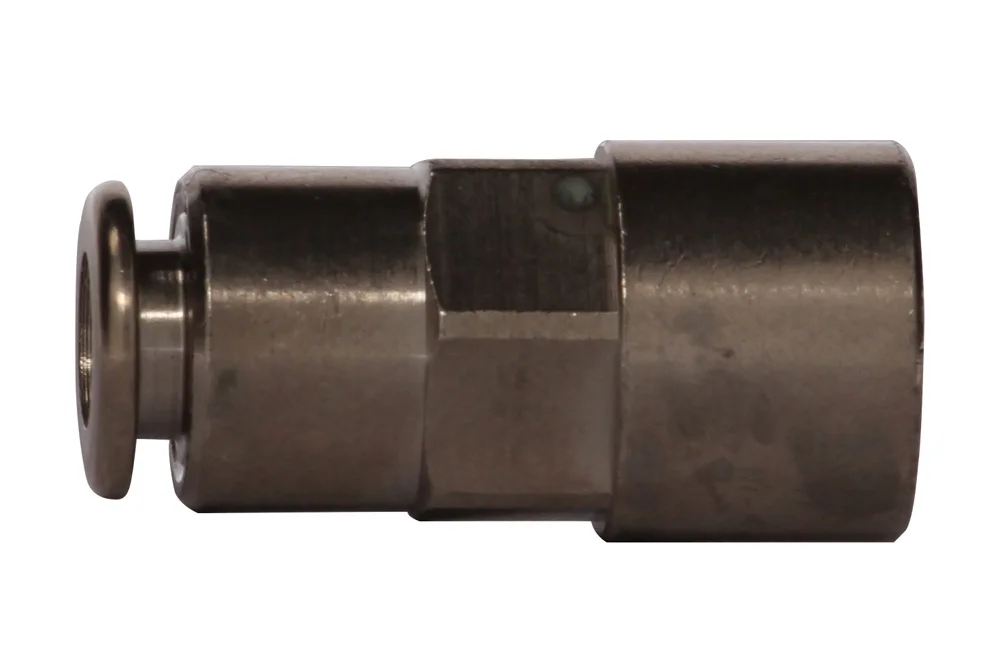

Coupling push-in straight with a thread internal, type R 2 NSF
Connection straight with a thread internal, series F type R 2 NSF. intended for industry food (e.g. for cold or hot water potable). no element plastic, coated coating nickel in special process chemical and seal made of Viton ensure high resistance to action detergents and other agents chemical. is suitable also for many applications in industry chemical, pharmaceutical, electronic and in medicine. Operating temperature: od -20°C up to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: brass nickel-plated. sealing: Viton (approved for contact with food through FDA). standards: NSF/ANSI 51, NSF/ANSI 61.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Connection straight with a thread internal, series F type R 2 NSF. intended for industry food (e.g. for cold or hot water potable). no element plastic, coated coating nickel in special process chemical and seal made of Viton ensure high resistance to action detergents and other agents chemical. is suitable also for many applications in industry chemical, pharmaceutical, electronic and in medicine. Operating temperature: od -20°C up to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: brass nickel-plated. sealing: Viton (approved for contact with food through FDA). standards: NSF/ANSI 51, NSF/ANSI 61.
Additional information
| Material | B – brass (bronze) |
|---|
