Is the PUSH-IN straight connection with male thread, brass, type AI 58000 compatible with polyamide hoses and safe to use at temperatures between -30Â°C and +150Â°C?

Yes. The PUSH-IN straight connection with male thread, brass, type AI 58000 is compatible with polyamide hoses (polyamide is the recommended hose material) and is safe to use across the specified temperature range. Its body is nickelâplated brass, the sealing uses an HNBR Oâring, and the operating temperature is â30Â°C to +150Â°C. Maximum working pressure is 150 bar for liquids and 30 bar for air, so ensure your application stays within those limits.

Can PUSH-IN straight connection with male thread, brass, type AI 58000 be used for air applications up to 30 bar with HNBR o-ring sealing?

Yes. PUSH-IN straight connection with male thread, brass, type AI 58000 can be used for air applications up to 30 bar with HNBR o-ring sealing. The product specification lists HNBR o-ring sealing, an operating temperature range of -30Â°C to +150Â°C, and a maximum working pressure of 30 bar for air, so it meets those conditions. Ensure connected hoses are compatible (recommended material: polyamide) and operating conditions (temperature, media) remain within the specified limits.

Can PUSH-IN straight connection with male thread, brass, type AI 58000 be used with non-polyamide hoses?

PUSH-IN straight connection with male thread, brass, type AI 58000 is designed primarily for use with polyamide hoses (recommended by the manufacturer). Its body is nickelâplated brass and the seal is an HNBR Oâring; it is specified for lubrication technology, with an operating temperature range of â30 Â°C to +150 Â°C and maximum working pressures of 150 bar (liquids) and 30 bar (air). Using it with nonâpolyamide hoses is possible only if those hoses are compatible with the connectorâs mechanical and chemical requirements: - Outer diameter and cutâend geometry must match the PUSHâIN design so the Oâring and retention mechanism can seal and hold reliably. Hoses that are softer, more elastic, or have different wall construction may not grip or seal correctly. - The hose material must be compatible with HNBR and with the intended media and temperatures (â30 to +150 Â°C). Some elastomers, PVCs, PTFE, rubber blends or reinforced hoses may swell, harden or degrade when exposed to the lubricant or temperature range. - The connectorâs pressure ratings must not be exceeded given the hoseâs burst/working pressure and the system conditions (pulsation, vibration). If you intend to use a nonâpolyamide hose, verify: hose OD and wall type fit the PUSHâIN retaining profile; chemical compatibility with HNBR and the lubricant; and sufficient mechanical strength for up to 150 bar (liquids) or 30 bar (air) as applicable. When in doubt, test the assembled connection under real working conditions or consult the manufacturer/supplier for confirmed compatibility and any application restrictions.

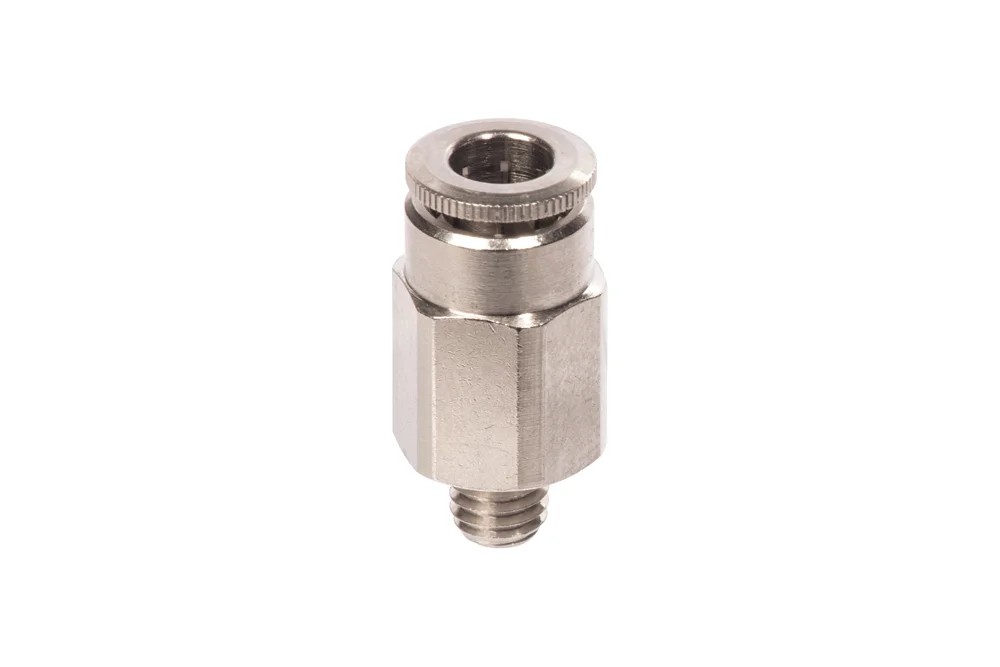

Fitting straight PUSH-IN with a thread external, brass, type AI 58000

Additional information

Material	B – brass (bronze)

Fitting straight PUSH-IN for hose terminated a BSPT male thread or metric. Do use in technology lubrication. recommended material joined hoses is polyamide. Body material: brass nickel-plated. Material seal: O-ring (HNBR). Operating temperature: od -30°C up to +150°C. maximum Working pressure: 150 bar (for liquids), 30 bar (for air).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-58000-04-02	Straight fitting PUSH-IN hose 4 mm, 1/8" BSPT male	-	150	In stock	Enquiry
AI-58000-04-M10	Straight fitting PUSH-IN hose 4 mm, M10x1 male cone	-	150	In stock	Enquiry
AI-58000-04-M6	Straight fitting PUSH-IN hose 4 mm, M6x1 male cone	-	150	In stock	Enquiry
AI-58000-04-M8	Straight fitting PUSH-IN hose 4 mm, M8x1 male cone	-	150	In stock	Enquiry
AI-58000-06-02	Straight fitting PUSH-IN hose 6 mm, 1/8" BSPT male	-	150	In stock	Enquiry
AI-58000-06-M10	Straight fitting PUSH-IN hose 6 mm, M10x1 male cone	-	150	In stock	Enquiry
AI-58000-06-M6	Straight fitting PUSH-IN hose 6 mm, M6x1 male cone	-	150	In stock	Enquiry
AI-58000-06-M8	Straight fitting PUSH-IN hose 6 mm, M8x1 male cone	-	150	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting straight PUSH-IN for hose terminated a BSPT male thread or metric. Do use in technology lubrication. recommended material joined hoses is polyamide. Body material: brass nickel-plated. Material seal: O-ring (HNBR). Operating temperature: od -30°C up to +150°C. maximum Working pressure: 150 bar (for liquids), 30 bar (for air).
