Is the Straight reduction fitting GR, stainless steel (24Â° DIN 2353, AISI 316) available in both L (light) and S (heavy) series with external metric threads on both sides?

Yes. The Straight reduction fitting GR, stainless steel (24Â° DIN 2353, AISI 316) is available in both L (light) and S (heavy) series and has external metric threads on both sides.

Does the Straight reduction fitting GR, stainless steel (24Â° DIN 2353, AISI 316) come with external metric threads on both ends only in L and S series?

Yes. According to the description, the Straight reduction fitting GR, stainless steel (24Â° DIN 2353, AISI 316) with a 24Â° DIN 2353 socket and external metric thread on both sides is available in the L (light) and S (heavy) series only.

Are Straight reduction fitting GR, stainless steel available in metric external thread versions for both ends only in L and S series?

Yes. Straight reduction fitting GR, stainless steel Format with 24Â° DIN 2353 sockets and metric external threads on both ends is available in metric external thread versions for both ends only in the L (light) and S (heavy) series. Material: AISI 316 steel.

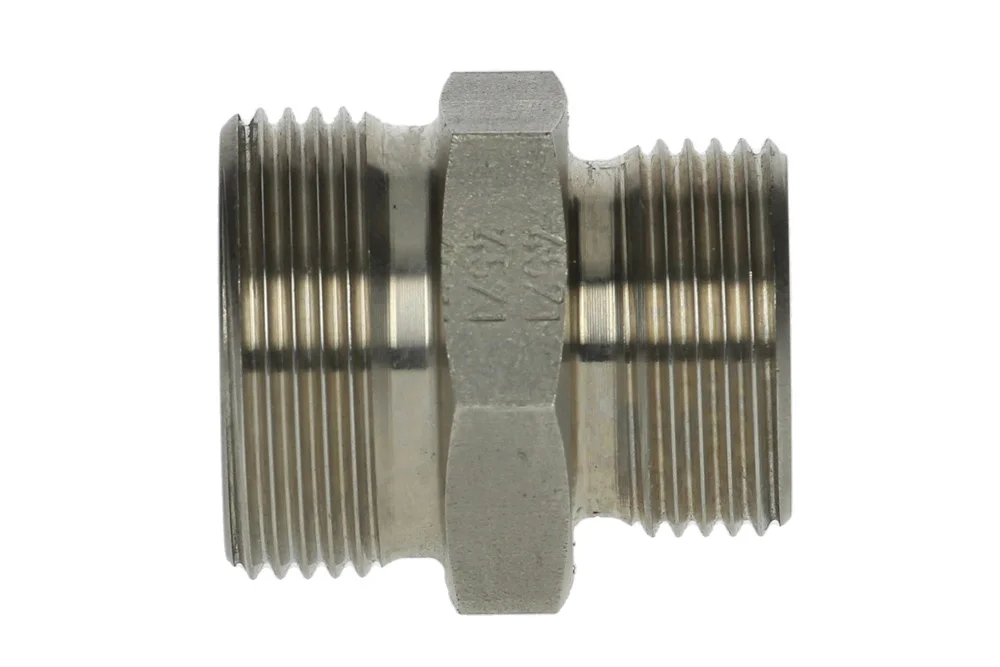

Straight reduction fitting GR, stainless steel

Additional information

Material	SS – stainless steel

DIN 2353 straight reducing fitting, type GR: 24° DIN 2353 socket with external metric thread on both sides. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-GR-08-06L-SS	Connector red. DIN 2353 GR 8/6 L, AISI 316	-	500	In stock	Enquiry
HD-GR-08-06S-SS	Connector red. DIN 2353 GR 8/6 S, AISI 316	-	800	In stock	Enquiry
HD-GR-10-06L-SS	Connector red. DIN 2353 GR 10/6 L, AISI 316	-	500	In stock	Enquiry
HD-GR-10-06S-SS	Connector red. DIN 2353 GR 10/6 S, AISI 316	-	800	In stock	Enquiry
HD-GR-10-08L-SS	Connector red. DIN 2353 GR 10/8 L, AISI 316	-	500	In stock	Enquiry
HD-GR-10-08S-SS	Connector red. DIN 2353 GR 10/8 S, AISI 316	-	800	In stock	Enquiry
HD-GR-12-06L-SS	Connector red. DIN 2353 GR 12/6 L, AISI 316	-	400	In stock	Enquiry
HD-GR-12-06S-SS	Red. connector DIN 2353 GR 12/6 S, AISI 316	-	630	In stock	Enquiry
HD-GR-12-08L-SS	Connector red. DIN 2353 GR 12/8 L, AISI 316	-	400	In stock	Enquiry
HD-GR-12-08S-SS	Connector red. DIN 2353 GR 12/8 S, AISI 316	-	630	In stock	Enquiry
HD-GR-12-10L-SS	Connector red. DIN 2353 GR 12/10 L, AISI 316	-	400	In stock	Enquiry
HD-GR-12-10S-SS	Connector red. DIN 2353 GR 12/10 S, AISI 316	-	630	In stock	Enquiry
HD-GR-14-10S-SS	Connector red. DIN 2353 GR 14/10 S, AISI 316	-	630	In stock	Enquiry
HD-GR-14-12S-SS	Connector red. DIN 2353 GR 14/12 S, AISI 316	-	630	In stock	Enquiry
HD-GR-15-10L-SS	Connector red. DIN 2353 GR 15/10 L, AISI 316	-	400	In stock	Enquiry
HD-GR-15-12L-SS	Connector red. DIN 2353 GR 15/12 L, AISI 316	-	400	In stock	Enquiry
HD-GR-16-12S-SS	Connector red. DIN 2353 GR 16/12 S, AISI 316	-	630	In stock	Enquiry
HD-GR-16-14S-SS	Connector red. DIN 2353 GR 16/14 S, AISI 316	-	630	In stock	Enquiry
HD-GR-18-08L-SS	Connector red. DIN 2353 GR 18/8 L, AISI 316	-	400	In stock	Enquiry
HD-GR-18-10L-SS	Connector red. DIN 2353 GR 18/10 L, AISI 316	-	400	In stock	Enquiry
HD-GR-18-12L-SS	Connector red. DIN 2353 GR 18/12 L, AISI 316	-	400	In stock	Enquiry
HD-GR-18-15L-SS	Connector red. DIN 2353 GR 18/15 L, AISI 316	-	400	In stock	Enquiry
HD-GR-20-10S-SS	Connector red. DIN 2353 GR 20/10 S, AISI 316	-	420	In stock	Enquiry
HD-GR-20-12S-SS	Connector red. DIN 2353 GR 20/12 S, AISI 316	-	420	In stock	Enquiry
HD-GR-20-16S-SS	Connector red. DIN 2353 GR 20/16 S, AISI 316	-	420	In stock	Enquiry
HD-GR-22-12L-SS	Connector red. DIN 2353 GR 22/12 L, AISI 316	-	250	In stock	Enquiry
HD-GR-22-15L-SS	Connector red. DIN 2353 GR 22/15 L, AISI 316	-	250	In stock	Enquiry
HD-GR-22-18L-SS	Connector red. DIN 2353 GR 22/18 L, AISI 316	-	250	In stock	Enquiry
HD-GR-25-16S-SS	Connector red. DIN 2353 GR 25/16 S, AISI 316	-	420	In stock	Enquiry
HD-GR-25-20S-SS	Connector red. DIN 2353 GR 25/20 S, AISI 316	-	420	In stock	Enquiry
HD-GR-28-18L-SS	Connector red. DIN 2353 GR 28/18 L, AISI 316	-	250	In stock	Enquiry
HD-GR-28-22L-SS	Connector red. DIN 2353 GR 28/22 L, AISI 316	-	250	In stock	Enquiry
HD-GR-30-20S-SS	Connector red. DIN 2353 GR 30/20 S, AISI 316	-	420	In stock	Enquiry
HD-GR-30-25S-SS	Connector red. DIN 2353 GR 30/25 S, AISI 316	-	420	In stock	Enquiry
HD-GR-35-22L-SS	Connector red. DIN 2353 GR 35/22 L, AISI 316	-	250	In stock	Enquiry
HD-GR-35-28L-SS	Connector red. DIN 2353 GR 35/28 L, AISI 316	-	250	In stock	Enquiry
HD-GR-38-30S-SS	Connector red. DIN 2353 GR 38/30 S, AISI 316	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 straight reducing fitting, type GR: 24° DIN 2353 socket with external metric thread on both sides. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
