Is the Straight swivel coupling, galvanized steel, type R-GGL suitable for high-speed rotation applications?

No. The Straight swivel coupling, galvanized steel, type R-GGL is not suitable for high-speed rotation applications. It is specifically described as a rotary joint designed for hydraulic oil with a ball bearing for low-torque rotation and explicitly states it is not designed for operation at high rotational speeds. Use it only for low-speed or intermittent rotary movement within its material and sealing limits (galvanized steel, NBR) and operating temperature range (â20Â°C to +80Â°C).

Can the Straight swivel coupling, galvanized steel, type R-GGL be used with fluids other than hydraulic oil?

Straight swivel coupling, galvanized steel, type R-GGL is designed specifically for hydraulic oil. Its NBR seals, operating temperature range (-20Â°C to +80Â°C) and galvanized steel construction may be compatible with some other non-aggressive fluids (certain mineral oils, light oils) but are not suitable for all media. NBR is incompatible with many solvents, strong acids, alkalis, some synthetic fluids and high-temperature or oxygen-rich media. The joint is also rated for low torque and low rotational speed only. Before using any fluid other than hydraulic oil, check chemical compatibility of NBR and galvanized steel with that fluid, verify pressure/temperature limits and consult the manufacturer. Without such confirmation, using other fluids is not recommended.

Does the Straight swivel coupling, galvanized steel, type R-GGL require periodic lubrication for optimal performance?

Straight swivel coupling, galvanized steel, type R-GGL does not explicitly state a requirement for periodic lubrication in the provided description. The unit is designed as a straight rotary joint with ball bearing for hydraulic oil, intended for low-torque rotation and not for high rotational speeds. Materials (galvanized steel) and NBR seals suggest it is built for durable operation in the specified temperature range (-20Â°C to +80Â°C). Best practice guidance: - Because it uses ball bearings, periodic inspection is advisable. Light lubrication can extend bearing life if contamination or wear is observed. - If the systemâs hydraulic oil contacts internal bearing surfaces, the oil may provide some lubrication; verify compatibility with NBR seals. - For installations with frequent rotation, heavy loads, contamination, or temperatures near limits, schedule routine checks and consider applying appropriate bearing lubricant compatible with galvanized steel and NBR seals. - Follow any manufacturer maintenance recommendations if available. Conclusion: No mandatory periodic lubrication is specified in the description, but periodic inspection and conditional lubrication of bearings are recommended for optimal performance depending on operating conditions.

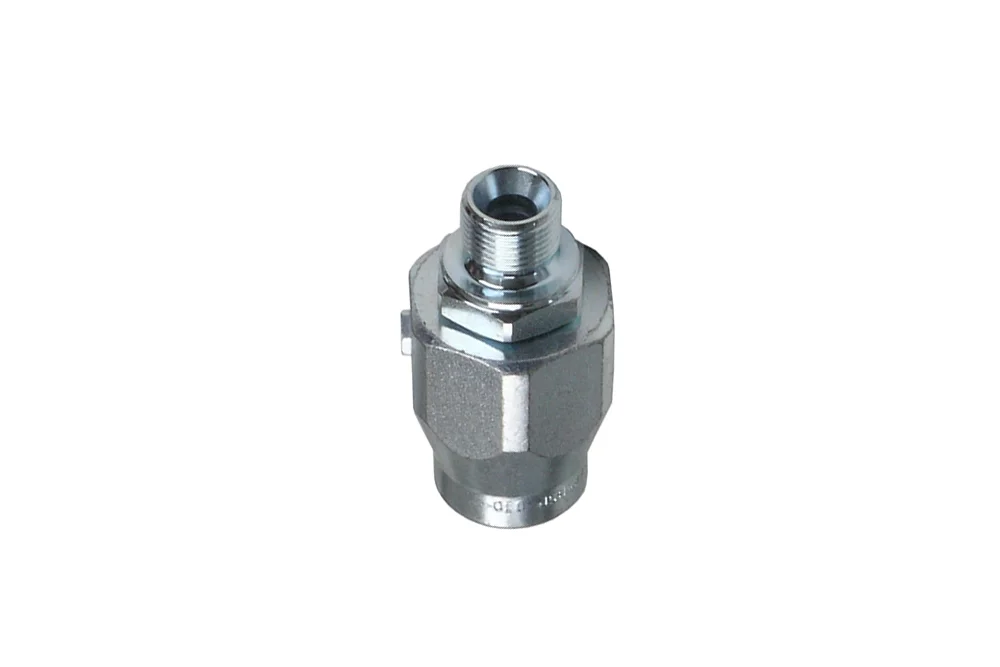

Swivel coupling straight, steel galvanized, type R-GGL

All products, Hydraulic rotary unions/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	152.4

Swivel coupling straight R-GGL with bearing ball intended for oil hydraulic. used in systems demanding connections swivel in order to eliminating stresses hoses. coupling intended for performing revolutions at small moment swivel. Not is designed for use with large speeds swivel. Material: steel galvanized. sealing: NBR. Connection: female / BSP male. Operating temperature: od -20°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DC-R-GGL-04	Coupling swivel type GGL 1/4"	-	400	In stock	Enquiry
DC-R-GGL-06	Coupling swivel type GGL 3/8"	-	400	In stock	Enquiry
DC-R-GGL-12	Coupling swivel type GGL 3/4"	-	300	In stock	Enquiry
DC-R-GGL-16	Coupling swivel type GGL 1"	-	300	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Swivel coupling straight R-GGL with bearing ball intended for oil hydraulic. used in systems demanding connections swivel in order to eliminating stresses hoses. coupling intended for performing revolutions at small moment swivel. Not is designed for use with large speeds swivel. Material: steel galvanized. sealing: NBR. Connection: female / BSP male. Operating temperature: od -20°C up to +80°C.
