Can the Spigot to be welded to flange, AISI 304 steel, WRS type be used with RS shell clamp and TI-LR/TI-LDR sleeve for EN 1092-1 PN16 installations?

Yes. Spigot to be welded to flange, AISI 304 steel, WRS type described as "Welding stub, type WRS, for flange EN 1092-1 PN16 for installation with RS shell clamp or for tightening with TI-LR, TI-LDR sleeve. Material: AISI 304 steel" is intended specifically for EN 1092-1 PN16 flanges and is compatible with both RS shell clamp and TI-LR/TI-LDR sleeve installation methods. Ensure proper welding procedure for AISI 304, correct flange dimensions to EN 1092-1 PN16, and follow manufacturer torque/sealing instructions for the RS clamp or TI-LR/TI-LDR sleeve to achieve leak-free assembly.

Is the Spigot to be welded to flange, AISI 304 steel, WRS type compatible with EN 1092-1 PN16 when used with RS shell clamp only (without TI-LR/TI-LDR)?

No. Spigot to be welded to flange, AISI 304 steel, WRS type described for EN 1092-1 PN16 is intended for installation with RS shell clamp or for tightening with TI-LR/TI-LDR sleeve. Using it with RS shell clamp only (without TI-LR/TI-LDR) does not match the specified installation options, so it is not compatible per the given description.

Can Spigot to be welded to flange, AISI 304 steel, WRS type be used with other clamp/sleeve models besides RS shell clamp and TI-LR/TI-LDR?

Yes. Spigot to be welded to flange, AISI 304 steel, WRS type is designed specifically for installation with the RS shell clamp or for tightening with the TI-LR / TI-LDR sleeve as stated in the product description. Using other clamp or sleeve models is possible only if they match the same critical parameters: flange and spigot dimensions, clamp inner diameter and profile, bolt torque and clamp sealing method, and material compatibility (AISI 304 in this case). Before substituting another model, verify: - Dimensional compatibility: mating flange/pipe OD, spigot length and O.D., and PN16 flange face dimensions per EN 1092-1. - Clamp/sleeve profile and sealing design: the alternative must engage the spigot and flange in the same way (RS shell clamp and TI-LR/TI-LDR have defined shell geometry and sealing arrangement). - Mechanical requirements: required clamp preload/bolt torque and axial/ radial loads the joint must resist. - Pressure and temperature ratings: alternative clamp/sleeve must be rated for PN16 and the service conditions. - Material and corrosion compatibility: AISI 304 spigot paired with the clamp/sleeve materials must avoid galvanic or corrosion issues. - Certification and warranty: using non-specified fittings may void approvals or manufacturer warranty. If all the above are confirmed by engineering checks or supplier documentation, an alternative clamp/sleeve can be used. Otherwise, use the specified RS shell clamp or TI-LR / TI-LDR to ensure proper fit, seal and compliance.

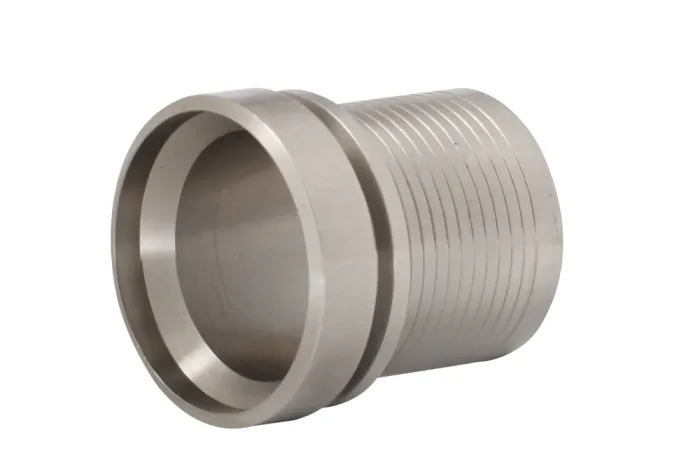

Spigot for welding for flange, steel AISI 304, type WRS

All products, Flange couplings/

Additional information

Material	SS – stainless steel
Standard length [m]	2, 6

A weld-on spigot, type WRS, for an EN 1092-1 PN16 flange, for mounting with an RS shell clamp or for crimping with a TI-LR, TI-LDR ferrule. Material: steel AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TK-WRS-015-013-SS	Spigot for welding (RS) DN15 for 13 mm hose, AISI 304	12	25	In stock	Enquiry
TK-WRS-020-019-SS	Spigot for welding (RS) DN20 for 19 mm hose, AISI 304	20	25	In stock	Enquiry
TK-WRS-025-025-SS	Spigot for welding (RS) DN25 for 25 mm hose, AISI 304	25	25	In stock	Enquiry
TK-WRS-032-032-SS	Spigot for welding (RS) DN32 for 32 mm hose, AISI 304	32	25	In stock	Enquiry
TK-WRS-040-038-SS	Spigot for welding (RS) DN40 for 38 mm hose, AISI 304	38	25	In stock	Enquiry
TK-WRS-040-040-SS	Spigot for welding (RS) DN40 for 40 mm hose, AISI 304	40	25	In stock	Enquiry
TK-WRS-050-050-SS	Spigot for welding (RS) DN50 for 50 mm hose, AISI 304	50	25	In stock	Enquiry
TK-WRS-050-051-SS	Spigot for welding (RS) DN50 for 51 mm hose, AISI 304	50	25	In stock	Enquiry
TK-WRS-065-063-SS	Spigot for welding (RS) DN65 for 63 mm hose, AISI 304	65	25	In stock	Enquiry
TK-WRS-065-065-SS	Spigot for welding (RS) DN65 for 65 mm hose, AISI 304	65	25	In stock	Enquiry
TK-WRS-080-076-SS	Spigot for welding (RS) DN80 for 76 mm hose, AISI 304	75	25	In stock	Enquiry
TK-WRS-080-080-SS	Spigot for welding (RS) DN80 for 80 mm hose, AISI 304	80	25	In stock	Enquiry
TK-WRS-100-100-SS	Spigot for welding (RS) DN100 for 100 mm hose, AISI 304	100	25	In stock	Enquiry
TK-WRS-100-102-SS	Spigot for welding (RS) DN100 for 102 mm hose, AISI 304	100	25	In stock	Enquiry
TK-WRS-125-125-SS	Spigot for welding (RS) DN125 for 125 mm hose, AISI 304	125	25	In stock	Enquiry
TK-WRS-125-127-SS	Spigot for welding (RS) DN125 for 127 mm hose, AISI 304	125	25	In stock	Enquiry
TK-WRS-150-150-SS	Spigot for welding (RS) DN150 for 150 mm hose, AISI 304	150	25	In stock	Enquiry
TK-WRS-150-152-SS	Spigot for welding (RS) DN150 for 152 mm hose, AISI 304	150	25	In stock	Enquiry
TK-WRS-200-200-SS	Spigot for welding (RS) DN200 for 200 mm hose, AISI 304	200	25	In stock	Enquiry
TK-WRS-200-203-SS	Spigot for welding (RS) DN200 for 203 mm hose, AISI 304	200	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A weld-on spigot, type WRS, for an EN 1092-1 PN16 flange, for mounting with an RS shell clamp or for crimping with a TI-LR, TI-LDR ferrule. Material: steel AISI 304.
