Is ESSEN LLÂ® cooling water suction and discharge hose safe for short-term splashes of molten metal and exposure to external temperatures up to +530Â°C?

Yes. ESSEN LLÂ® cooling water suction and discharge hose is safe for short-term splashes of molten metal and for exposure to external temperatures up to +530Â°C. The hose is specifically designed for foundries and smelters: it features a glass-fiber outer covering that withstands thermal radiation up to +530Â°C and is explicitly described as resistant to short-term splashes of molten hot metal. Internally it has SBR rubber, synthetic cord and steel spiral reinforcement, and an EPDM/glass-fiber outer layer, making it suitable for cooling systems and water installations located close to metallurgical furnaces. Note that the continuous operating temperature range of the hose is â40Â°C to +70Â°C (internal), with external temperatures tolerated up to +530Â°C, and its working pressure is 10 bar with vacuum rating 0.9 bar.

Can ESSEN LLÂ® cooling water suction and discharge hose be used continuously near metallurgical furnaces at +70Â°C internal temperature?

Yes. ESSEN LLÂ® cooling water suction and discharge hose is designed for continuous operation with internal temperatures up to +70Â°C (operating range -40Â°C to +70Â°C). Its black SBR rubber inner layer, synthetic cord/steel spiral reinforcement and EPDM/glass-fiber outer cover make it suitable for cooling water systems near metallurgical furnaces. The glass fiber outer covering provides protection against thermal radiation up to +530Â°C and short-term splashes of molten metal, and the hose is particularly recommended for water installations close to furnaces. Working pressure 10 bar, vacuum 0.9 bar.

Can ESSEN LLÂ® cooling water suction and discharge hose withstand suction/vacuum conditions down to 0.9 bar?

Yes. The ESSEN LLÂ® cooling water suction and discharge hose is vacuum-resistant and rated for vacuum conditions down to 0.9 bar (relative), so it can withstand suction/vacuum levels to that value. Its constructionâblack SBR inner layer, synthetic cord and steel spiral reinforcement, and EPDM/glass-fiber outer layerâsupports use in cooling systems near high heat sources and metallurgical furnaces, with working pressure 10 bar and operating temperatures â40Â°C to +70Â°C (external heat resistance up to +530Â°C).

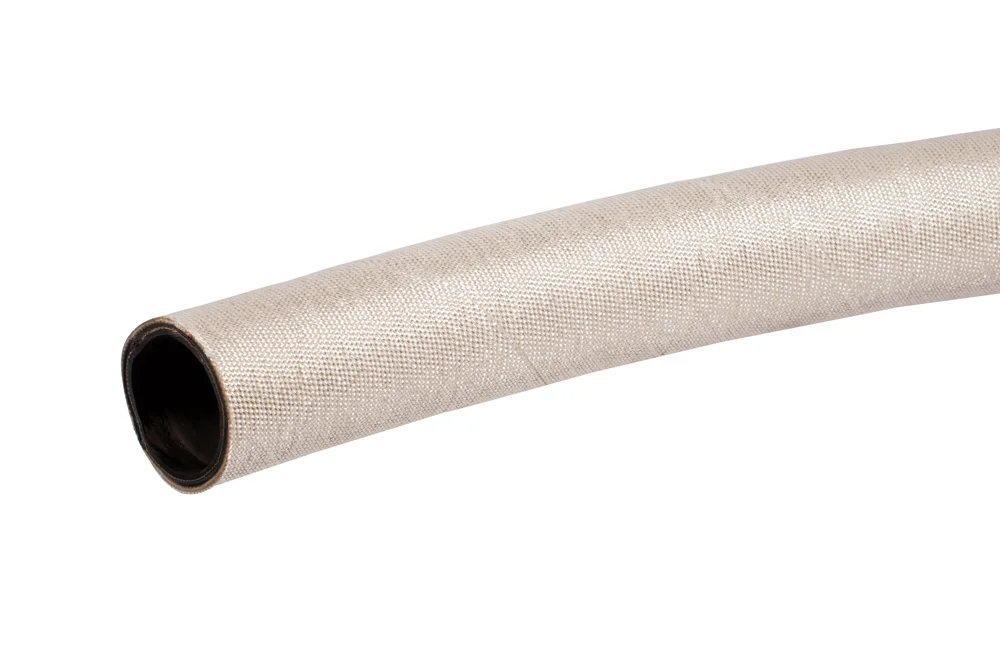

Hose suction-delivery for water cooling ESSEN LL®

Air and water hoses, All products/

Additional information

Material	SBR – styrene-butadiene rubber
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	yes
Standard length [m]	60, 60 / 120
Reinforcement	steel spiral, synthetic cover

Resistant to vacuum hose suction-delivery intended for water cooling in smelters, foundries and we all use, where hose rubber works close source heat. coated fiber glass resistant to temperature up to +530°C caused radiation thermal. used in systems cooling. especially recommended for installation water at furnaces metallurgical. resistant to momentary action splashes red-hot hot metal. length standard: 60 m or 120 m. Inner layer: black rubber SBR. Reinforcement: cord synthetic, steel spiral. Outer layer: EPDM rubber / fiber glass. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: od -40°C up to +70°C, outer up to +530°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
IV-ESSEN-LL-012	Hose ESSEN LL 12x22.5 mm	12	10	In stock	Enquiry
IV-ESSEN-LL-019	Hose ESSEN LL 19x30.5 mm	20	10	In stock	Enquiry
IV-ESSEN-LL-025	Hose ESSEN LL 25x36.5 mm	25	10	In stock	Enquiry
IV-ESSEN-LL-032	Hose ESSEN LL 32x43 mm	32	10	In stock	Enquiry
IV-ESSEN-LL-038	Hose ESSEN LL 38x50.5 mm	38	10	In stock	Enquiry
IV-ESSEN-LL-051	Hose ESSEN LL 51x63.5 mm	50	10	In stock	Enquiry
IV-ESSEN-LL-065	Hose ESSEN LL 65x78.5 mm	65	10	In stock	Enquiry
IV-ESSEN-LL-076	Hose ESSEN LL 76x91.5 mm	75	10	In stock	Enquiry
IV-ESSEN-LL-102	Hose ESSEN LL 102x119.5 mm	100	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Resistant to vacuum hose suction-delivery intended for water cooling in smelters, foundries and we all use, where hose rubber works close source heat. coated fiber glass resistant to temperature up to +530°C caused radiation thermal. used in systems cooling. especially recommended for installation water at furnaces metallurgical. resistant to momentary action splashes red-hot hot metal. length standard: 60 m or 120 m. Inner layer: black rubber SBR. Reinforcement: cord synthetic, steel spiral. Outer layer: EPDM rubber / fiber glass. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: od -40°C up to +70°C, outer up to +530°C.

Additional information

Material	SBR – styrene-butadiene rubber
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	yes
Standard length [m]	60, 60 / 120
Reinforcement	steel spiral, synthetic cover
