Is the Tee fitting T, stainless steel, compatible with hydraulic systems using 24Â° DIN 2353 sockets and external metric threads in both L and S series?

Yes. The Tee fitting T, stainless steel Format described (24Â° DIN 2353 socket with external metric threads; available in L light series and S heavy series; material AISI 316) is designed specifically for use with hydraulic systems that employ 24Â° DIN 2353 sockets and external metric threads. Both L (light) and S (heavy) series conform to the DIN 2353 standard form and thread interfaces, so they will mate correctly with corresponding 24Â° DIN 2353 components. Choose L or S based on required pressure rating and mechanical robustness (S for higher duty). Ensure correct thread size and tightening/assembly procedure per DIN 2353 and verify pressure rating and corrosion/temperature compatibility of AISI 316 for your application.

Can the Tee fitting T, stainless steel, withstand corrosive fluids and marine environments in L and S series?

Tee fitting T, stainless steel Format: Yes. Made of AISI 316 (marine-grade) stainless steel, the DIN 2353 Tee fitting T in both L (light) and S (heavy) series offers good general resistance to corrosive fluids and marine environments. AISI 316 contains molybdenum, improving chloride and pitting resistance vs. 304. S series (heavy) provides greater wall thickness and mechanical robustness, offering longer service life in aggressive or erosive conditions; L series is lighter and adequate for less severe exposures. Limitations: 316 resists many but not all chemicals (strong reducing acids, halides at high concentration/temperature, and certain chlorinated solvents can attack it). For highly aggressive media, higher-alloy materials (e.g., duplex or 6Mo) or special coatings should be considered.

Does the Tee fitting T, stainless steel, meet pressure ratings for L and S series per DIN 2353?

Yes. The Tee fitting T, stainless steel (24Â° DIN 2353 socket with external metric threads, material AISI 316) is available in L (light) and S (heavy) series per DIN 2353. When manufactured and marked to DIN 2353 specifications, each series is designed to meet the corresponding pressure ratings defined in the standard: the L series provides the lower (light) pressure class and the S series provides the higher (heavy) pressure class for the same nominal diameters. Therefore, Tee fitting T, stainless steel meets the pressure ratings for both L and S series as long as the specific part is produced and certified to the DIN 2353 L or S series specification and used within the applicable nominal size and operating conditions.

Tee fitting T, stainless steel

Additional information

Material	SS – stainless steel

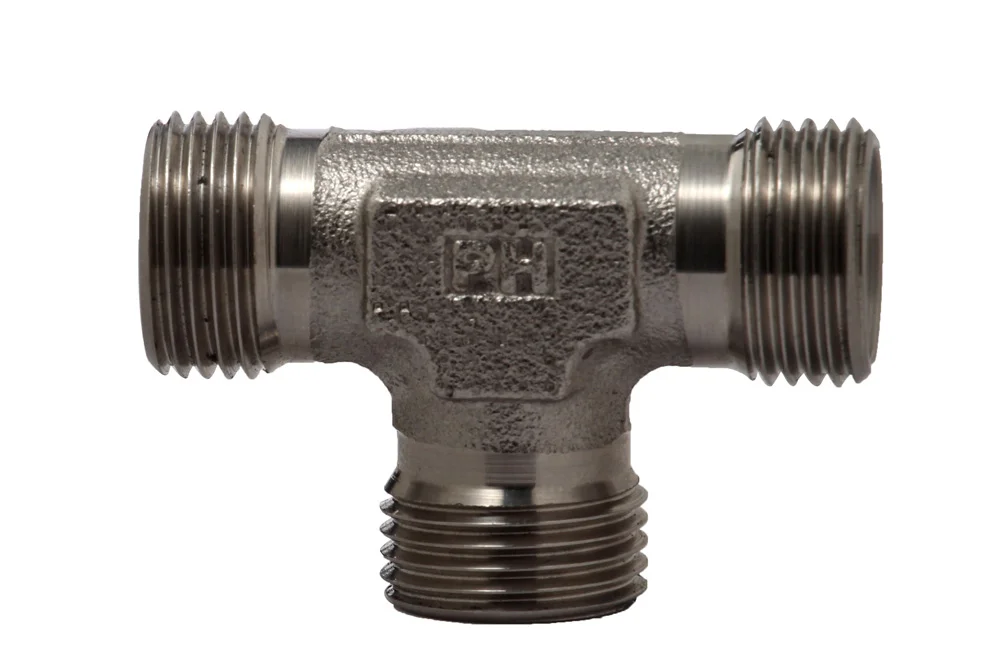

DIN 2353 tee fitting, type T: 24° DIN 2353 socket with external metric threads. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-T-06L-SS	DIN 2353 fitting T 6L, AISI 316	-	500	In stock	Enquiry
HD-T-06S-SS	DIN 2353 fitting T 6S, AISI 316	-	800	In stock	Enquiry
HD-T-08L-SS	DIN 2353 fitting T 8L, AISI 316	-	500	In stock	Enquiry
HD-T-08S-SS	DIN 2353 fitting T 8S, AISI 316	-	800	In stock	Enquiry
HD-T-10L-SS	DIN 2353 fitting T 10L, AISI 316	-	500	In stock	Enquiry
HD-T-10S-SS	DIN 2353 fitting T 10S, AISI 316	-	800	In stock	Enquiry
HD-T-12L-SS	DIN 2353 fitting T 12L, AISI 316	-	400	In stock	Enquiry
HD-T-12S-SS	DIN 2353 fitting T 12S, AISI 316	-	630	In stock	Enquiry
HD-T-14S-SS	DIN 2353 fitting T 14S, AISI 316	-	630	In stock	Enquiry
HD-T-15L-SS	DIN 2353 fitting T 15L, AISI 316	-	400	In stock	Enquiry
HD-T-16S-SS	DIN 2353 fitting T 16S, AISI 316	-	630	In stock	Enquiry
HD-T-18L-SS	DIN 2353 fitting T 18L, AISI 316	-	400	In stock	Enquiry
HD-T-20S-SS	DIN 2353 fitting T 20S, AISI 316	-	420	In stock	Enquiry
HD-T-22L-SS	DIN 2353 fitting T 22L, AISI 316	-	250	In stock	Enquiry
HD-T-25S-SS	DIN 2353 fitting T 25S, AISI 316	-	420	In stock	Enquiry
HD-T-28L-SS	DIN 2353 fitting T 28L, AISI 316	-	250	In stock	Enquiry
HD-T-30S-SS	DIN 2353 fitting T 30S, AISI 316	-	420	In stock	Enquiry
HD-T-35L-SS	DIN 2353 fitting T 35L, AISI 316	-	250	In stock	Enquiry
HD-T-38S-SS	DIN 2353 fitting T 38S, AISI 316	-	420	In stock	Enquiry
HD-T-42L-SS	DIN 2353 fitting T 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 tee fitting, type T: 24° DIN 2353 socket with external metric threads. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
