Teflon hose with AISI 304 steel braid and EPDM rubber protection layer, HYPERLINE FX

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

140

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid

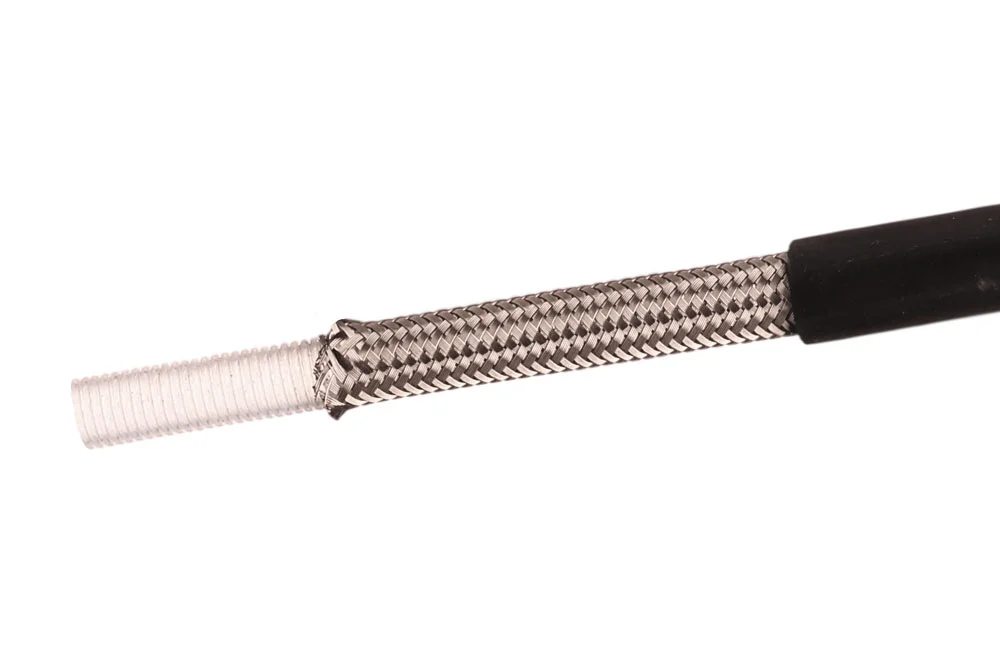

The Hyperline FX SS RC BLACK hose is a lightweight, flexible Teflon hose, featuring an additional outer layer made of black, antistatic, and flame-retardant EPDM rubber, meeting the requirements for railway vehicles EN 45545. This provides extra protection for the braid and hose against damage and allows for easy cleaning of the hose. Due to its properties, it is recommended for use in the industrial sector and mechanical vehicles. The hose can be supplied without fittings or as complete assemblies ready for installation. Hose material: smooth on the inside, corrugated PTFE (Teflon) on the outside. Reinforcement: single braid of AISI 304 steel with an additional protective layer of EPDM rubber. Working pressure: from 50 bar to 110 bar, depending on the hose diameter. Operating temperature: from -40°C to +140°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
AF-FXSS-06-RC-BK-EN45545HYPERLINE FX 1/4" hose, steel braid, black EPDM EN45545-110In stock
Enquiry
AF-FXSS-10-RC-BK-EN45545HYPERLINE FX 3/8" hose, steel braid, black EPDM EN45545-100In stock
Enquiry
AF-FXSS-13-RC-BK-EN45545HYPERLINE FX 1/2" hose, steel braid, black EPDM EN45545-75In stock
Enquiry
AF-FXSS-16-RC-BK-EN45545HYPERLINE FX 5/8" hose, steel braid, black EPDM EN45545-62In stock
Enquiry
AF-FXSS-19-RC-BK-EN45545HYPERLINE FX 3/4" hose, steel braid, black EPDM EN45545-52In stock
Enquiry
AF-FXSS-25-RC-BK-EN45545HYPERLINE FX 1" hose, steel braid, black EPDM EN45545-50In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The Hyperline FX SS RC BLACK hose is a lightweight, flexible Teflon hose, featuring an additional outer layer made of black, antistatic, and flame-retardant EPDM rubber, meeting the requirements for railway vehicles EN 45545. This provides extra protection for the braid and hose against damage and allows for easy cleaning of the hose. Due to its properties, it is recommended for use in the industrial sector and mechanical vehicles. The hose can be supplied without fittings or as complete assemblies ready for installation. Hose material: smooth on the inside, corrugated PTFE (Teflon) on the outside. Reinforcement: single braid of AISI 304 steel with an additional protective layer of EPDM rubber. Working pressure: from 50 bar to 110 bar, depending on the hose diameter. Operating temperature: from -40°C to +140°C.

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

140

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

2

Reinforcement

steel braid
